Smith Meter UPT - Maintenance and Mechanical Procedures; Mechanical Maintenance Steps

Issue/Rev. 0.7 (11/17)
Page 4 • MN01045

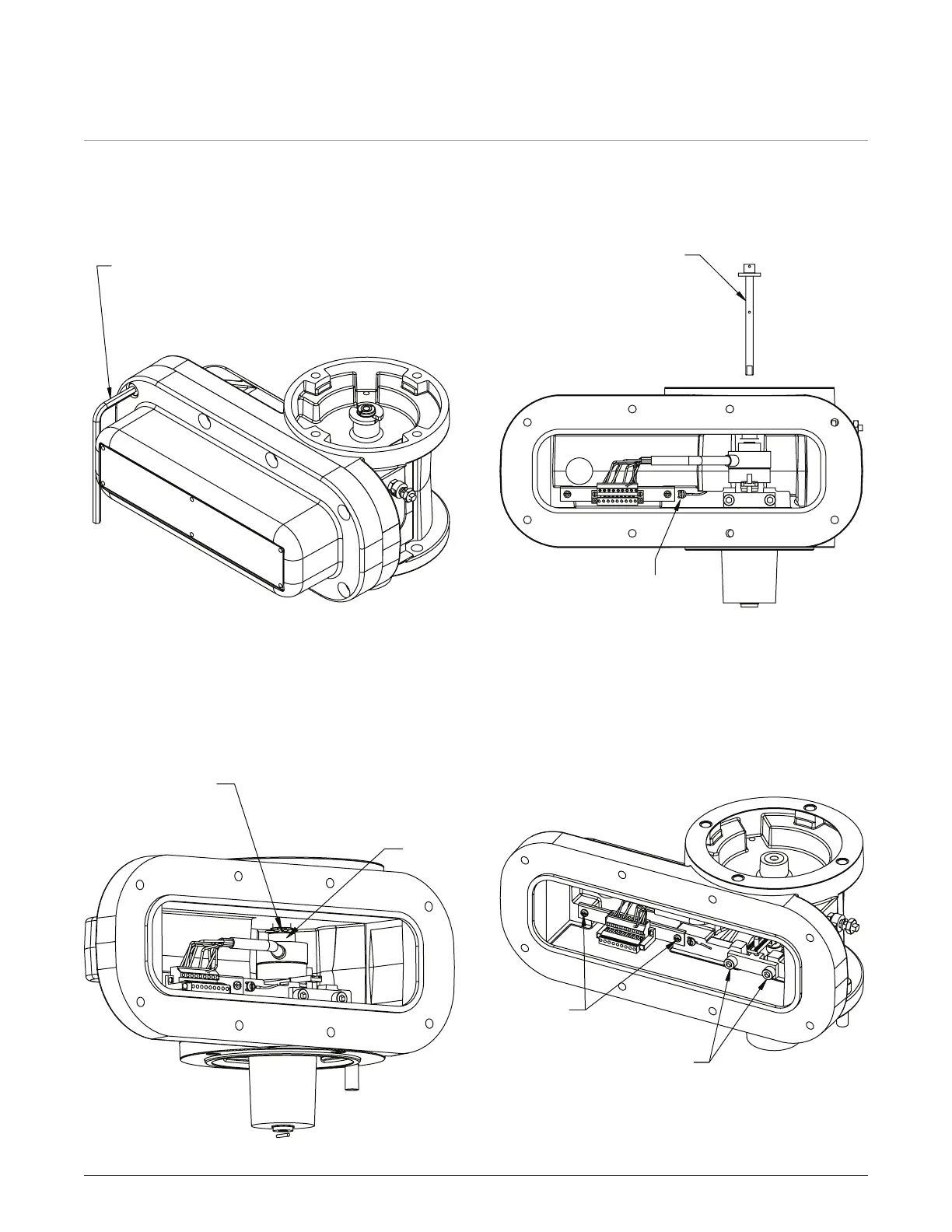

Mechanical Maintenance to Transmitter
Step 1. Remove the eight cover screws and tap the
cover to break the seal.
Step 1
2
1
4
5
6
7
8
9
Step 2a
Step 2b
8
9
7
9
5
4
1
2
step 3
Step 4. a. Remove terminal block bracket from
enclosure.
b. Remove screws holding T-Bar in place.
1
2
3
4
5
6
7
8
9
9
8
7
6
5
4
3
2
1
Step 4a
Step 4b
Step 3. Remove the coupling and pull the shaft out.
Step 2. a. Remove hairspring cotter pin from the
bottom of the shaft.
b. Loosen the set screws at the top of the
encoder inside the housing.
Maintenance
The UPT Transmitter has all self-lubricating bearings and a sealed transmitter assembly so preventative
maintenance is not required.
