SMITH SYSTEM LS 541N - Hardware Charts; Assembly Hardware

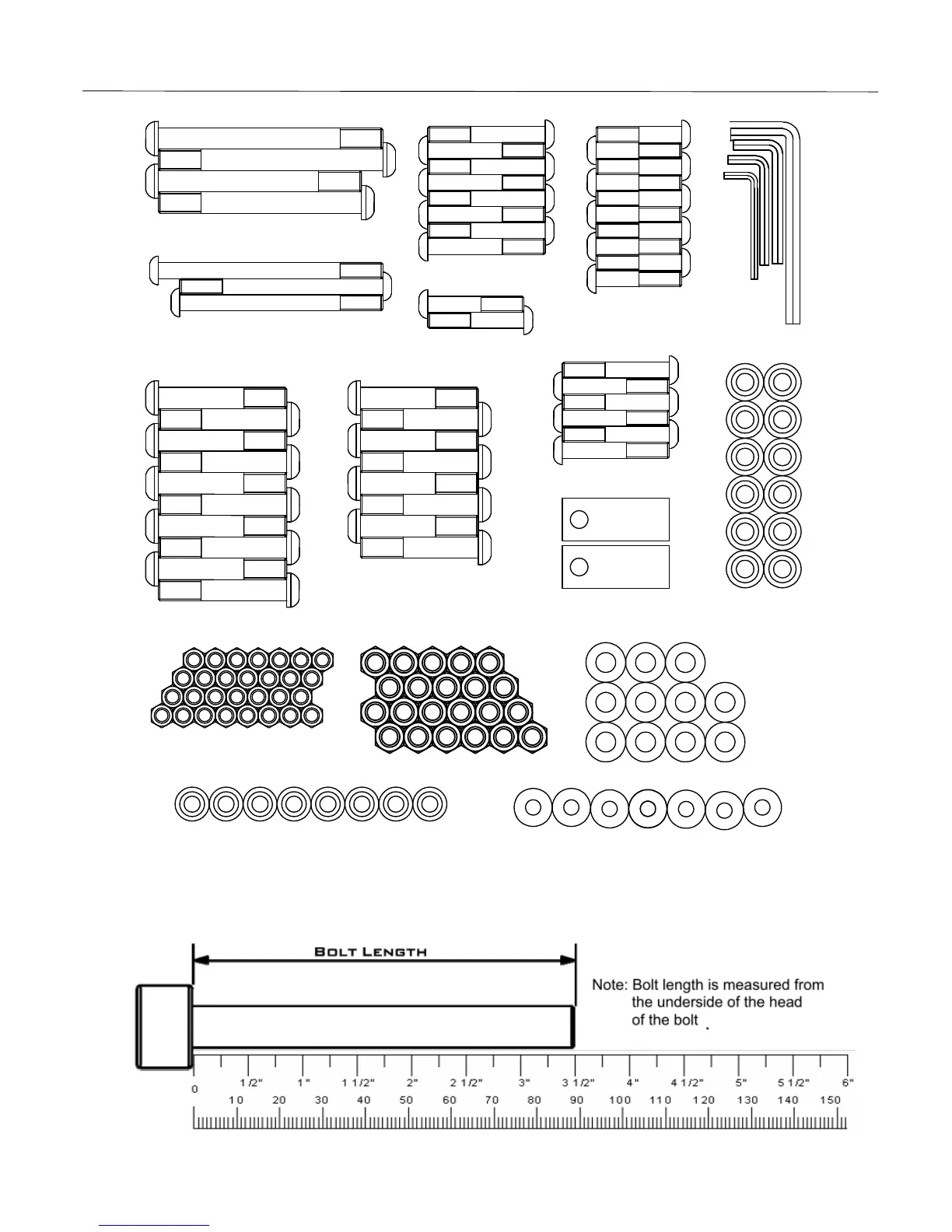

HARDWARE CHART
A SSEMBLY HARDWARE
Page 2
Button Head Allen Screw
1/2"-13UNC
× 3"L
(10PCS)
Button Head Allen Screw
1/2 "- 13 UNC ×2 3/4 "L
(8PCS)
(2PCS)
Clevis 25.4
× 63.5L
(12PCS)
Step Spacer 16.2
× 10.1 × 9H
Button Head Allen Screw
3/8"-16UNC
× 2 3/4"L
Button Head Allen Screw
3/8"-16UNC
× 2 1/4"L
Button Head Allen Screw
3/8 "-1 6 UNC ×4 3/4 "L
Button Head Allen Screw
1/2"-13UNC
× 4 3/4 "L
Button Head Allen Screw
3/8 "-1 6 UNC ×5 1/4 "L
(1PC)
(2PCS)
Button Head Allen Screw
1/2"-13UNC
× 5 1/4 "L
(2PCS)
( 2 PCS)
(2PCS)
(8PCS)
Button Head Allen Screw
3/8"-16UNC
× 2 "L
Button Head Allen Screw
3/8"-16UNC
× 2 1/2"L
(10PCS)
(6PCS)
(1PC)
(1PC)
Allen Wrench M6
(1PC)
Allen Wrench M
8
Allen Wrench M5
(1PC)
Allen Wrench M4
Nylon Nut 3/8"-16UNC×11t
Step Spacer 16.2×10.1×12.5H
(29PCS)
(4PCS)
Step Spacer 16.2×10.1×14H
(4PCS)
(22PCS)
Nylon Nut
1/2"-13UNC×12t
Flat Washer
26×13×2.0t
(38PCS)
Flat Washer
25×10×2.0t
(44PCS)
Note: Hardware and assembly tools are not shown at actual size. Certain assembly hardware may not be referenced
in the chart above. For easier assembly some hardware may be preinstalled in the assembly locations of the product.
Please reference the itemized parts listing and individual assembly steps for additional hardware information.
