SMITH SYSTEM LS 541N - Cable Pulley Assembly; Orientation

CABLE PULLEY ASSEMBLY /ORIENTATION
Assembly Hardware Required:
#36
Button Head Allen Screw Qty. 4 #43 Nylon Nut Qty.22
#37 Button Head Allen Screw Qty. 2 #49 Step Spacer Qty. 4
#38
Button Head Allen Screw Qty. 6 #50 Step Spacer Qty.12
#39 Button Head Allen Screw Qty.10 #51 Step Spacer Qty. 2
#41 Flat Washer Qty.24
Assembly Description:

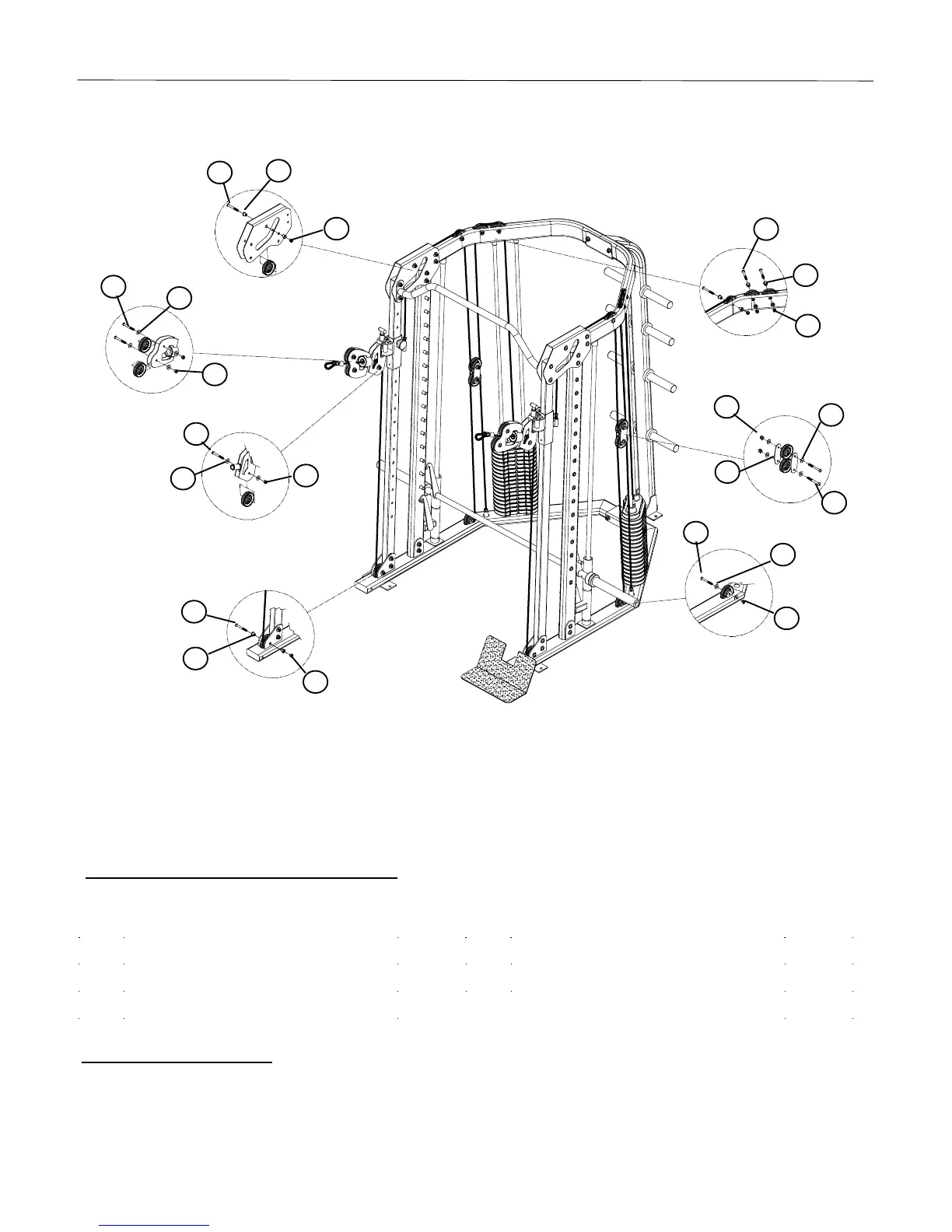

Follow the assembly orientation and reference the hardware call-out# shown for each pulley location.
Loosely mount all the pulleys in position so that they may be easily removed for cable routing
assembly.
Assembly Note: The 3.5inch Cable Pulley (#53) must be positioned assembly locations.
