SMITH SYSTEM LS 541N - Assembly Stage 4

ASSEMBLY INSTRUCTIONS
Assembly Stage #4
Assembly Hardware Required:
#32
Button Head Allen Screw Qty. 4 #40 Flat Washer Qty.8
#42 Nylon Nut Qty. 4
Assembly Description:

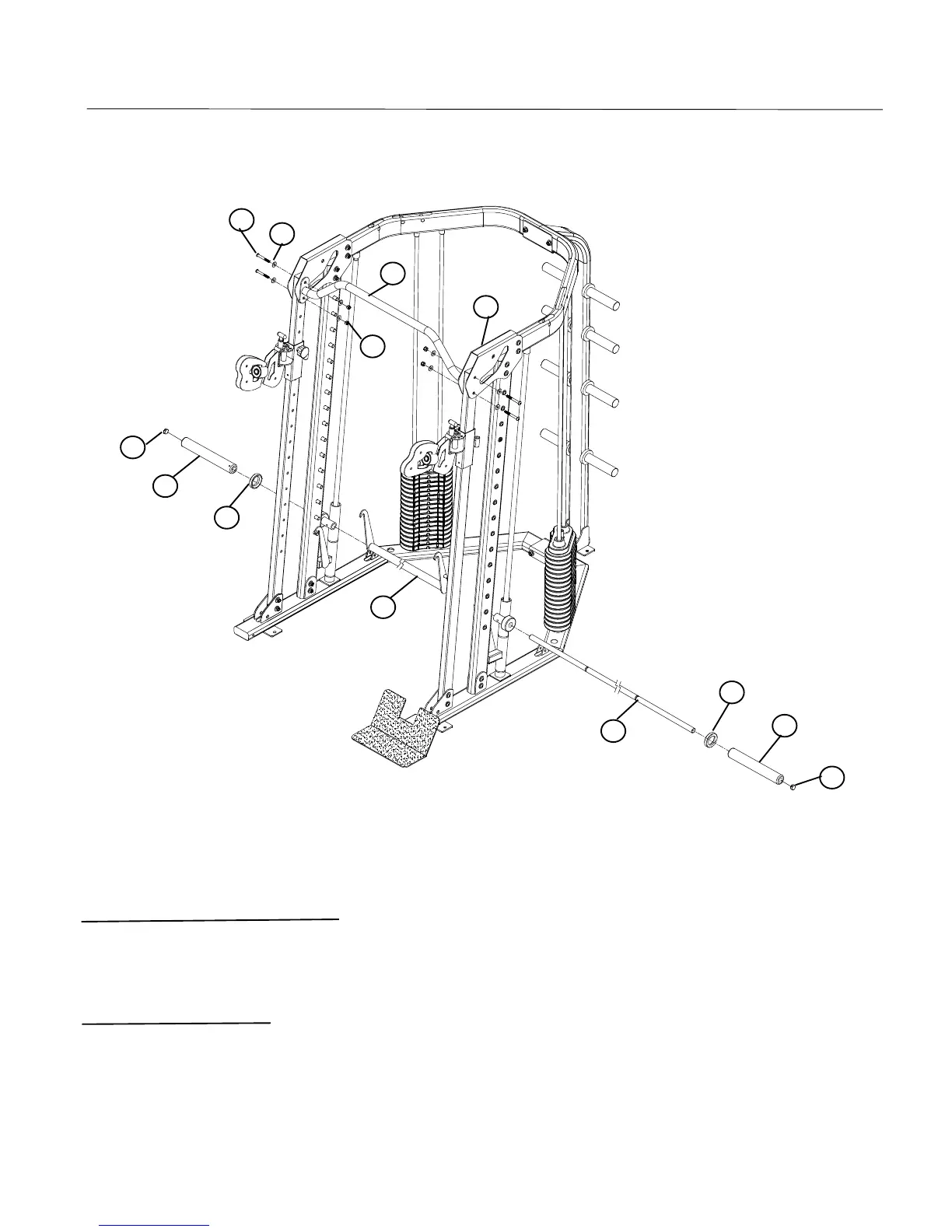

A) Assemble the Top Bar (#14) to the Top Beam (#17) using 4 – Button Head Allen Screws (#32), 8
- Flat Washers
(
#40
)
and 4 – Nylon Nuts
(
#42
)
as shown.
B) SECRULY insert the Olympic Bar Shaft (#26) into the Olympic Bar (#25) and slide 1 – Bumper
(#45),1 – Plastic Sleeve (#48) and 1 – Inside Bumper (#47) on per side as shown.
Page 10
32
40
19
48
45
25
26
19
19
19
17
14
42
