8 SERIES BOILER INSTALLATION AND OPERATING INSTRUCTIONS
Page 11

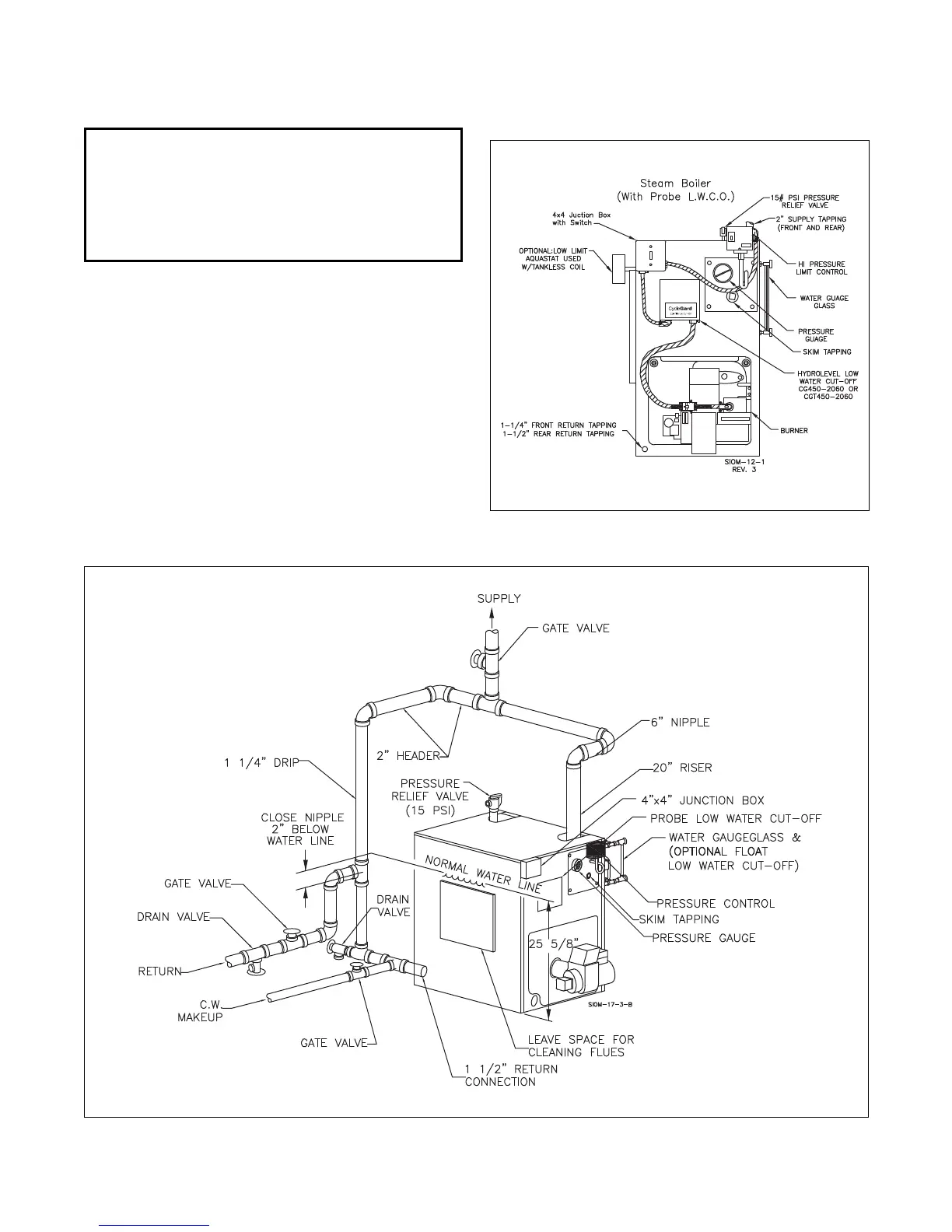

Figure No. 11 - Piping Connections Steam (3-5 Sections)
STEAM
BOILERS
STEAM BOILER TRIM
The steam trim furnished with the boiler consists of:
a 2-1/2" round steam pressure gauge, a Hydrolevel
CG450-2060 or a CGT450-2060 probe style low water
cut-off, water gauge glass set with gauge cocks, side
outlet steam safety valve, and high pressure limit control
with siphon, refer to Figure 10 for correct control and
trim locations. Pipe fi ttings required to install trim and
controls as shown are furnished.
