Smith GBX 70 - Manifold;Gas Train

35
INSTALLATION AND OPERATING INSTRUCTIONS
Table 11.2: Manifold/Gas Train (Standing Pilot)
*For elevations over 2,000 feet above sea level contact manufacturer.
Item
No.
Description
Part Selection
Information
70 105 140 175 195
5 Steel Burner Specify quantity 51537 51537 51537 51537 51537
6 Steel Burner w/ Pilot Clip 1 per boiler 51263 51263 51263 51263 51263
7 Gas Manifold 50978 50979 50980 50981 50954
8 Orifice Spud, #48
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
50894 50894 50894 50894 —
Orifice Spud, #49
Natural Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)*
— — — — 50895
Orifice Spud, #56
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
50899 50899 50899 50899 —
Orifice Spud, #57
LP Gas, 0-2000 ft. (0-610 m)
elevation (specify qty)
— — — — 50900
9 Honeywell VR8200A2116 Gas Valve Natural Gas 50581 50581 50581 — —
Honeywell VR8200C6040 Gas Valve LP Gas 50221 50221 50221 — —
Honeywell VR8300A4003 Gas Valve Natural Gas — — — 50587 50587
Honeywell VR8300C4035 Gas Valve LP Gas — — — 91333 91333
10 Honeywell Q314A3679 Pilot Natural Gas 51688 51688 51688 51688 51688
Honeywell Q314A3703 Pilot LP Gas 50554 50554 50554 50554 50554
11 Johnson K16BA-24D Thermocouple 50838 50838 50838 50838 50838

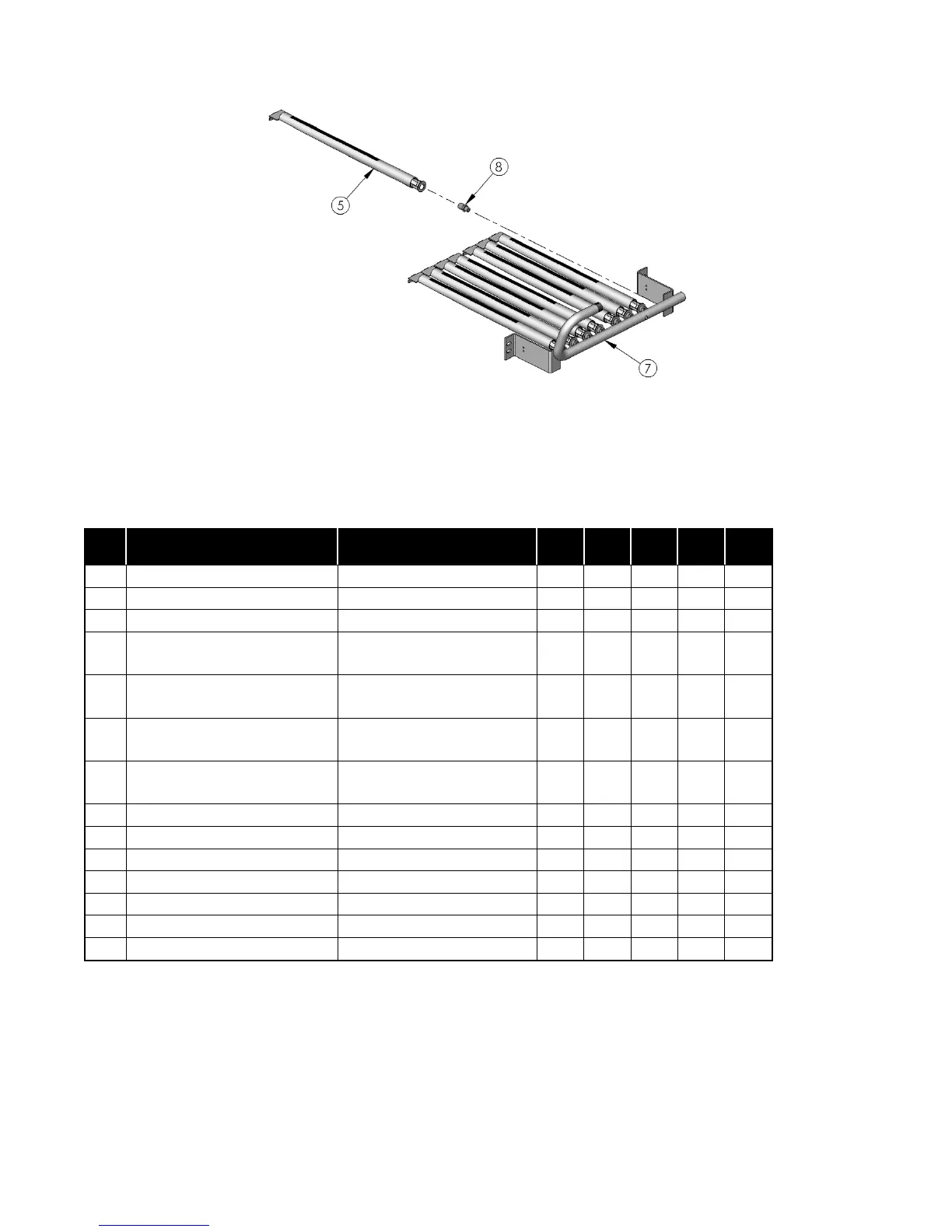

Figure 11.2:Manifold
