TRAK MODEL 9100 MODULAR FREQUENCY/TIME SYSTEM
TM4400013 E-6 REV. D
1-6 Antenna used in 5 Vdc systems (TFS part number 4702337)
This antenna is identified by the N female connector on the antenna base and a mast adapter attached to the
antenna base with four screws, see Figure 2. This antenna is used with TFS model 9100.

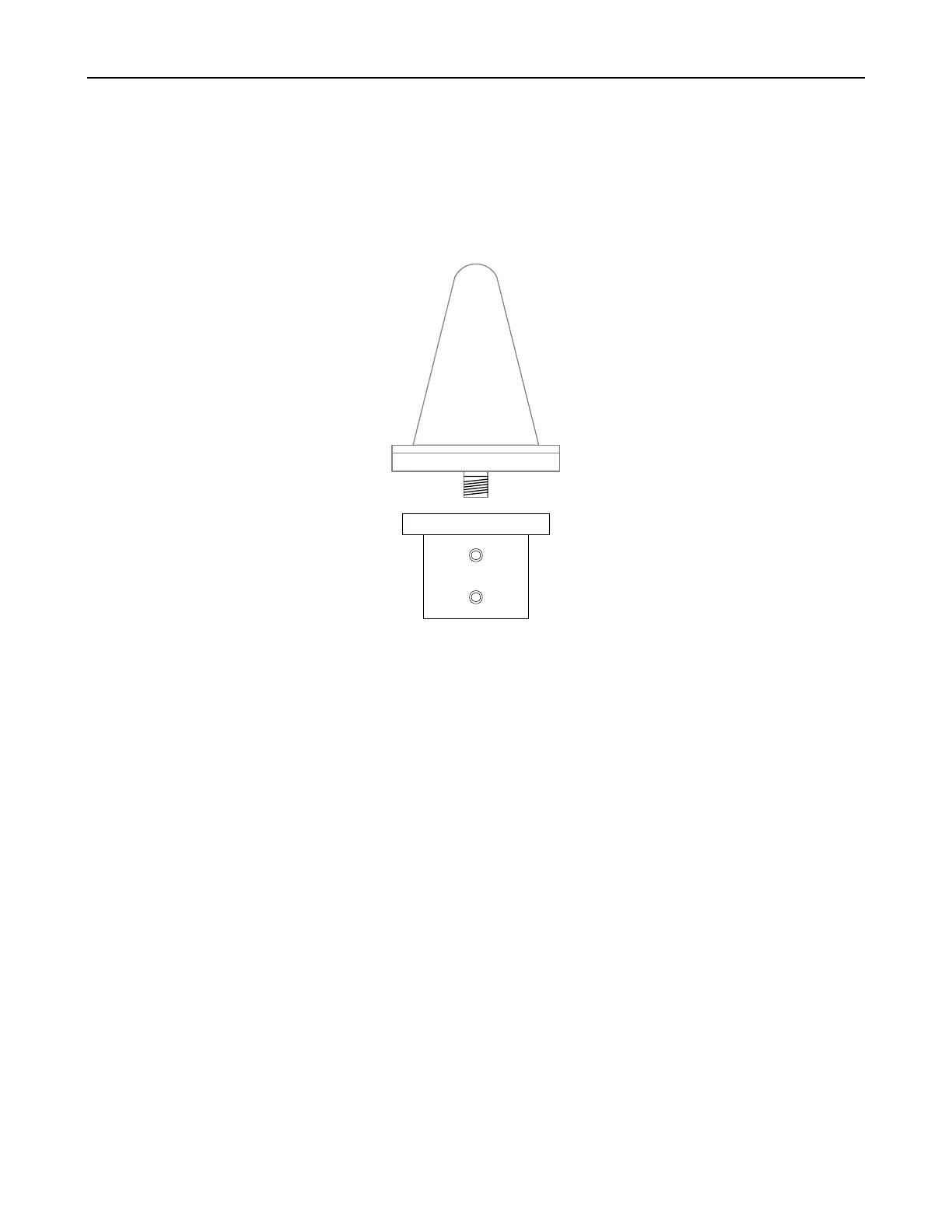

Figure 2, 5 volt antenna
1-6-1 Antenna and Mast Adapter Assembly
Pass the coaxial cable with male N connector through the mast adapter and connect the cable to the antenna
connector. Attach the mast adapter to the base of the antenna with the four captive screws provided. Refer to
Figure 2.
1-6-2 Antenna Mounting
The mast adapter accepts a mast in the 1.5 to 1.7 inches diameter range. The mast is not supplied due to the
wide variety of mounting requirements in field installations.
