BACK FEED PROTECTION
PROPERLY RECYCLE BATTERY
DO NOT THROW IN GARBAGE
BC
CALIFORNIA - TITLE 20
COMPLIANT
Battery Pack Specifications
Type
CTB8172BK/CTB8174 ........................ Lithium-Ion
Voltage
CTB8172BK/CTB8174 ............................ 14.4 VDC
Weight
CTB8172BK/CTB8174 ............... ~0.51 lb (0.23 kg)
Charge Time
CTB8172BK .............................................~55 min
CTB8174 .................................................. ~70 min
Life
CTB8172BK/CTB8174 ........................1000 cycles
Note: 1 cycle= 1 charge and 1 discharge
Capacity
CTB8172BK ..............................................2.0 A•H
CTB8174 ................................................... 2.5 A•H
Discharge Temperature Range
CTB8172BK/CTB8174 ...........................................
................................-4°F (-20°C) to 140°F (60°C)
Operation
AC Cord and Plug
requirement
1. Cord rating
— 120V, 10A, Type: SPT-2, 18AWG (for use with
100-120Vac, for use with UL or JIS plug)
— 240V, 2.5A, Type: H03VVH2-F, 2X0.75mm or
equivalent (for use with 220-240Vac,for use with
VDE, BS, SAA or Kor plug only)
2. Cord length: min.1.8m (6 feet); max. 6.1m (20 feet)
including output cord.
3. Cord type: must comply with requirement set out by
the safety approval / Certification Organization of each
country of use.
Employ a plug in shape and ratings according to
the alternate voltage and matched with AC outlet
to be used. Refer to the following table:
PLUG
TYPE
PLUG
RATING
INPUT
VOLTAGE
POWER PLUG
SHAPE
UL
5A,
125VAC
AC 120V,
60Hz
VDE
2.5A,
250VAC
AC 230V,
50Hz
SAA
7.5A,
250VAC
AC
220-240V,
50Hz
BS
3A,
250VAC
AC
220-240V,
50Hz
KOR
2.5A,
250VAC
AC 220V,
50Hz
JIS
7A,
125VAC
AC 100V,
60Hz

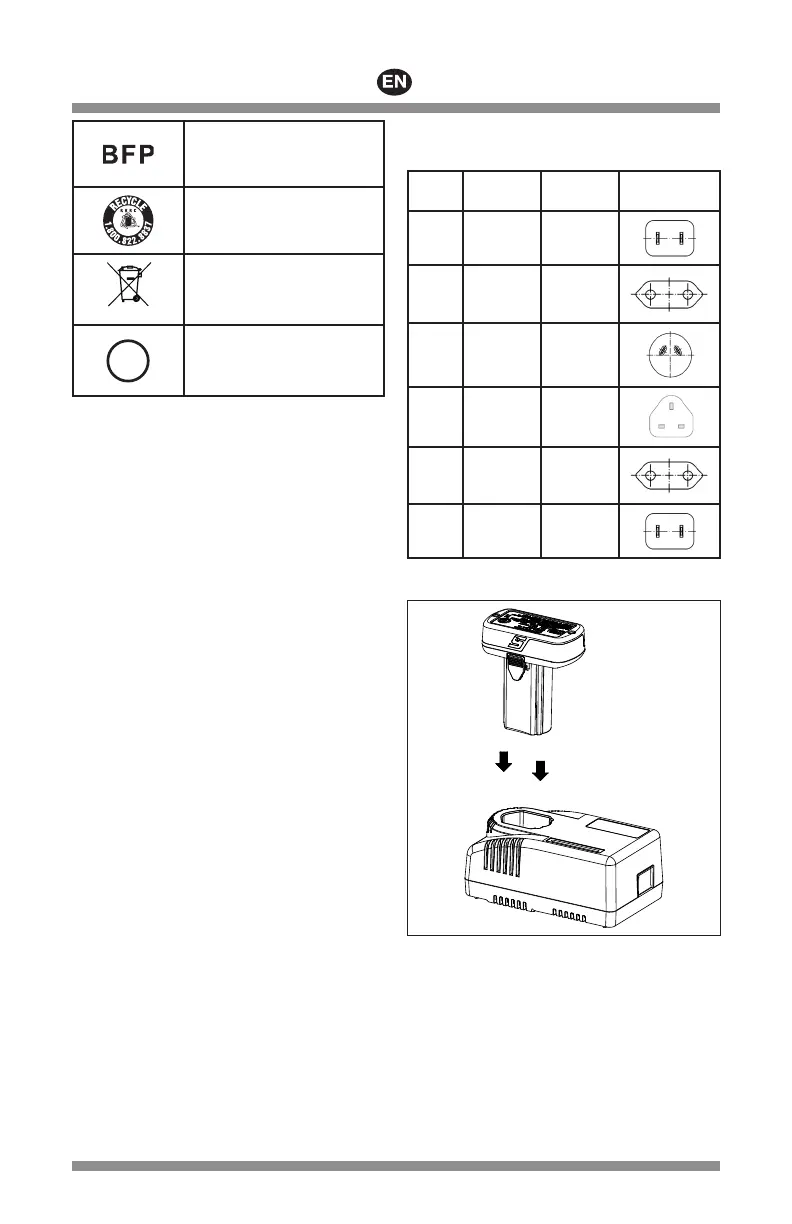

Figure 2: Inserting the Battery Pack into the Charger
Battery Charging
1. If charger is supplied with a separate charger cord,
plug cord into charger.
2. Plug the other end of charger into the AC power source.
3. Insert battery pack in charger. Press lightly on battery
pack until it stops. The charger is equipped with a
4-LED fuel gauge that indicates 25%, 50%, 75% and
100% state of charge. When the battery makes
contact, all 4 green LEDs on the fuel gauge of the

Snap-On CTC772A Series Specifications

General

Brand	Snap-On
Model	CTC772A Series
Category	Battery Charger
Language	English
