Snap-On FJ400 - PARTS DRAWING AND PARTS LIST

FJ400 11 Rev. 07/23/18

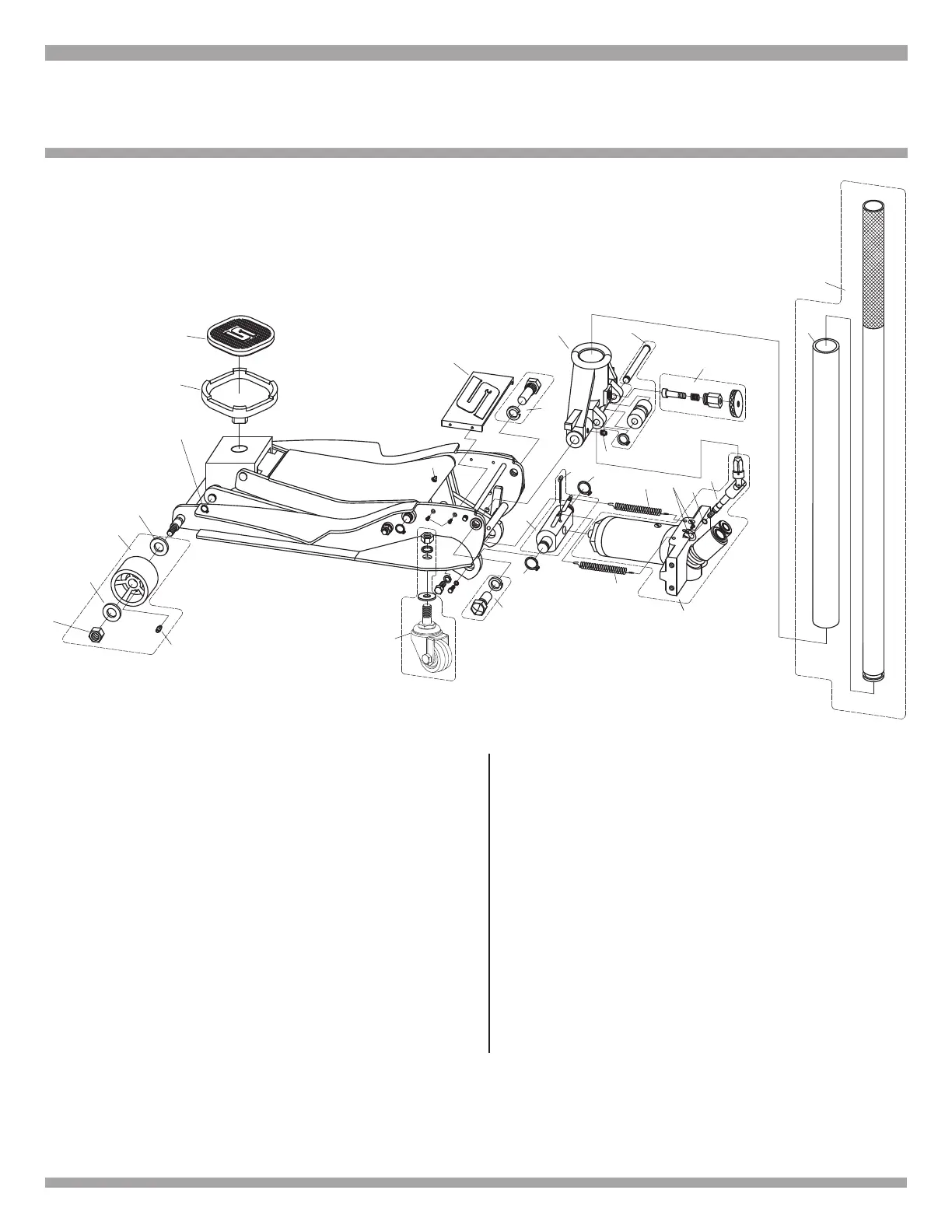

PARTS DRAWING AND PARTS LIST
Key Stock Number Description
01 FJ400-1 Rear Caster Assy, Spacer, Nut and Washer
02 FJ400-2 Handle w/Foam Pad
03 FJ400-3 Universal Joint w/Seal
04 FJ400-4 Front Wheel, Nut & Washers
05 FJ400-5 Power Unit Assembly - Complete
06 FJ400-6 Saddle
07 FJ300-7 Yoke Pump Roller Assembly
08 FJ400-8 Nut & Washers for Front Wheel
09 FJ400-9 Retaining Rings and Cotter Pin Set
10 FJ300-10 Return Springs (2)
11 FJ400-11 Handle Yoke Casting
Key Stock Number Description
12 FJ200-12 Handle Retaining Pin
13 FJ400-13 Foam Handle Pad
14 FJ200-14 Grease Fitting (5ea)
15 FJ200-15 Saddle Pad
16 FJ200-16 Yoke Pivot Bolts & Washers (2)
17 FJ200-17 Universal Joint Retainer & Screw
18 FJ400-18 Floor Jack and Handle Packaging (2)
19 FJ200-19 HPU Shipping Strap and Screw
(not shown)
20 FJ400-20 Truinon Block and Cotter Pin
21 FJ200-21 Cover plate screws - set of four
22 FJ400-22 Cover plate
