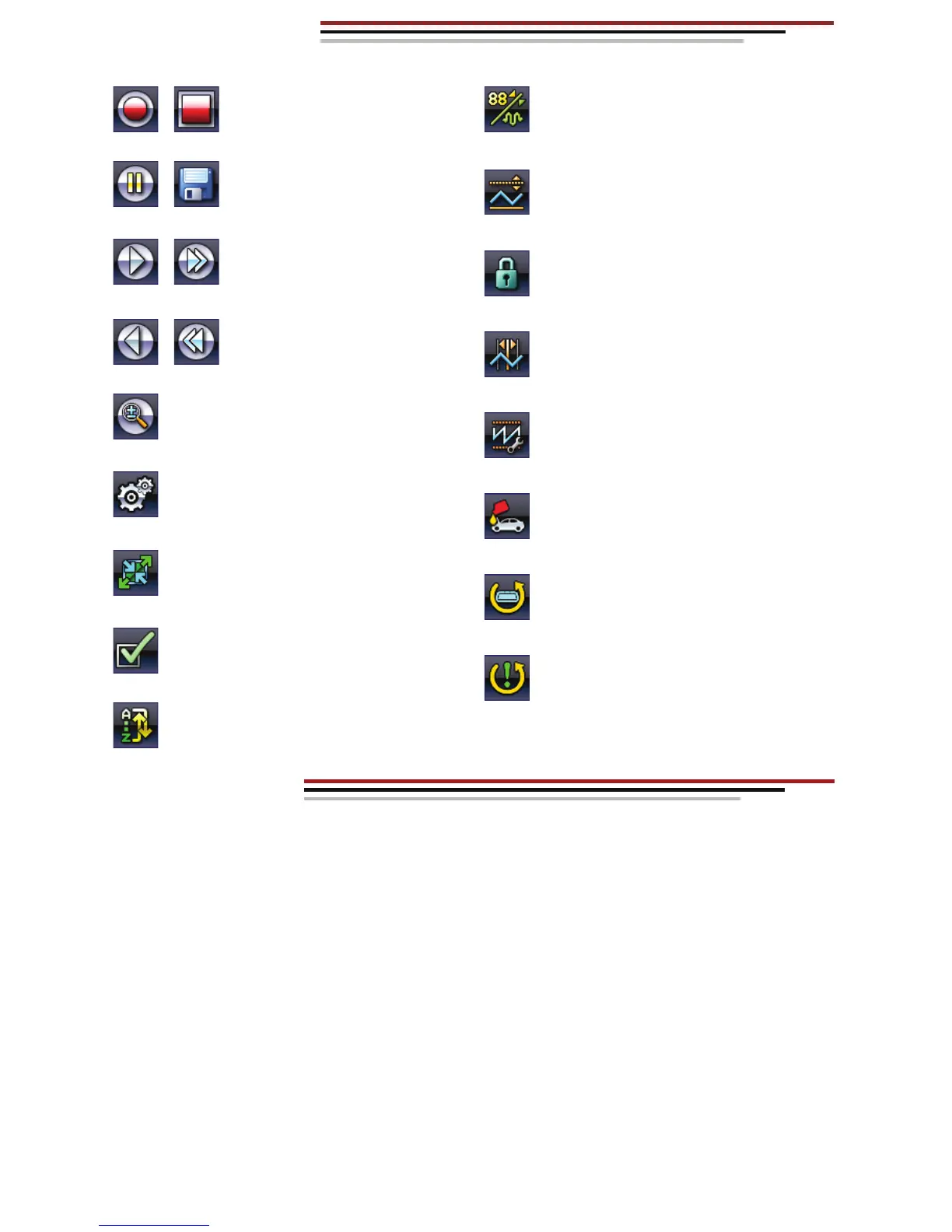

Control Icons
• MODIS Edge Diagnostic Tool
and Battery Pack
• OBD-II Data Cable (DA-4)
• Mini USB Cable
• AC/DC Power Adapter
• Soft Carrying Case
• Getting Started Pack
• Scope/Meter Test Leads and
Probe Tips (2) and Alligator Clips (3)
Kit Contents
(and Accessories/Extras)
Contact your Snap-on representative about accessories and extras, including these
and more!
• European Vehicle Coverage
• OBD-I and European Data Cable Adapters
• Screen Protectors
• Pressure Transducers and Adapters
• Secondary Ignition Scope Adapters
The following are included with your MODIS Edge kit:
Save
Stop
Display, Pause, Stop and
Save the data being
aquired.
Trigger (Scanner)
Set, arm, and clear PID threshold
values.
Custom Data List (Scanner)
Select which parameters to display.
Change View (Scanner)
Toggle between list and graph view.
Lock / Unlock (Scanner)
Lock/unlock the highlighted
parameter.
Sort (Scanner)
Change the listed parameter order.
Record
Pause
Zoom
Cursors (Scope)
Control Panel (Scope)
Tools
Expand / Collapse (Guided Component Tests)
Increase/decrease magnification
of the data.
Toggle cursors on/off.
Open Scope/Meter control panel.
Open the tools menu.
Toggle between full and split
views.
Navigate Backward through
data in singular and
multiple steps.
Step
Skip
Step
Skip
Navigate Forward through
data in singular and
multiple steps.
Functional Reset (Oil Specs & Resets)
Open the Scanner service reset
menu.
Reset Procedure (Oil Specs & Resets)
View OEM service interval reset
instructions.
Fluid Capacity (Oil Specs & Resets)
View OEM oil specification and
capacity information.
