Snap-On POLARTEK EEAC330 - The Machine; Plastic Cover

• 12 •
THE MACHINE
PLASTIC COVER

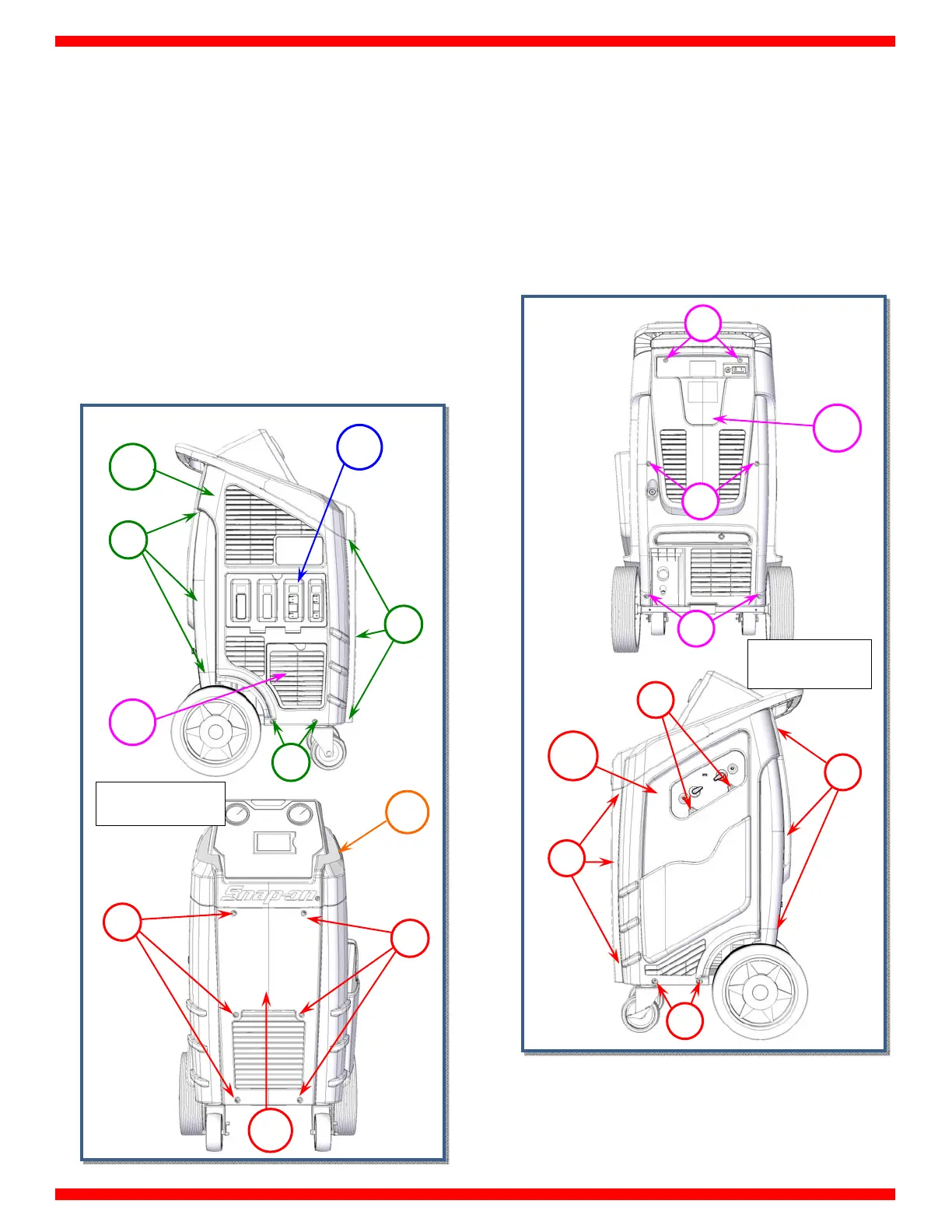

Refer to Fig. 4a .
1) Upper plastic body
2) Frontal body shell
Disassembly: Screw off 6 screws marked (+)
3) Right side body shell
Disassembly: Remove frontal and rear body shell, both
right doors and then screw off 8 screws marked (+)
4) Right upper door
5) Right bottom door
Refer to Fig. 4b.
6) Rear body shell
Disassembly: Remove rear bottom door, then screw off
6 screws marked (+)
7) Left side body shell
Disassembly: Remove frontal and rear body shell, then
screw off 10 screws marked (+)
+
+
+
FIG.4b
6
7
+
+
+
+
+
+
+
FIG. 4a
4
2
3
1
5
+
+
