Snap-On PTR2500 Series - Page 36

36
ZPTR2500CE Rev. D (04/21)
Ref Description
Qty
Part Number
29 Vane 5
FAR2500-30
30 Rear End Plate 1
PT100-5
31 Ball Bearing 1
ME11A35
32 O-Ring 1
ME7B74
33 Regulator Pin 1
ME2A140
34 Housing 1
PT100-1
35 Valve Stem 1
MR2000-13
36 Spring 1
ME1A227
37 Ball 1
ME9A14
38 Compression Spring 1
ME1A189
39 Regulator 1
MR2000-6
40 O-Ring 1
ME7B5
41 O-Ring 1
ME7B97
42 Paddle 1
74996
43 Pin 1
ME2C82
44 Jacket Housing (Red) 1
PTR2500-100
Jacket Housing (Green) 1
PTR2500G100
Jacket Housing (Orange) 1
PTR2500O100
Jacket Housing (High Vis) 1
PTR2500HV100
Jacket Housing (Gun Metal) 1
PTR2500GM100
45 Warning Label 1
67408
46 Muffler 1
PT100-13
47 Exhaust Washer 1
PT100-2
48 Inlet Bushing 1
ME6F7
Not Shown:
Boot (Fits Over Ratchet Head) 1
YA905
Ratchet Head Housing Assy. 1
PTR817-400R
(Includes figures 4 (x2), 5, & 6)
Parts Listing
Ref Description
Qty
Part Number
1 Ratchet Head 1
CTR714-8
2 Bar Element 1
FAR25-7
3 Crank Shaft 1
CTR717-5
4 Caged Needle Bearing 2
ME11B15
5 Ratchet Housing Assembly 1
PTR817-2
6 Wear Bushing 1
CTR714-9
7 Wear Washer 1
FAR25-12A
8 Disc Spring 2
ME1G12
9 Groove Washer 1
FAR25-41
10 Grooved Pin 1
ME2C80
11 Drivebody (PTR817) 1
CTR714-301R
Drivebody (PTR838) 1
FAR2505-31R
12 Pawl 1
CTR714-302
13 Pawl Pin 1
ME2A129
14 O-Ring 1
ME7B88
15 Spring 1
ME1A228
16 Plunger 1
FAR25-34A
17 Selector Knob 1
FAR2533B
18 Grease Zerk 1
ESD1333
19 O-Ring 1
14311
20 Orientation Lock 1
PTR2500-4
21 Internal Gear 1
PTR200-3A
22 Gear Carrier Assembly 1
FAR25-100
23 Gear Planet 3
FAR25-6
24 Ball Bearing 1
ME11A12
25 Front End Plate 1
PT100-4
26 Front End Plate Spacer 1
PT100-10
27 Cylinder 1
PT100-7
28 Rotor 1
FAR2500-6
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
41
41
42
42
43
43
44
44
45
45
47
47
4
4
46
46
48
48

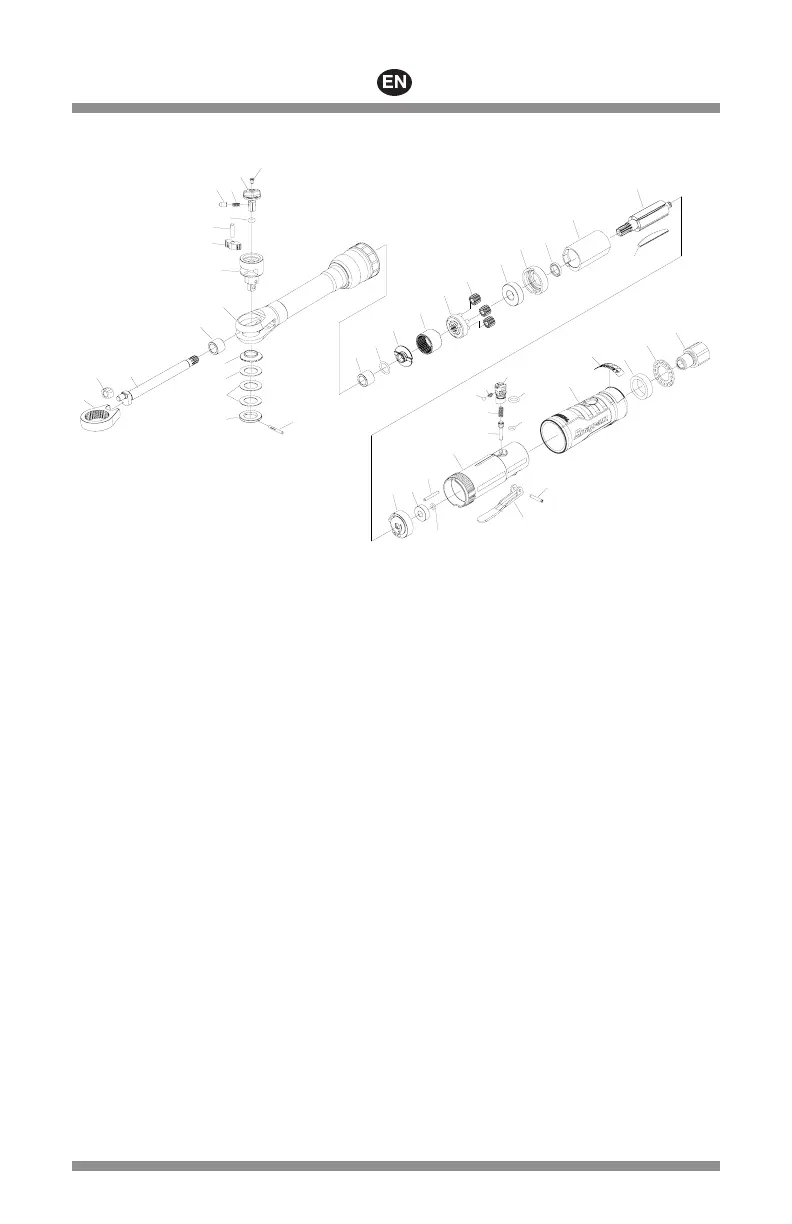

Figure 3: PTR817 & PTR838 Pneumatic Ratchet Wrench
