Snap-On PTR2500 Series - Parts Listing

35
ZPTR2500CE Rev. D (04/21)
Ref Description
Qty
Part Number
30 Vane 5
FAR2500-30
31 Rear End Plate 1
PT100-5
32 Ball Bearing 1
ME11A35
33 O-Ring 1
ME7B74
34 Regulator Pin 1
ME2A140
35 Housing 1
PT100-1
36 Valve Stem 1
MR2000-13
37 Spring 1
ME1A227
38 Ball 1
ME9A14
39 Compression Spring 1
ME1A189
40 Regulator 1
MR2000-6
41 O-Ring 1
ME7B5
42 O-Ring 1
ME7B97
43 Paddle 1
74996
44 Pin 1
ME2C82
45 Jacket Housing (Red) 1
PTR2500-100
Jacket Housing (Green) 1
PTR2500G100
Jacket Housing (Orange) 1
PTR2500O100
Jacket Housing (High Vis) 1
PTR2500HV100
Jacket Housing (Gun Metal) 1
PTR2500GM100
46 Warning Label 1
67408
47 Muffler 1
PT100-13
48 Exhaust Washer 1
PT100-2
49 Inlet Bushing 1
ME6F7
Not Shown:
Boot (Fits Over Ratchet Head) 1
YA905
11
22
33
44
55
66
77
88
99
1010
1111
1212
1313
1414
1515
1616
1717
1818
2020
2121
2222
2323
2424
2525
2626
2727
2828
2929
3030
3131
3232
3333
3434
3535
3636
3737
3838
3939
4040
4141
4242
4343
4444
4545
4646
4747
4848
1919
1818
4949
Parts Listing
Ref Description
Qty
Part Number
1 Ratchet Head 1
CTR714-8
2 Bar Element 1
FAR25-7
3 Crank Shaft 1
PTR200-5
4 Ratchet Housing 1
FAR2500DM2
5 Wear Washer 1
FAR25-12A
6 Disc Spring 2
ME1G12
7 Groove Washer 1
FAR25-41
8 Grooved Pin 1
ME2C80
9 Drivebody (PTR2500) 1
CTR714-301R
Drivebody (PTR2505) 1
FAR2505-31R
10 Pawl 1
CTR714-302
11 Pawl Pin 1
ME2A129
12 O-Ring 1
ME7B88
13 Spring 1
ME1A228
14 Plunger 1
FAR25-34A
15 Selector Knob 1
FAR2533B
16 Grease Zerk 1
ESD1333
17 Clamp Nut 1
PTR2500DM11
18 Caged Needle Bearing 2
ME11B15
19 Lock Nut 1
FAR2500-35
20 O-Ring 1
14311
21 Orientation Lock 1
PTR2500-4
22 Internal Gear 1
PTR200-3A
23 Gear Carrier Assembly 1
FAR25-100
24 Gear Planet 3
FAR25-6
25 Ball Bearing 1
ME11A12
26 Front End Plate 1
PT100-4
27 Front End Plate Spacer 1
PT100-10
28 Cylinder 1
PT100-7
29 Rotor 1
FAR2500-6

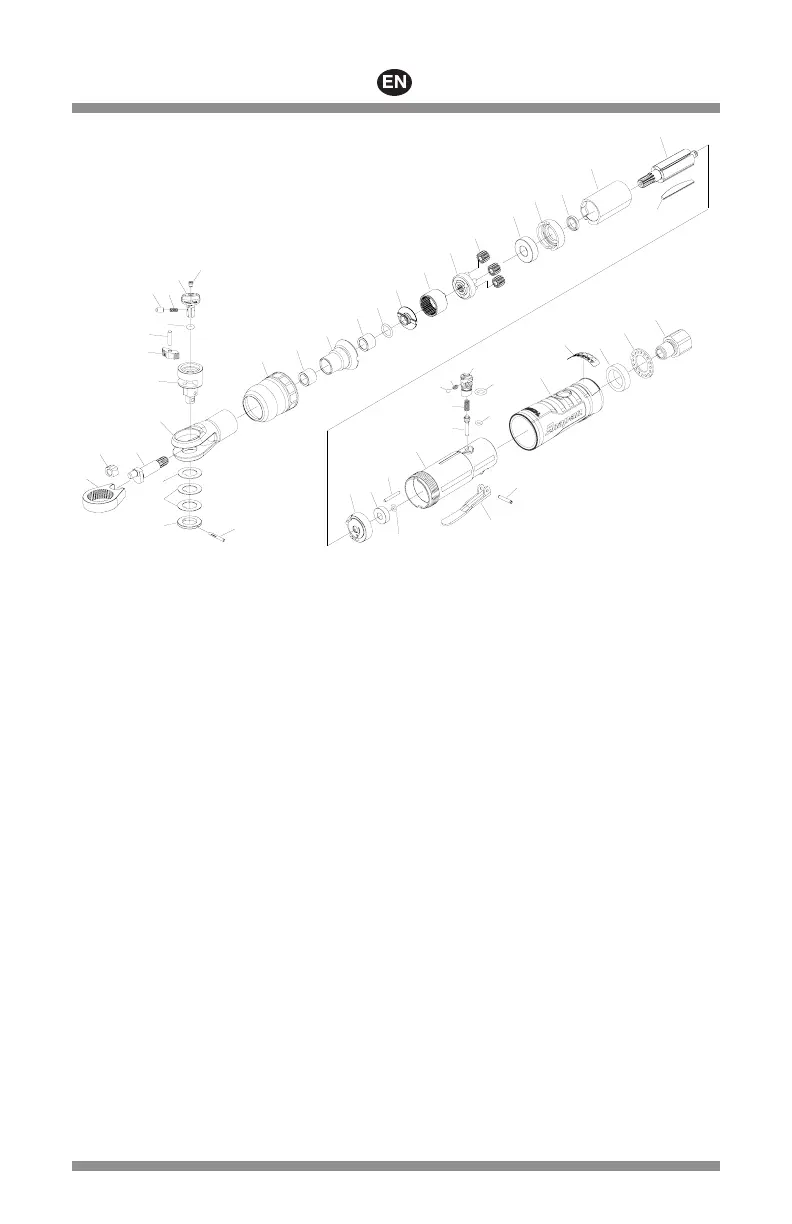

Figure 2: PTR2500 & PTR2505 Pneumatic Ratchet Wrench
