16
4-3
4-4
3
21
Layout
4.1 The screen

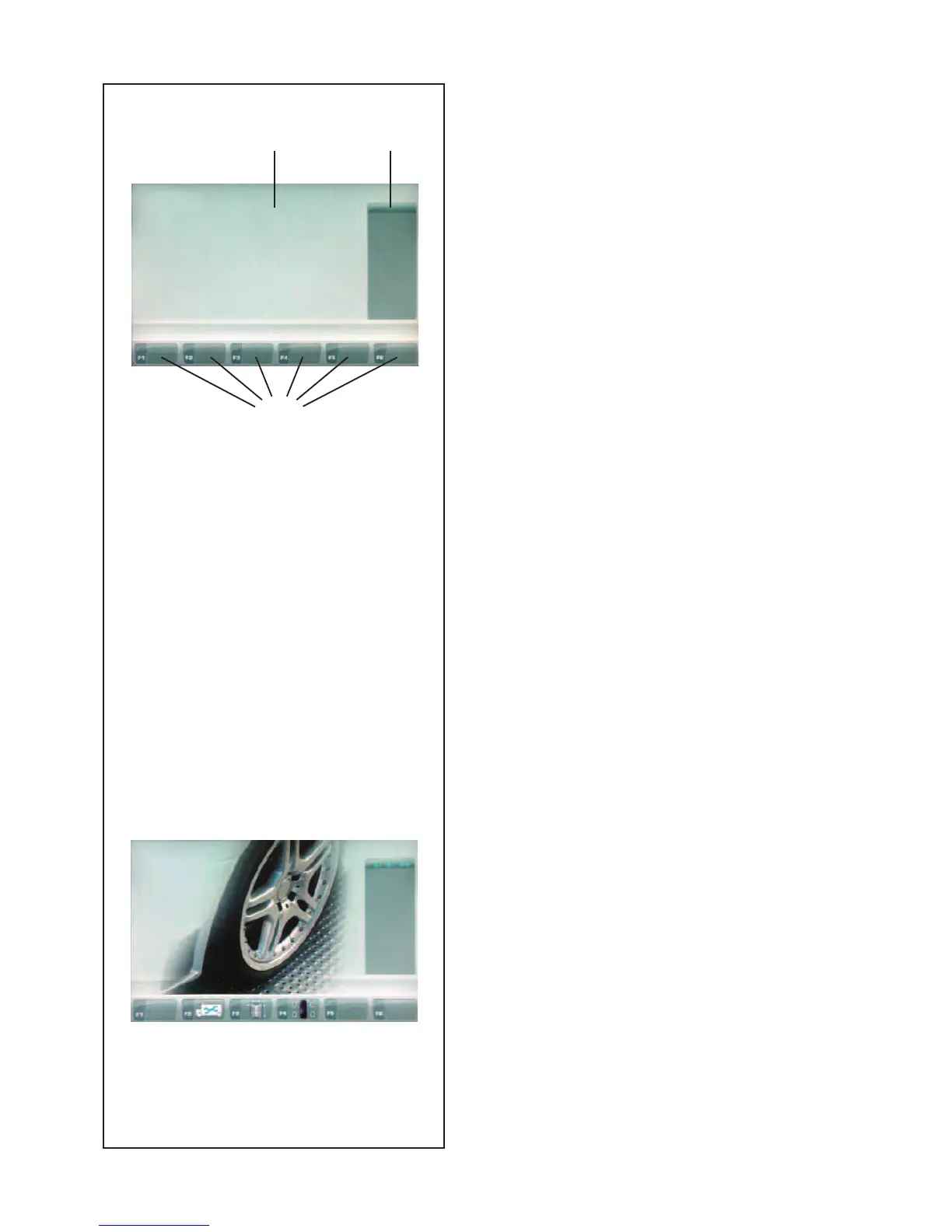

Fig. 4-3 Screen with display fi elds
1 Display fi eld of screen
2 Information fi eld
3 Menu fi elds and description of Functions
The screen reads out inputs, helpful information, all
measured data and possible error codes.
Description of display fi elds
The screen is subdivided into various display fi elds,
each of which is associated with a certain type of
information.
1 Display fi eld
- Rim dimensions.
- Balancing modes.
- Unbalance value.
- List of Counters.
- C codes.
- Help texts.
2 Information fi eld
- Number of the installed program version.
- Measurements of the wheel being processed.
- Operating conditions icons.
- Error codes.
3 Menu fi elds
Pictographs illustrating special features are viewed
in the six menu fi elds. Under every menu fi eld is
the associated menu key which is used to call the
feature illustrated.
4.1.1 Screen pages
In the Display fi eld the main display screens are
available as follows:
Fig. 4-4 INTRO SCREEN
Basic screen / Main menu.
