4.1.2 I Menu

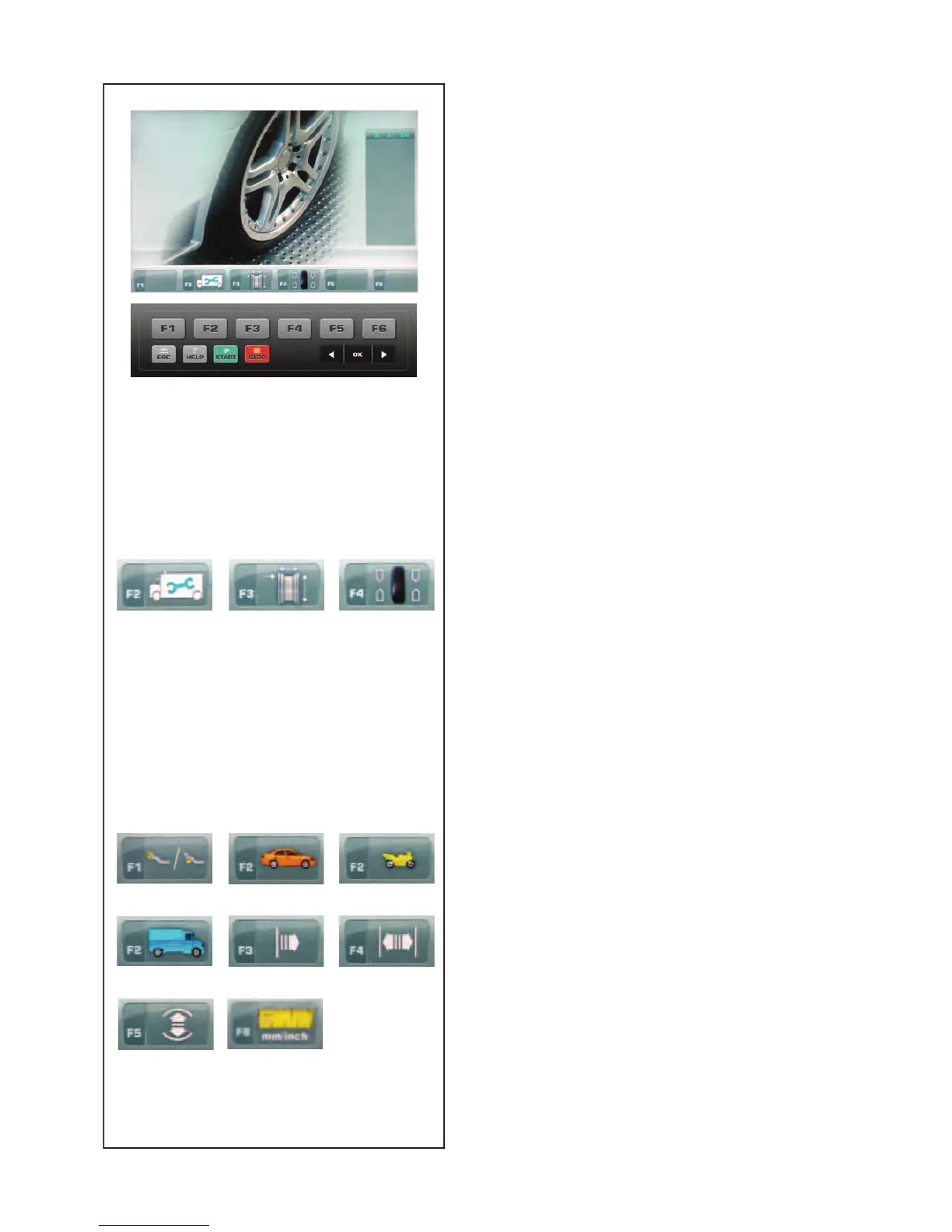

Fig. 4-9 Types of menu fi elds
Th
e assignment of the menu keys F1 to F6 is shown
in the menu fi elds above the relative keys on the
screen. The menu keys have different functions and
initiate different actions, depending on the program
step.
INTRO SCREEN “Main Menu”
Fig. 4-10
F2 Access to: SETTINGS (press three times)
F3 Access to: RIM DATA INPUT
F4 Access to: BALANCING
F6 Access to: OPTIMISATION / MINIMISATION
Note:
From this screen page, simply removing the
detecting device causes an automatic switch to the
“RIM DATA ENTRY” screen page.
RIM DATA ENTRY “Rim data input”
Fig. 4-11
F1 EASY ALU TOGGLE Selection
F2 (a) CAR Selection
F2 (b) MOTORCYCLE Selection
F2 (c) VAN Selection
F3 EDIT OFSET Selection
F4 EDIT WIDTH Selection
F5 EDIT DIAMETER Selection
F6 MILLIMETRES / INCHES Selection.
To Next Page
