Target Presets (PSET)
PSET function gives user ability to configure 10 preset target torque or target angle settings, each with
a minimum (target), maximum (over range) and batch count value. PSETs are stored in non-volatile
memory so that they are retained while power is off.
Note: After adding a Preset (see below), navigate between manual target torque, angle mode and PSET
screen by repeatedly pressing ENTER   button. While PSET screen is displayed, press
UP   /DOWN   buttons to select additional configured PSETs.
Note: Presets with a non-zero batch count are displayed as 01ofXX.
Adding a Torque Preset
1. From target torque screen, select units of measure.
2. Press and hold UNITS U button for 3 seconds.
3. ADD PRESET confirmation screen is displayed. Highlight YES menu selection using UP   /DOWN 
buttons then press ENTER   button. NO menu selection returns to main menu without adding a
PSET.
4. MINIMUM TORQUE is target value at which green progress lights, audible alert and vibrator turn
on. Initial MINIMUM TORQUE value is value from target torque screen. MINIMUM TORQUE can be
set to any value within wrench torque range by pressing UP   /DOWN   buttons. Once desired
target torque value has been set, press ENTER   button.
5. MAXIMUM TORQUE screen is displayed next. MAXIMUM TORQUE is torque value above which red
progress lights turn on. Initial MAXIMUM TORQUE value will be MINIMUM TORQUE plus 4%.
Maximum torque value can be set greater than MINIMUM TORQUE value to 10% above wrench
maximum range by pressing UP   /DOWN   buttons. Once desired value has been set, press
ENTER   button.
6. BATCH COUNT screen is displayed next. Default value is zero. Batch count range is 0 to 99. Press
UP   /DOWN   buttons to increment/decrement batch count. Mode Count increments each
time target torque is reached if a batch count of zero is entered. Mode Count is displayed as 01ofXX
if a non-zero batch count is entered and resets to 01 after batch count completed. Once desired
value has been set, press ENTER   button.
7. PSET target screen is displayed labeled with next available PSET number from 01 to 10.
8. To enter additional torque presets, repeatedly press ENTER   button until target torque screen is
displayed and repeat steps above.

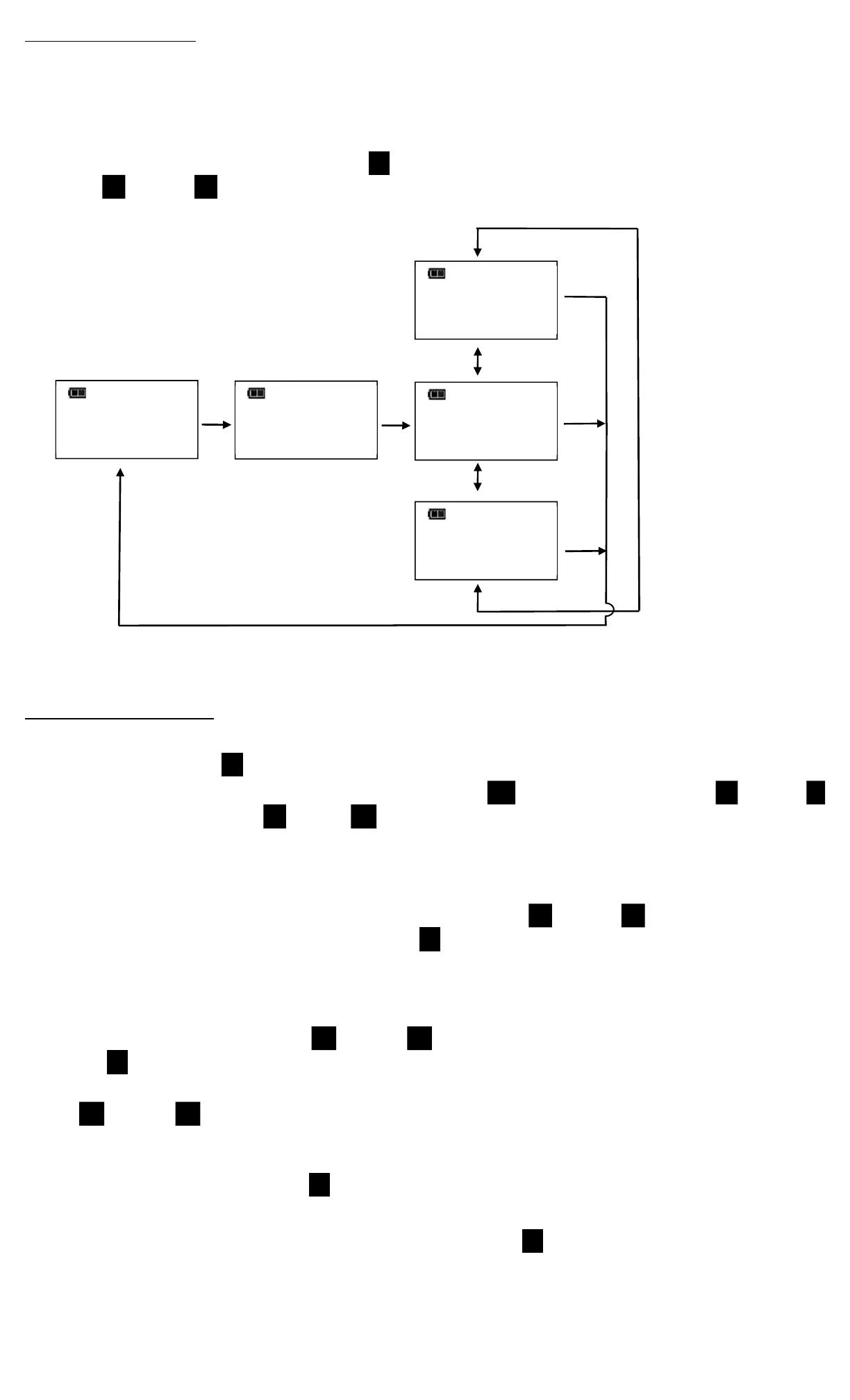

ENTER
button
UP/Down buttons
PSET 03 00
90°
Manual Target Angle Screen
PSET 02 00
50.0
FT-LB
Preset 2 Torque Screen
Preset 3 Angle Screen
UP/Down buttons
UP/Down buttons
UP/Down buttons
ENTER
button
ENTER
button
ENTER
button
00
90°
00
100.0
FT-LB
ENTER
button
Manual Target Torque Screen
PSET 01 01
of
03
100.0
FT-LB
Preset 1 Torque Screen
