Snap-On VERSATORQ 2 SYSTEM User Manual

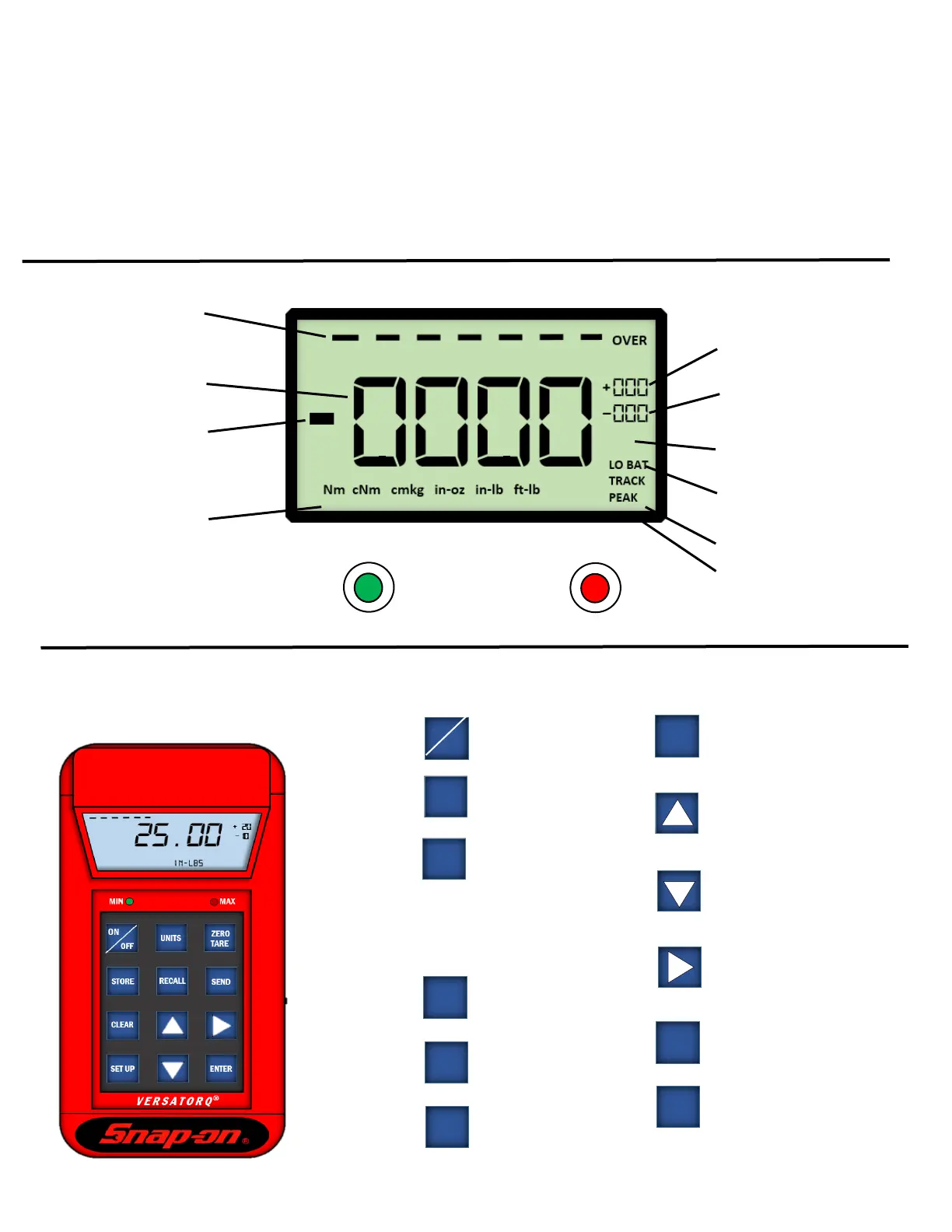

Functional Description – DISPLAY
MEMBRANE KEY PAD
UNITS
ZERO
TARE
TARE
TARE
STORE
RECALL
CLEAR
ENTER
ON
OFF
Power ON/OFF to and from
sleep mode. (Battery Saver
Switch on side of unit).
SET UP
Select UNITS conversion:
ft-lb, in-lb, in-oz
Nm, cNm, cmkg, kg
Manual ZERO TARE. Also
momentarily displays full
scale sensor range, preset
and preset limits. (Automatic
Zero Tare at power on, from
sleep mode, and at sensor
change).
STORE present torque
reading in memory and clear
peak-hold display.
RECALL last torque reading
from memory. Push ENTER
to exit recall mode.
SEND data from USB
port to PC EXCEL
Spreadsheet
CLEAR last reading from
display. To clear entire
memory, push RECALL
then hold CLEAR key.
Scroll UP increases numeric
values and selects Track of
Peak modes during Set-up
programming.
Scroll DOWN decreases numeric
values and selects Track of
Peak modes during Set-up
programming.
Scroll RIGHT to next significant
value and selects Track of
Peak modes during Set-up
programming.
SET-UP preset limits,
PEAK, TRACK modes, and sensor
calibration.
ENTER program
parameters during Set-up
programming. Also used to
exit Recall mode.
The 4 digit, .5 inch, wide angle LCD display shows applied
torque in TRACK mode or the highest torque value captured in
PEAK-hold mode. This display is also used for SETUP
programming and to indicate functions and fault conditions.
Display flags include: cNm, Nm, cmkg, kg, in-oz, in-lb, and ft-lb
units of measure, OVER torque alarm / message OuEr, LO BATT
battery monitor, real time torque TRACK and captured PEAK modes.
A small 3 digit display indicates the number of stored values.
Shows the total number of readings stored in memory. In the
SET-UP mode, these displays indicate the UPPER (+) and
LOWER (-) percentage values for ALARM preset, respectively.
A ten segment analog bar graph, scaled to the ALARM preset
value, provides a live indication of applied torque. The graph
moves left to right for CW and right to left for CCW torque inputs.
A green LED indicates at least MINimum preset torque is
presently applied and a red LED indicates MAXimum preset torque.
WIDE ANGLE LIQUID CRYSTAL DISPLAY
ANALOG BAR GRAPH
LEFT TO RIGHT WHEN TORQUE
IS APPLIED
4 DIGIT LCD DISPLAY
MINUS SIGN SIGNIFIES
COUNTER-CLOCKWISE TORQUE
TORQUE CONVERSION UNITS:
ft-lb, in-lb, in-oz,
Nm, cNm, kg, cmkg
009
PLUS PERCENTAGE TARGET
TOLERANCE
MINUS PERCENTAGE TARGET
TOLERANCE
TOTAL NUMBER OF READINGS
STORED IN MEMORY
LOW BATTERY INDICATOR
TRACK MODE ACTIVE
PEAK MODE ACTIVE
MIN LED
MAX LED
Functional Description – KEY
PAD
SEND
