1.t INTRODUCTION
Before starting machine, visually check location of all operational controls and identify major parts discussed in
Operator's Manual.
COLLECTOR AUGERS
REMOTE DEFLECTOR
CONTROL (26" & 30" MODELS)
SPEED CONTROL LEVER
BLOWER CLUTCH
CONTROL LEVER
HEAD LIGHT
(26" & 30" MODELS)
DISCHARGE
DEFLECTOR
CAP
DISCHARGE CHUTE
CONTROL
CONTROL LEVER
PANEL
FUEL TANK_
IMPELLER HOUSING
BLOWER
HOUSING
COLLECTOR
AUGERS
(REPLACEABLE)
GEAR BOX
SKID SHOES
IMPELLER
(ROTATES @APPROX.
1100 RPM DURING OPERATION)
DISCHARGE CHUTE
_WHEEL RETAINING
PINS
TIRES
12-10 PSI W/O CHAINS.
16-20 PSI WITH CHAINS.
IMPELLER

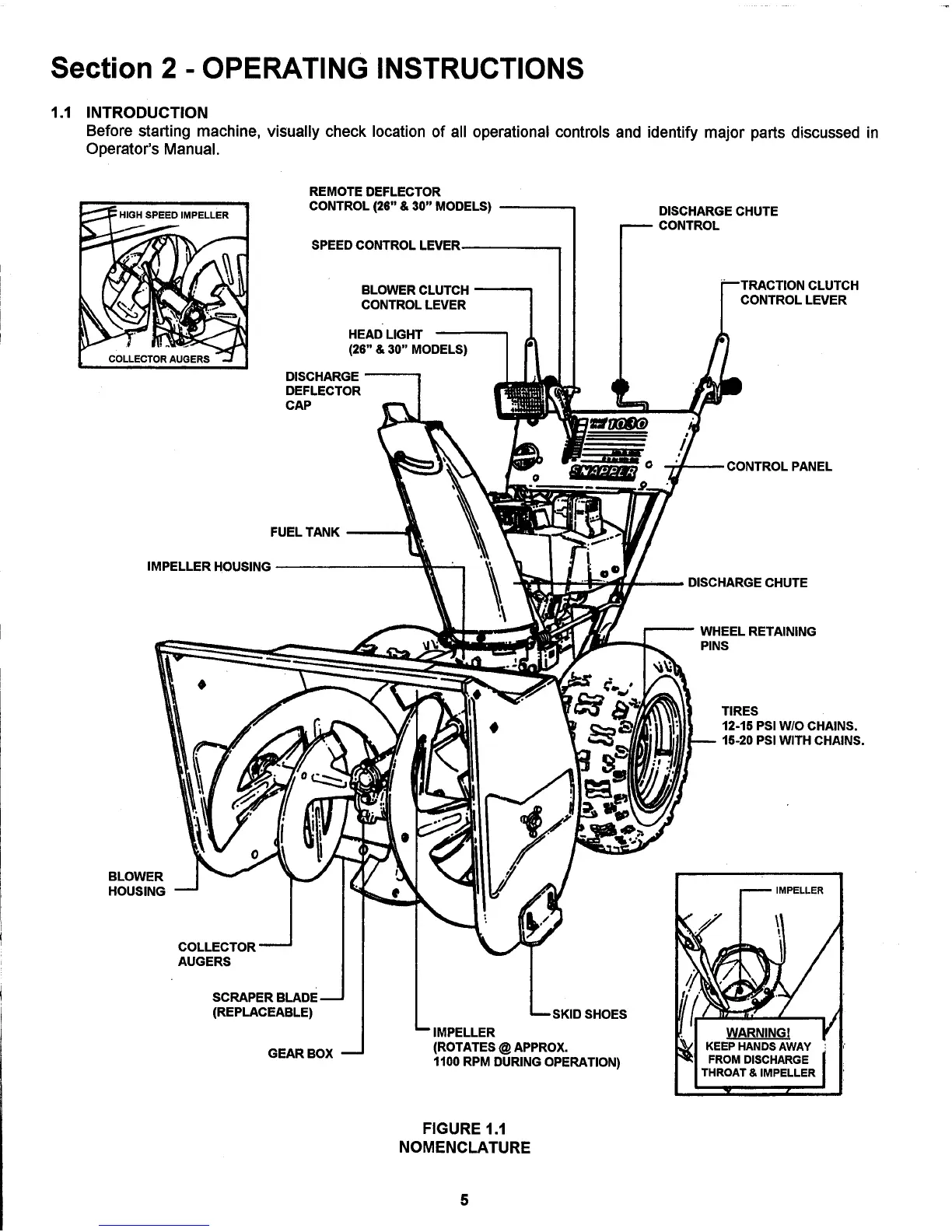

FIGURE 1.1
NOMENCLATURE
