Section 4 - REPAIR & ADJUSTMENTS
4.1.5. SKID SHOE ADJUSTMENT
NOTE: It is recommended to raise the auger/impeller
housingwhen clearing roughor graveled surfaces. To
raise auger/impellerthe skid shoesshould be lowered.
1. Tilt machine up and place a wooden block under
auger/impeller housing.
2. Loosen bolts on both skid shoes. Move shoes
down to raise auger/impeller housing or move skid
shoes up to lower auger/impeller housing. See Figure
4.10.

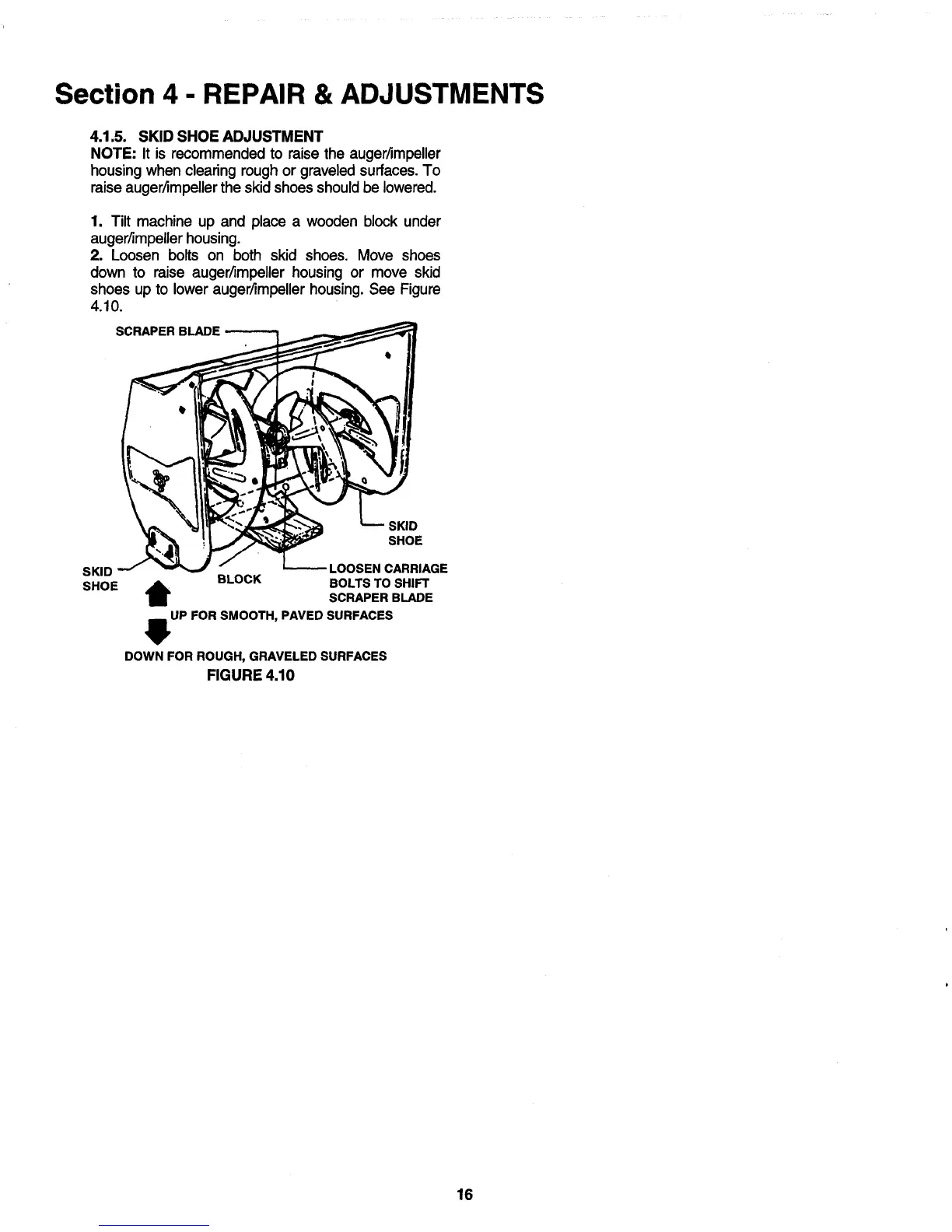

SCRAPER BLADE_
SKID
SHOE
SKID
SHOE
LOOSEN CARRIAGE
Q BLOCK BOLTS TO SHIFT
SCRAPER BLADE
UP FOR SMOOTH, PAVED SURFACES
4
DOWN FOR ROUGH, GRAVELED SURFACES
FIGURE 4,10
