11Section 3 — ASSembly & Set-Up

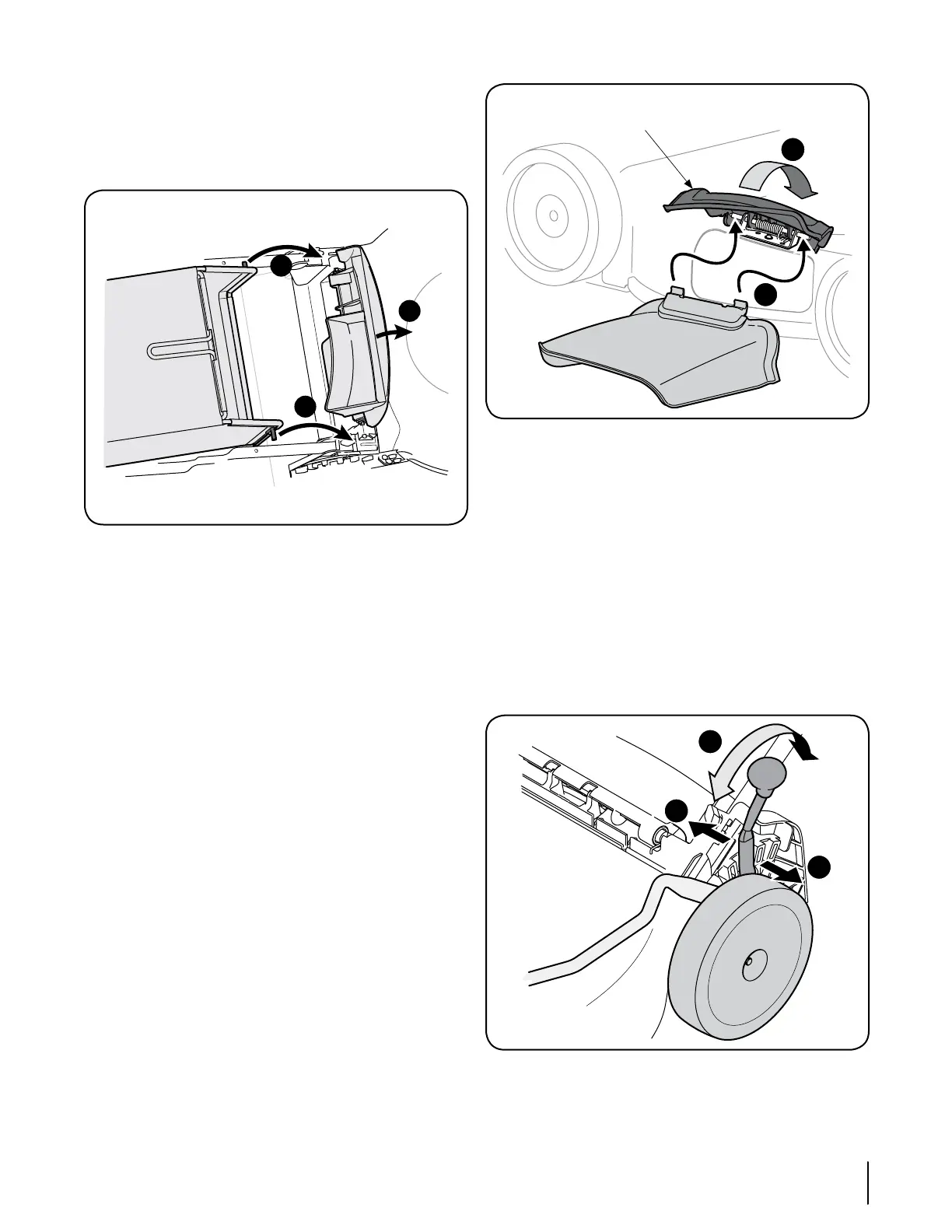

Figure 3-9
2. Slide two hooks of side discharge chute under hinge pin
on mulch plug assembly. Lower the mulch plug. Do not
remove side mulch plug at any time, even when you are
not mulching.
Adjustments
Cutting Height
The cutting height adjustment lever is located above the rear left
wheel.
1. Depress height adjustment lever towards wheel.
2. Slide lever to desired position for a change in cutting
height. Refer to Figure 3-10 for low wheel adjustment and
Figure 3-11 for high wheel.
Figure 3-10
2. Follow steps below to attach grass catcher:
a. Lift rear discharge door.
b. Place grass catcher into the slots in the handle
brackets as shown in Figure 3-8. Let go of discharge
door so that it rests on the grass catcher.
Figure 3-8
To remove grass catcher, lift rear discharge door on the mower.
Lift grass catcher up and OFF of the slots in the handle brackets.
Release rear discharge door to allow it to close rear opening of
mower.
Side Discharge Chute
Your mower is shipped as a mulcher. To convert to side discharge,
make sure grass catcher is off of the unit and rear discharge door
is closed.
1. On the side of the mower, lift the side mulch plug.
See Figure 3-9.
