When
the
blade’s
cutting
edges
have
become
dull
(while
in
otherwise
good
condition),
sharpen
on
a
grinding
wheel
at
an
angle
of
22
to
28
degrees.
The
cutting
surface
(on
each
end)
should
extend
in¬
ward
about
3-1/2"'
from
the
tip.
After
sharpening,
check
the
blade
for
balance
-
a
blade
"out
of
balance"will
cause
excessive
vibration.
Re-balance
as
required.
Re-install
the
blade
with
the
components
in
proper
sequence
as
shown
in
FIG.
10.
_
NOTE
SHARPEN
THE
SPECIAL
RECYCLING
BLADE
(NINJA)
ON
A
BENCH
GRINDER
AT
AN
ANGLE
OF
22
TO
28
DEGREES.
_
DO
NOT
substitute
any
components!
Make
sure
the
flange
on
each
side
of
blade
(at
the
mounting
hole)
fits
over
the
edge
of
the
blade
drive
hub
(A).
Tighten
the
blade
retaining
capscrew
(B)
to
30
FOOT
POUNDS
TORQUE.
_
CLUTCH
LINKAGE
(SELF-PROPELLED)
'
The
vinyl
(tube
type)
cover
(A)
should
always
conceal
outer
(B)
and
inner
(C)
clutch
cable
springs.
The
spr¬
ing
combination
connects
the
clutch
cable
to
the
clutch
idler
components
(refer
to
FIG.
11).
The
cover
(A)
prevents
accummulation
of
dirt
on
the
springs
and
eliminates
the
possibility
of
their
wearing
a
hole
through
a
grass
bag.
ADJUSTMENT:
Should
excessive
pressure
be
re¬
quired
to
hold
the
WHEEL
DRIVE
CONTROL
lever
(19)
against
the
UPPER
HANDLE
(18),
spring
ad¬
justing
is
needed!
Refer
to
FIG.
11.
When
properly
adjusted,
there
should
be
1/16"
to
1/8"
clearance
between
the
INSIDE
of
spring
(B)
hook
and
the
INSIDE
of
the
clutch
cable
"eye".
Stop
the
engine
and
release
the
WHEEL
DRIVE
CON¬
TROL
lever/and
pull
back
cover
(A)
to
check
clearance.
To
adjust,
unhook
springs
from
cable
(at
"eye")
and
rotate
springs
in
opposite
directions
and
re-hook
to
cable
and
check
clearance.
Repeat
procedure
if
needed.

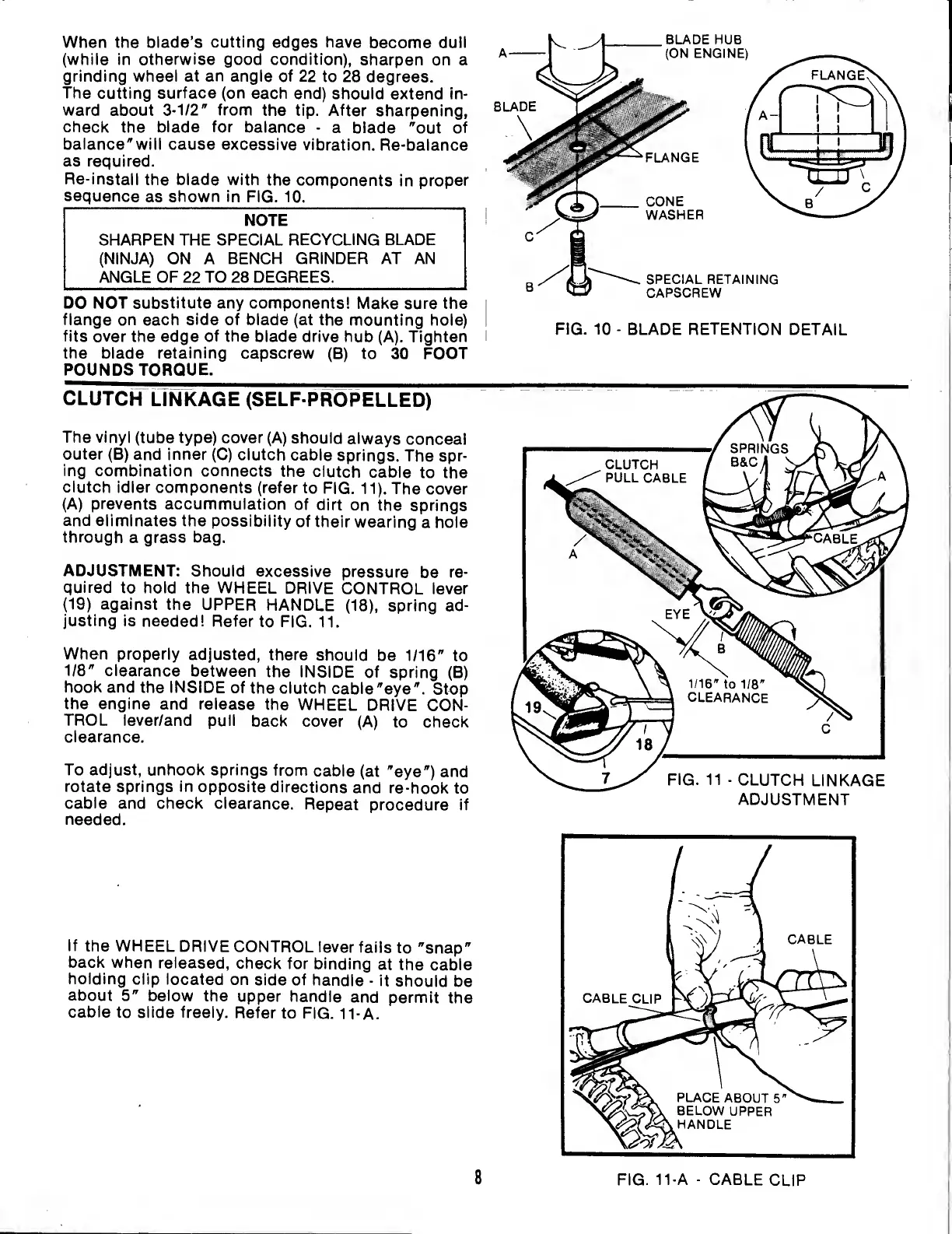

FIG.
10
-
BLADE
RETENTION
DETAIL
If
the
WHEEL
DRIVE
CONTROL
lever
fails
to
"snap"
back
when
released,
check
for
binding
at
the
cable
holding
clip
located
on
side
of
handle
-
it
should
be
about
5"
below
the
upper
handle
and
permit
the
cable
to
slide
freely.
Refer
to
FIG.
11-A.
8
FIG.
11-A
-
CABLE
CLIP
