Assembly & Set-Up
3
9
Contents of Carton
One Lawn Mower One Grass Catcher One Bottle of Oil
One Operator’s Manual One Side Discharge Chute
b. While stabilizing mower so it doesn’t move, pivot
crimp cable while lifting the handle up.
Figure 3-2
Assembly
NOTE: Please be aware that this Operator’s Manual covers both
the low and high wheel models of this mower. While this manual
illustrates the low wheel model, the instructions and features
are equally applicable to the high wheel model as well, unless
otherwise noted.
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed BEFORE operating your
mower.
Handle
1. Remove any packing material which may be between
upper and lower handles.
a. Remove wing nuts and carriage bolts from handle
as shown in Figure 3-1. Do not loosen or remove
adjacent hex head screws.

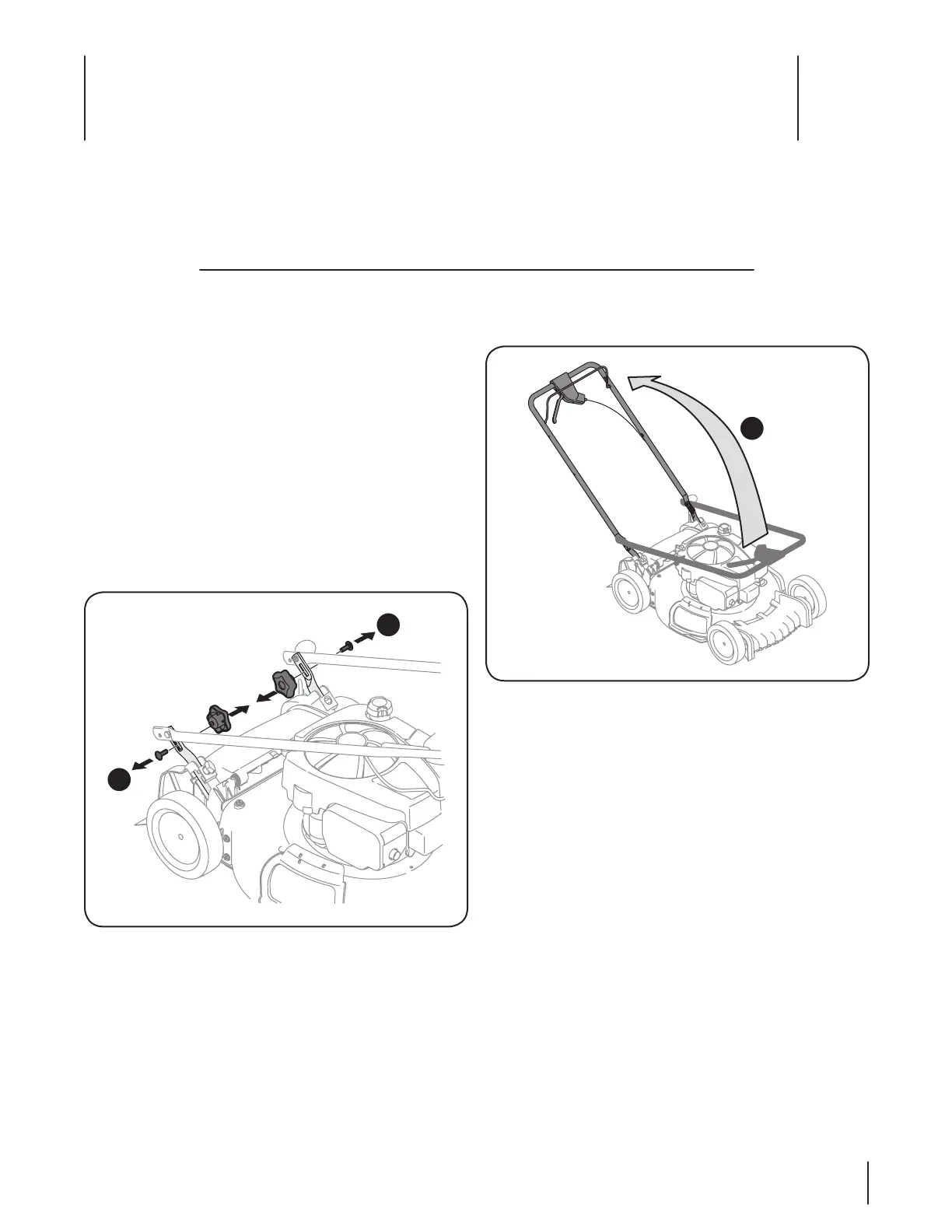

Figure 3-1
To Next Page
