250 Z & Javelin Series
TP 300-5241-00-HZ-SN
10/20066
Uncrating
1. Using a reciprocating utility saw or equivalent, cut
crate away from bottom skid. Remove crate. Remove
plastic wrap.
2. Cut any banding securing the unit.
3. Place transmissions in the roll release position by
pushing the roll release rods (A, Figure 1), located
under the rear of the unit behind each transmission, in
toward the transmission until the collar on the neck of
each rod passes through the keyhole in the roll
release plate (B). Then lock the rod in the roll release
position by sliding the rod sideways into the keyhole
slot.
4. Move the motion control levers from their neutral
locked positions.
The rider can now be pushed by hand.
IMPORTANT NOTE
When cutting crate from bottom skid,
use caution around tires and mower
rollers.

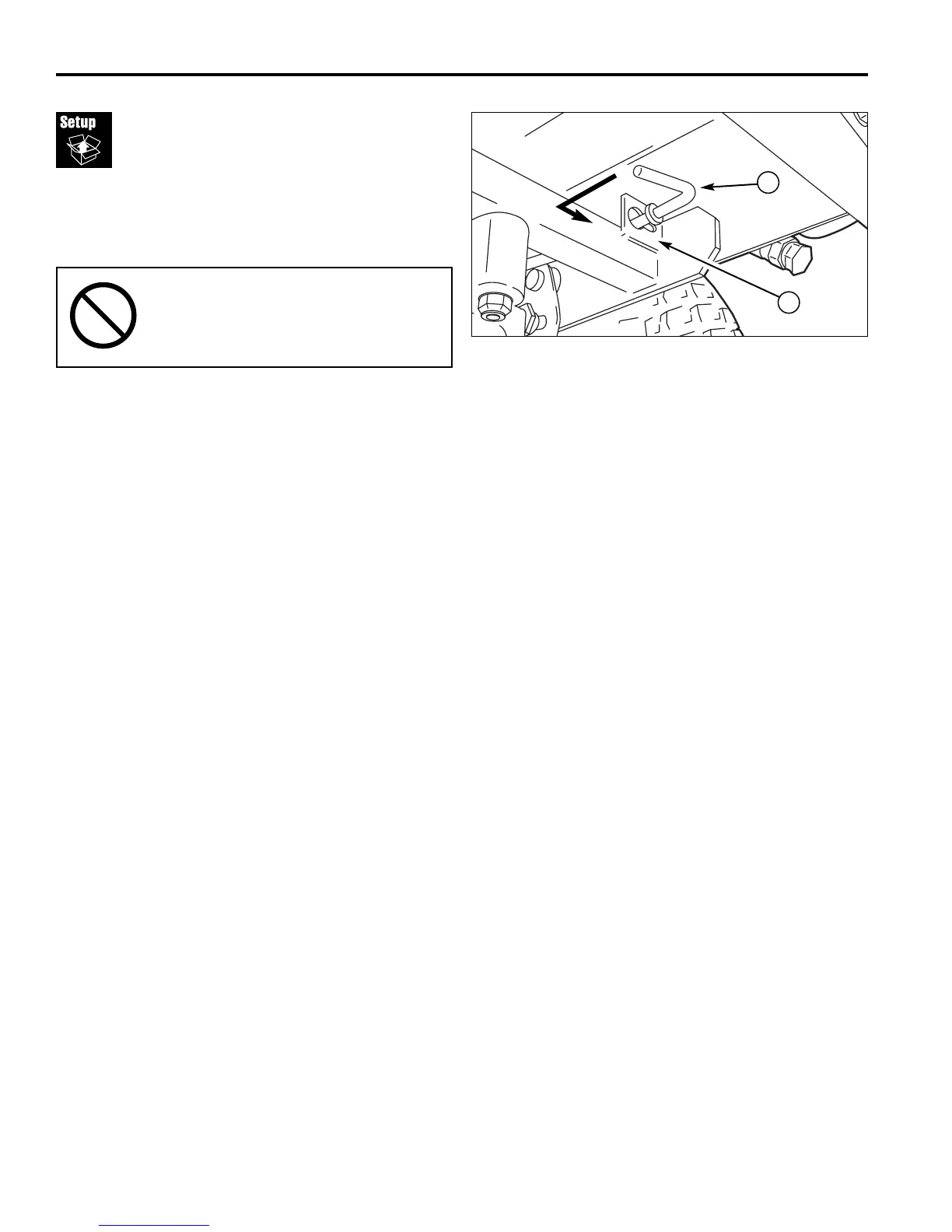

Figure 1. Roll Release Components (On Each Side)
A. Roll Release Rod
B. Roll Release Plate
A
5. Be sure there are no nails or sharp objects on the bot-
tom of the skid to puncture the tires. Roll the rider for-
ward off the skid.
6. After moving the rider, move the motion control levers
back into their neutral locked positions, and re-
engage the transmissions (drive position) by unlock-
ing the roll release rods and pulling them out.
B
