Snapper IRT4 1 Series User Manual

WHEEL & TINE
CONTROL
STARTER
PULL HANDLE
TRANSMISSION
FILL PLUG
TILLING
TINES
IRT4 SERIES 1
TILLERS
OIL CHECK
& FILL PORT
TILLER
SERVICE &
STORAGE
STAND

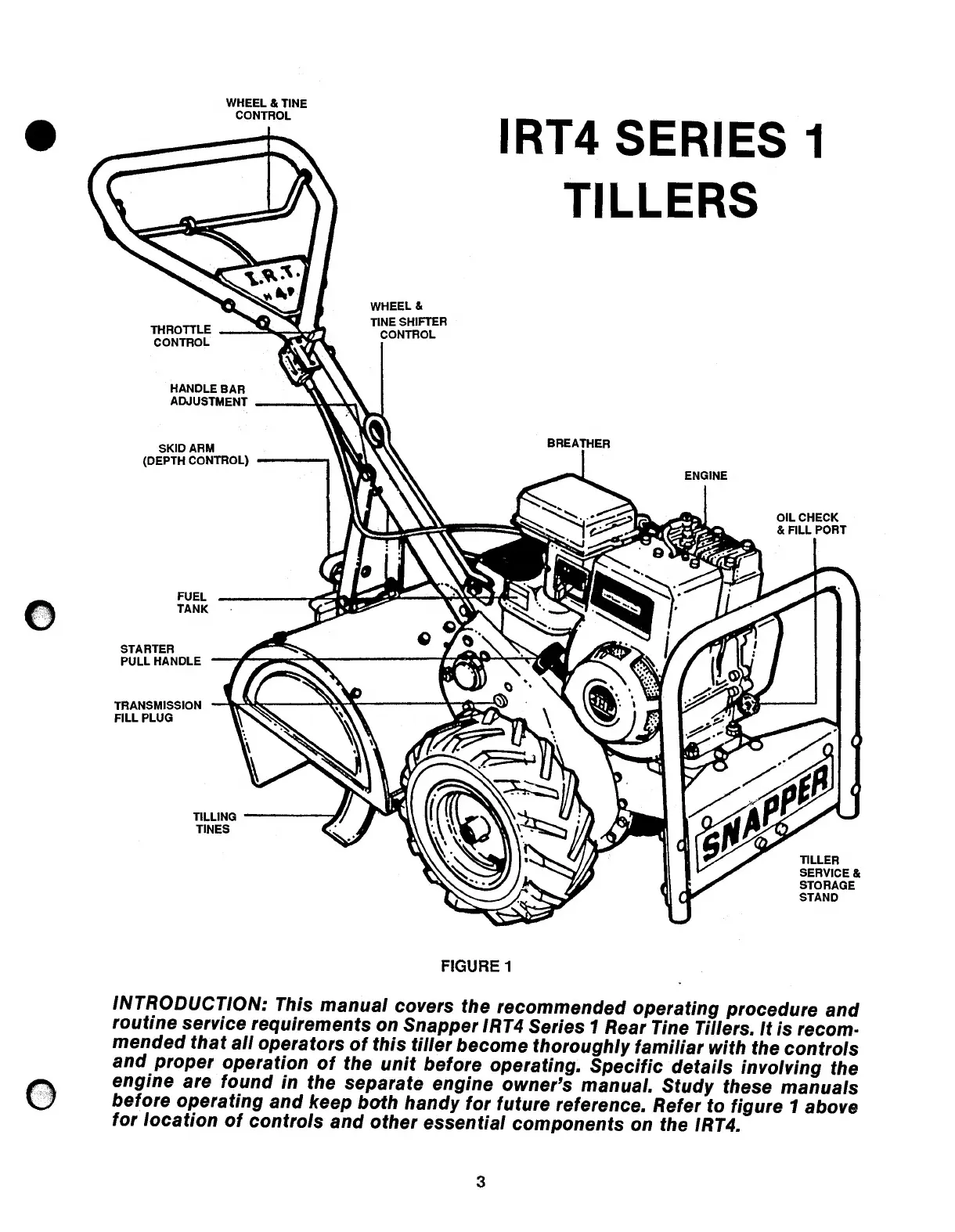

FIGURE 1
INTRODUCTION: This manual covers the recommended operating procedure and
routine service requirements on Snapper iRT4 Series 1 Rear Tine Tiiiers. it is recom¬
mended that aii operators of this tiiier become thoroughiy familiar with the controis
and proper operation of the unit before operating. Specific detaiis invoiving the
engine are found in the separate engine owner’s manuai. Study these manuais
before operating and keep both handy for future reference. Refer to figure 1 above
for iocation of controis and other essentiai components on the iRT4.
3

Snapper IRT4 1 Series Specifications

General

Brand	Snapper
Model	IRT4 1 Series
Category	Tiller
Language	English
