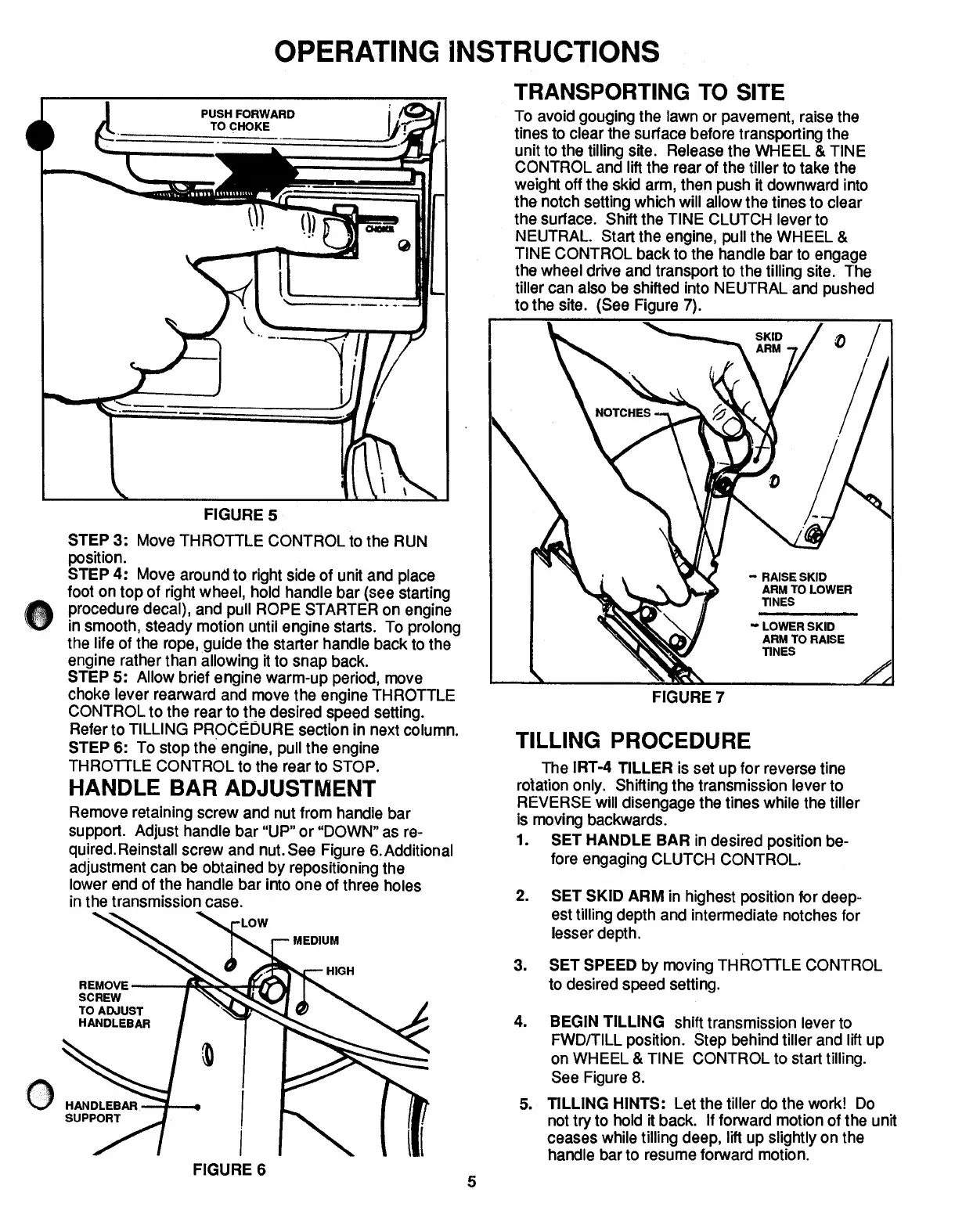

OPERATING
INSTRUCTIONS
FIGURE
5
STEP
3:
Move
THROTTLE
CONTROL
to
the
RUN
position.
STEP
4:
Move
around
to
right
side
of
unit
and
place
foot
on
top
of
right
wheel,
hold
handle
bar
(see
starting
procedure
decal),
and
pull
ROPE
STARTER
on
engine
in
smooth,
steady
motion
until
engine
starts.
To
prolong
the
life
of
the
rope,
guide
the
starter
handle
back
to
the
engine
rather
than
allowing
it
to
snap
back.
STEP
5:
Allow
brief
engine
warm-up
period,
move
choke
lever
rearward
and
move
the
engine
THROTTLE
CONTROL
to
the
rear
to
the
desired
speed
setting.
Refer
to
TILLING
PROCEDURE
section
in
next
column.
STEP
6:
To
stop
the
engine,
pull
the
engine
TRANSPORTING
TO
SITE
To
avoid
gouging
the
lawn
or
pavement,
raise
the
tines
to
clear
the
surface
before
transporting
the
unit
to
the
tilling
site.
Release
the
WHEEL
&
TINE
CONTROL
and
lift
the
rear
of
the
tiller
to
take
the
weight
off
the
skid
arm,
then
push
it
downward
into
the
notch
setting
which
will
allow
the
tines
to
clear
the
surface.
Shift
the
TINE
CLUTCH
lever
to
NEUTRAL.
Start
the
engine,
pull
the
WHEEL
&
TINE
CONTROL
back
to
the
handle
bar
to
engage
the
wheel
drive
and
transport
to
the
tilling
site.
The
tiller
can
also
be
shifted
into
NEUTRAL
and
pushed
to
the
site.
(See
Figure
7).
FIGURE
7
TILLING
PROCEDURE
THROTTLE
CONTROL
to
the
rear
to
STOP.
HANDLE
BAR
ADJUSTMENT
Remove
retaining
screw
and
nut
from
handle
bar
support.
Adjust
handle
bar
“UP”
or
“DOWN”
as
re¬
quired.
Reinstall
screw
and
nut.
See
Figure
6.
Additional
adjustment
can
be
obtained
by
repositioning
the
lower
end
of
the
handle
bar
into
one
of
three
holes
in
the
transmission
case.
The
IRT-4
TILLER
is
set
up
for
reverse
tine
rotation
only.
Shifting
the
transmission
lever
to
REVERSE
will
disengage
the
tines
while
the
tiller
is
moving
backwards.
1.
SET
HANDLE
BAR
in
desired
position
be¬
fore
engaging
CLUTCH
CONTROL.
2.
SET
SKID
ARM
in
highest
position
for
deep¬
est
tilling
depth
and
intermediate
notches
for
lesser
depth.
3.
SET
SPEED
by
moving
THROTTLE
CONTROL
to
desired
speed
setting.
4.
BEGIN
TILLING
shift
transmission
lever
to
FWD/TILL
position.
Step
behind
tiller
and
lift
up
on
WHEEL
&
TINE
CONTROL
to
start
tilling.
See
Figure
8.
5.
TILLING
HINTS:
Let
the
tiller
do
the
work!
Do
not
try
to
hold
it
back.
If
forward
motion
of
the
unit
ceases
while
tilling
deep,
lift
up
slightly
on
the
handle
bar
to
resume
fonward
motion.
FIGURE
6
5
