33

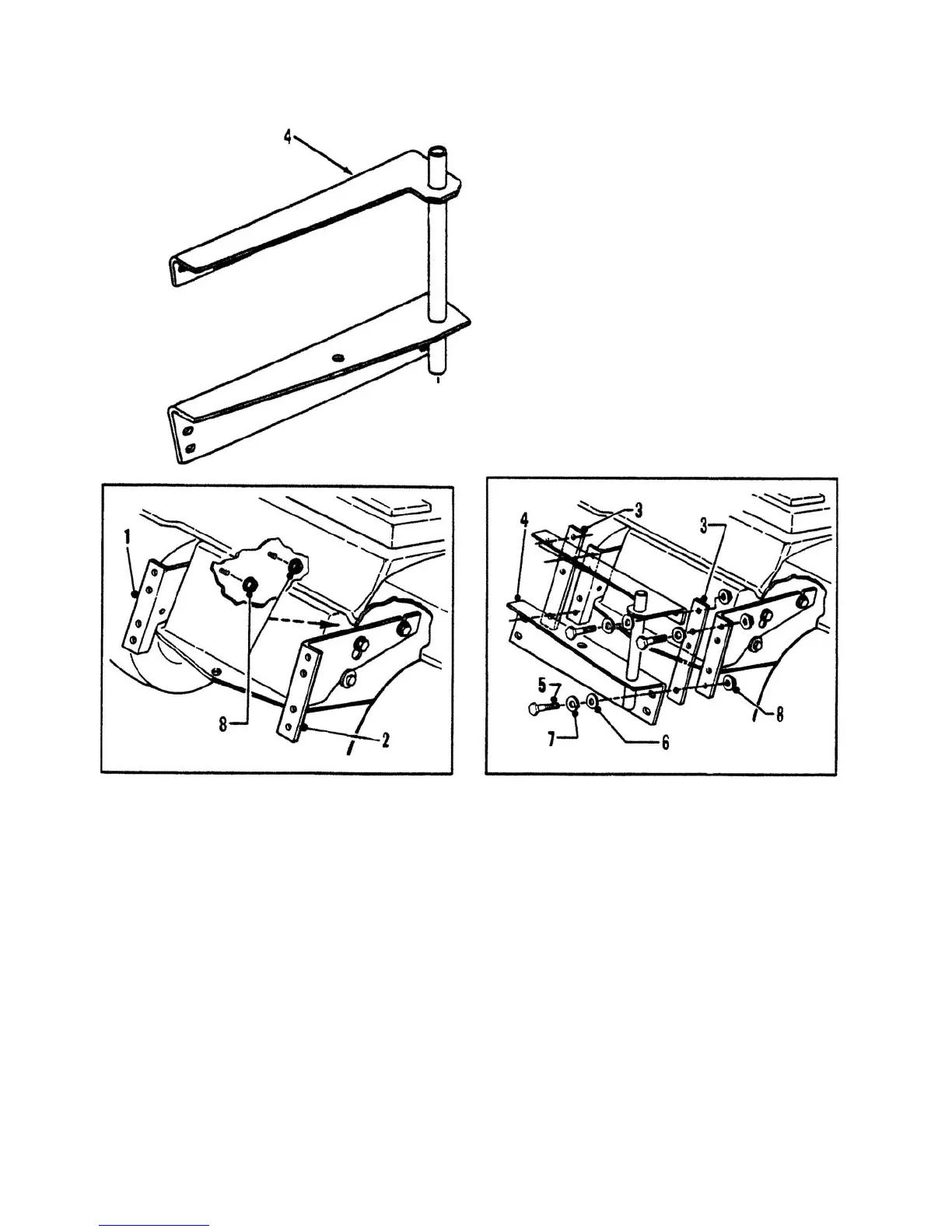

6-1308 ACCESSORY, BAG-N-WAGON ADAPTER
(for Series “A” 1-Piece Frame Models)
ITEM PART NO. DESCRIPTION
-- 6-1308 KIT, Bag-N-Wagon Adapter (Includes items 1 thru 8)
1 3-4173 SUPPORT, Stand-up Tube L.H. (shown installed)
2 3-4172 SUPPORT, Stand-up Tube R.H. (shown installed)
3 3-1494 ADAPTER, Alignment (2)
4 4-0635 WELDMENT, Adapter
-- 6-1338 BAG, Hardware (Includes indented items below)
5 9-1260 BOLT, 5/16-18 x 1-1/4” Hex Head, Grade 8 (6)
6 9-1296 WASHER, 5/16” Flat, Grade 5 (4)
7 9-1315 WASHER, 5/16” Split Lock (6)
8 9-1511 NUT, 5/16-18 Hex, Grade 5 (10)
LT SERIES (Small Frame) MANUAL No. 06613
