35

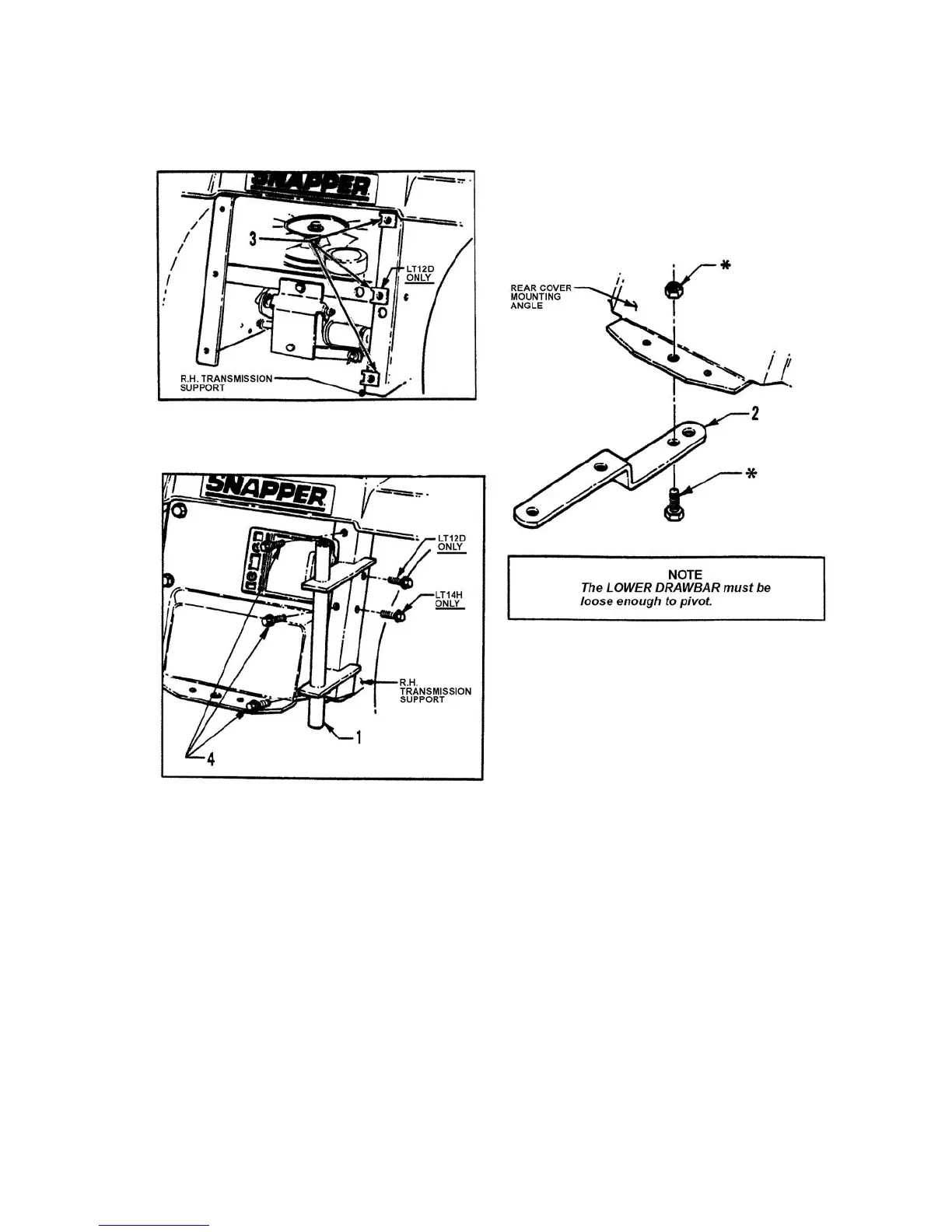

6-1089 ACCESSORY, BAG-N-WAGON ADAPTER
(for Hydro and Gear Drive Models)
NOTE: Rear cover is removed in this view.
* Component of Bag-N-Wagon Kit.
ITEM PART NO. DESCRIPTION
-- 6-1089 KIT, Bag-N-Wagon Adapter (Includes items 1 thru 4)
1 4-0991 WELDMENT, Adapter
2 3-3371 DRAWBAR, Lower
-- 6-1092 BAG, Hardware (Includes indented items below)
3 1-6116 NUT, 5/16” Push-on (2)
4 9-1541 SCREW, 5/16-18 x 3/4” Hex Washer Self-Tap(4)
LT SERIES (Small Frame) MANUAL No. 06613
