Snapper Lawn Mower Accessory - Page 5

5

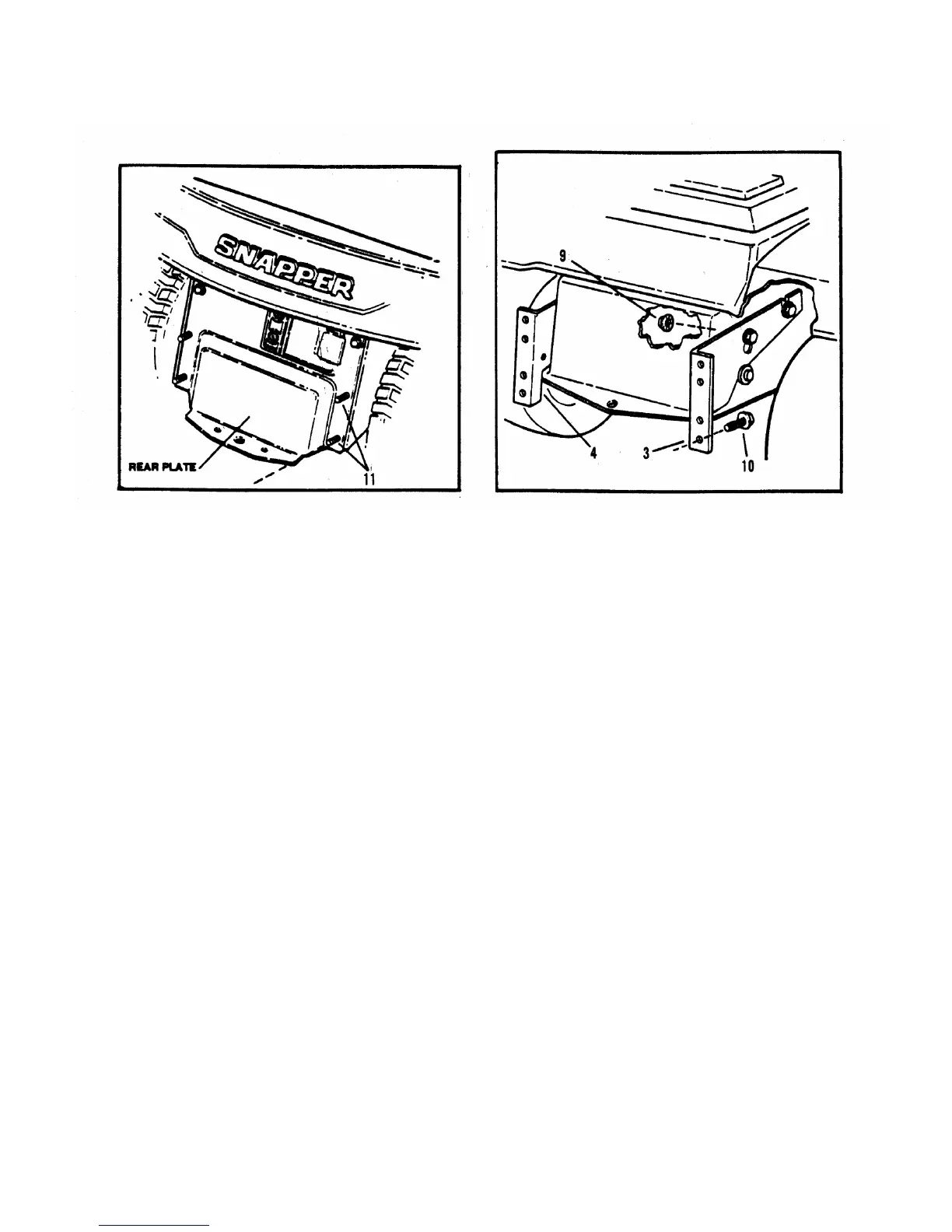

6-1245 ACCESSORY, REAR WEIGHT
SERIES 1 & 2 SERIES A & B
ITEM PART NO. DESCRIPTION
-- 6-1245 REAR WEIGHT KIT
1 3-4103 BRACKET, Weight Holder
2 1-9759 WEIGHT, 38 LB. (2)
3 3-4172 SUPPORT, Stand-Up Tube (R.H.)
4 3-4173 SUPPORT, Stand-Up Tube (L.H.)
5 1-5002 ROD, 3/8-16 x 9” Threaded (2)
6 9-1514 WASHER, 3/8 Flat (4)
7 9-1320 WASHER, 3/8 Split Lock (4)
8 9-1302 NUT, 3/8-16 Hex, Grade B or 5 (4)
9 9-1601 NUT, 5/16-18 Hex Flange Lock, Grade 5 (8)
10 9-1592 BOLT, 5/16-18 x 2”, Hex Flange Lock, Grade 5 (4)
11 9-1591 BOLT, 5/16-18 x 1”, Hex Flange Lock, Grade 5 (4)
LT SERIES (Small Frame) MANUAL No. 06613
