58

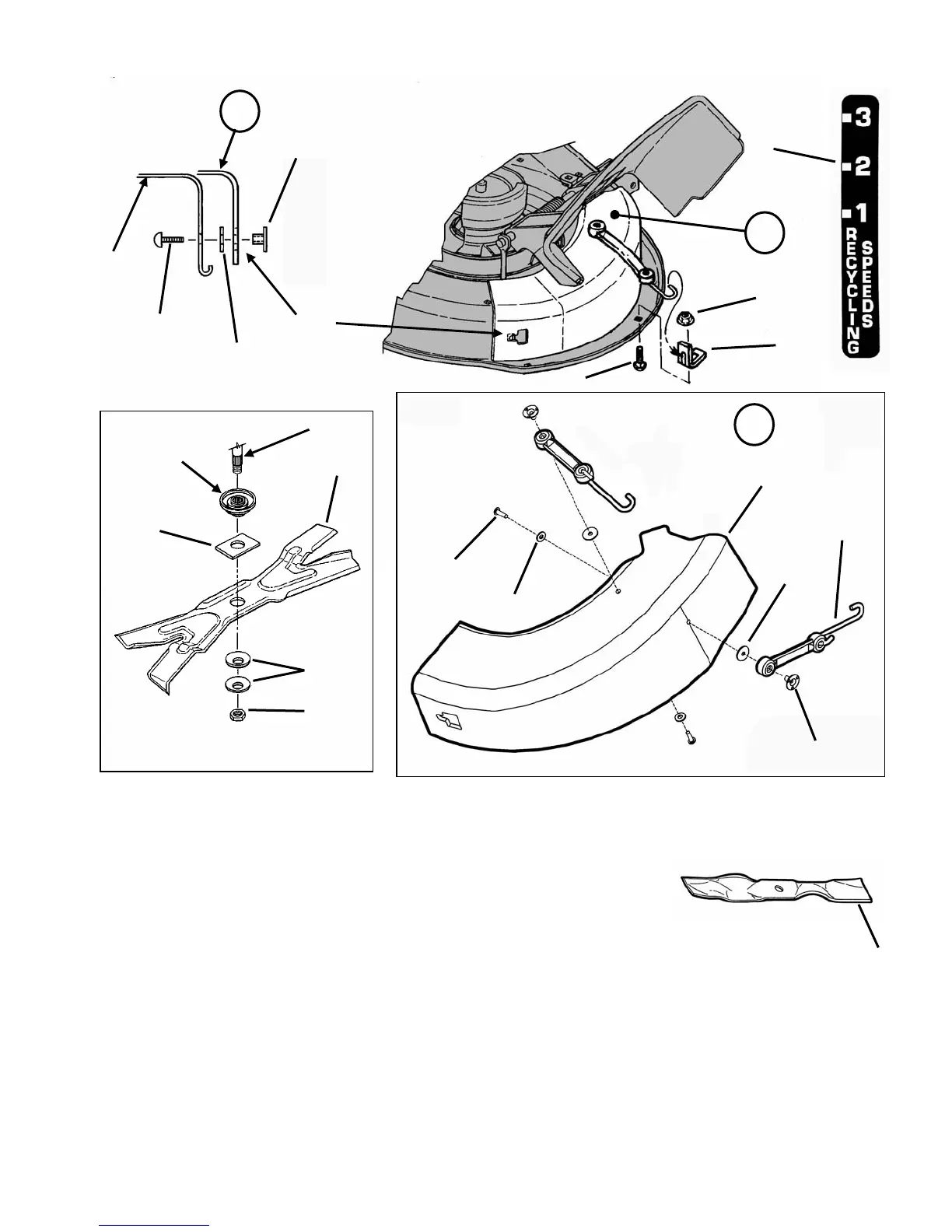

ACCESSORY, 38” RECYCLE KITS 6-1877/6-1878
ITEM PART NO. DESCRIPTION
- 6-1877 KIT, Wave Recycling (38" Models) (Incl. Items 3 Thru 17)
- 6-1878 KIT, Ninja Recycling (38" Models) (Includes Items 1 Thru 10)
1 2-6597 BLADE, 19-1/2” Ninja (Quad Edge)
2 2-6749 WASHER, Ninja Blade (2)
3 3-6543 TEENUT, 5/16-18
4 4-5178 BRACKET, Strap Mounting
5 9-1296 WASHER, 5/16” Flat
6 9-1619 NUT, 3/8-16 Hex Flange Lock
7 9-1833 SCREW, 5/16-18 x 5/8” Cross Recess Pan Head Nyloc
8 9-1923 BOLT, 3/8-16 x 3/4” Square Neck Carriage
9 1-7176 DECAL, Recycling Ground Speeds
10 5-4334 ASSEMBLY, Mulching Cover & Strap (Incl. items 11 thru 16)
11 2-9398 COVER, Mulching (38” Deck)
12 3-6404 NUT, #10-24 Weld (2)
13 3-6415 SCREW, #10-24 Pan Head Cross Recess (2)
14 3-6422 WASHER, .190 I.D., 3/4” O.D. Flat (2)
15 3-6433 STRAP, Bag Adapter Mounting (2)
16 9-1552 WASHER, .219 I.D., 1/2” O.D. (2)
17 3-6548 BLADE, 19.64” Mulching Wave (2)
MANUAL No. 06613 LT SERIES (Small Frame)
11
ITEM 10 ASSEMBLY
DECK
7
5
3
NOTCH
8
4
6
10
1
2
13
16
12
15
14
SPINDLE
BEARING
RETAINER
9
17
10
To Next Page
