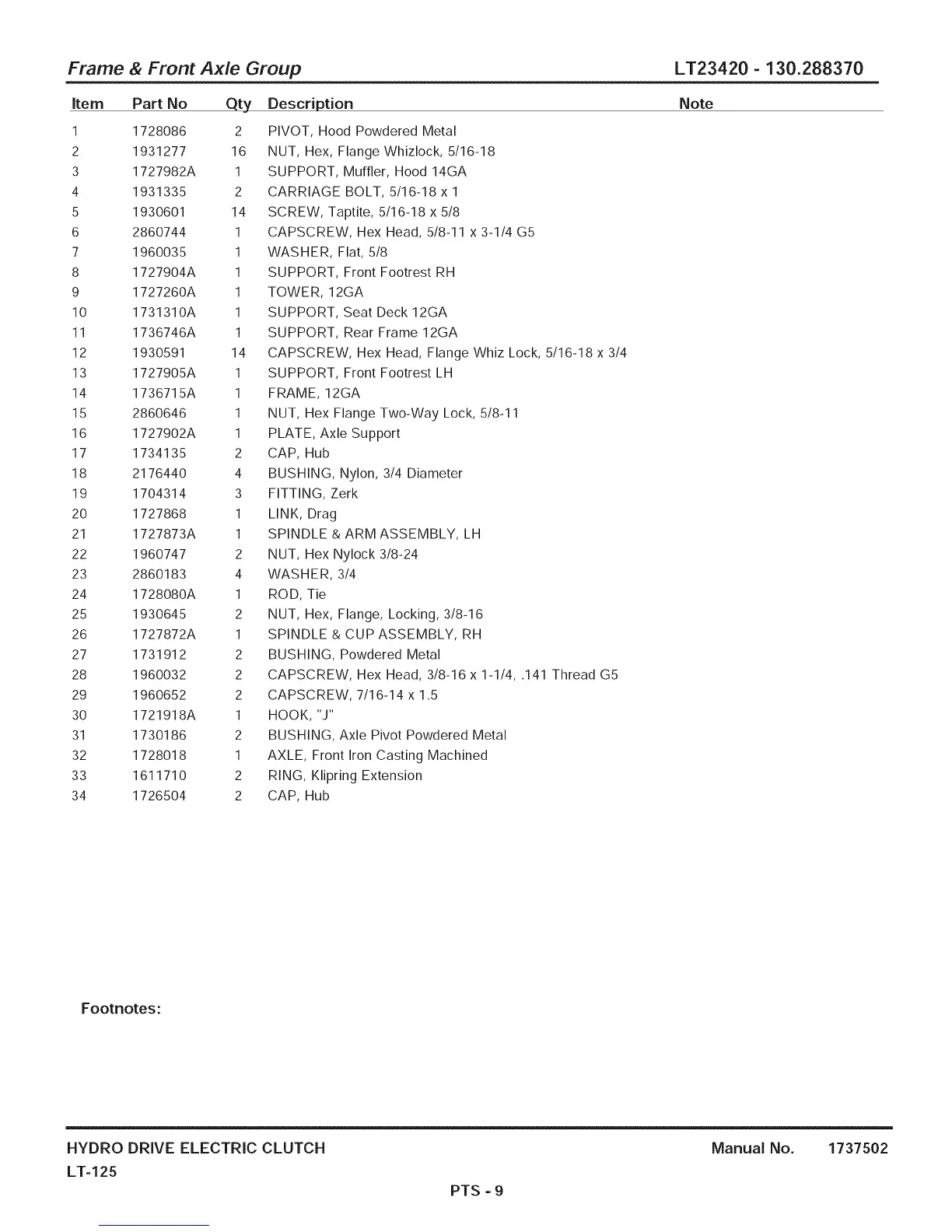

Frame & Front Axle Group LT23420 - 130.288370
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Part No
1728086
1931277
1727982A
1931335
1930601
2860744
1960035
1727904A
1727260A
1731310A
1736746A
1930591
1727905A
1736715A
2860646
1727902A
1734135
2176440
1704314
1727868
1727873A
1960747
2860183
1728080A
1930645
1727872A
1731912
1960032
1960652
1721918A
1730186
1728018
1611710
1726504
DescriptionQty
2 PIVOT, Hood Powdered Metal
16 NUT, Hex, Flange Whizlock, 5/16-18
1 SUPPORT, Muffler, Hood 14GA
2 CARRIAGE BOLT, 5/16-18 x 1
14 SCREW, Taptite, 5/16-18 x 5/8
1 CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5
1 WASHER, Flat, 5/8
1 SUPPORT, Front Footrest RH
1 TOWER, 12GA
1 SUPPORT, Seat Deck 12GA
1 SUPPORT, Rear Frame 12GA
14 CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
1 SUPPORT, Front Footrest LH
1 FRAME, 12GA
1 NUT, Hex Flange Two-Way Lock, 5/8-11
1 PLATE, Axle Support
2 CAP, Hub
4 BUSHING, Nylon, 3/4 Diameter
3 FITTING, Zerk
1 LINK, Drag
1 SPINDLE & ARM ASSEMBLY, LH
2 NUT, Hex Nylock 3/8-24
4 WASHER, 3/4
1 ROD, Tie
2 NUT, Hex, Flange, Locking, 3/8-16
1 SPINDLE & CUP ASSEMBLY, RH
2 BUSHING, Powdered Metal
2 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
2 CAPSCREW, 7/16-14 x 1.5
1 HOOK, "J"
2 BUSHING, Axle Pivot Powdered Metal
1 AXLE, Front Iron Casting Machined
2 RING, Klipring Extension
2 CAP, Hub
Note
Footnotes:
HYDRO DRIVE ELECTRIC CLUTCH
LT-125
PTS =9
Manual No. 1737502
