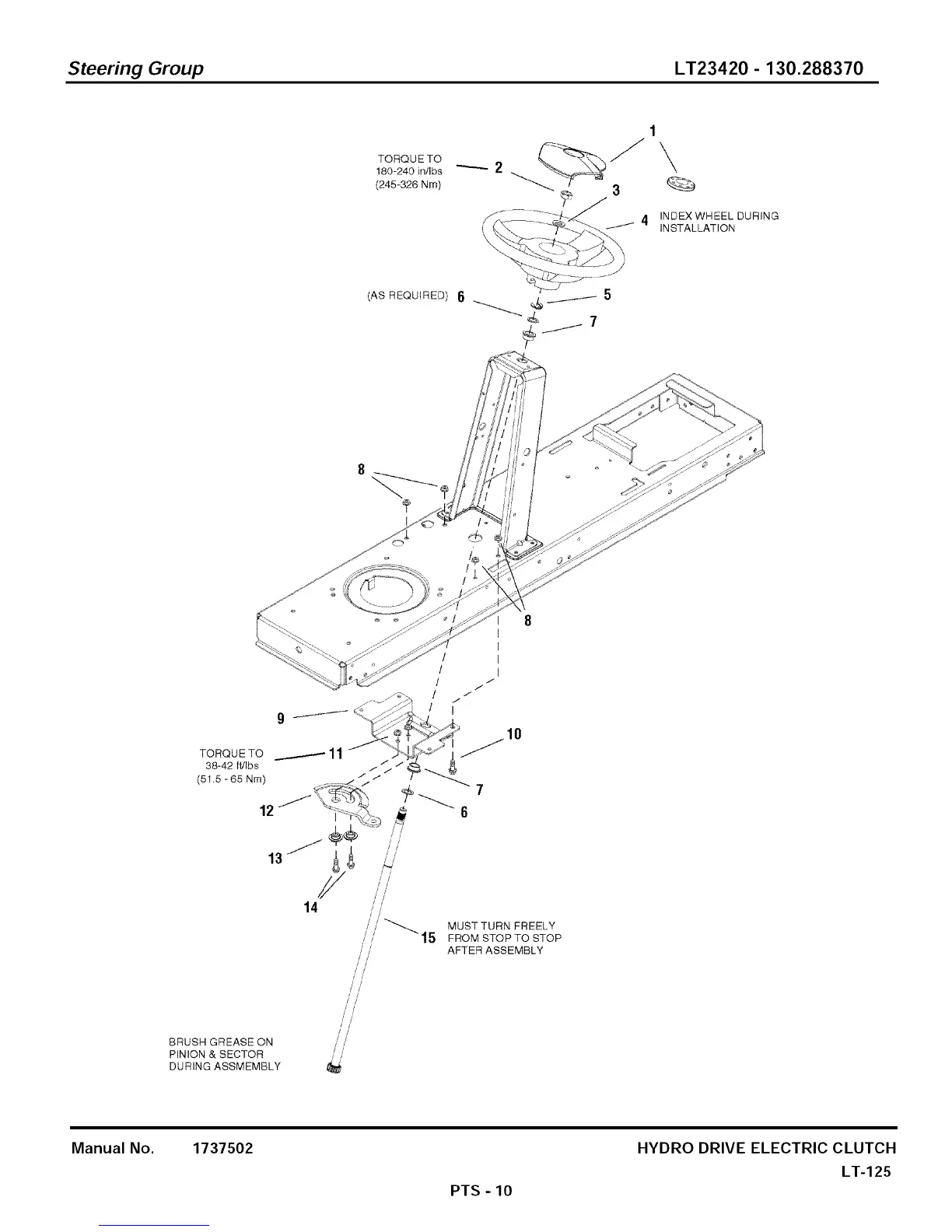

Steering Group LT23420 - 130.288370
TORQUE TO
180-240 inilbs
(245*326 Nm)
1
? a
4 INDEXWHEEL DURING
{ INSTALLATION
\
(AS REQUIRED) 6
8
?
TORQUE TO
38-42 fVlbs
(51,5 - 65 Nm)
12
13
BRUSH GREASE ON
PINION & SECTOR
DURING ASSMEMBLY
MUST TURN FREELY
15 FROM STOPTO STOP
AFTER ASSEMBLY
/ /
/ /
/ /
/
;/
//
Manual No. 1737502
PTS - 10
HYDRO DRIVE ELECTRIC CLUTCH
LT-125
