SECTION 5 - ELECTRICAL SYSTEM
Harness Routing

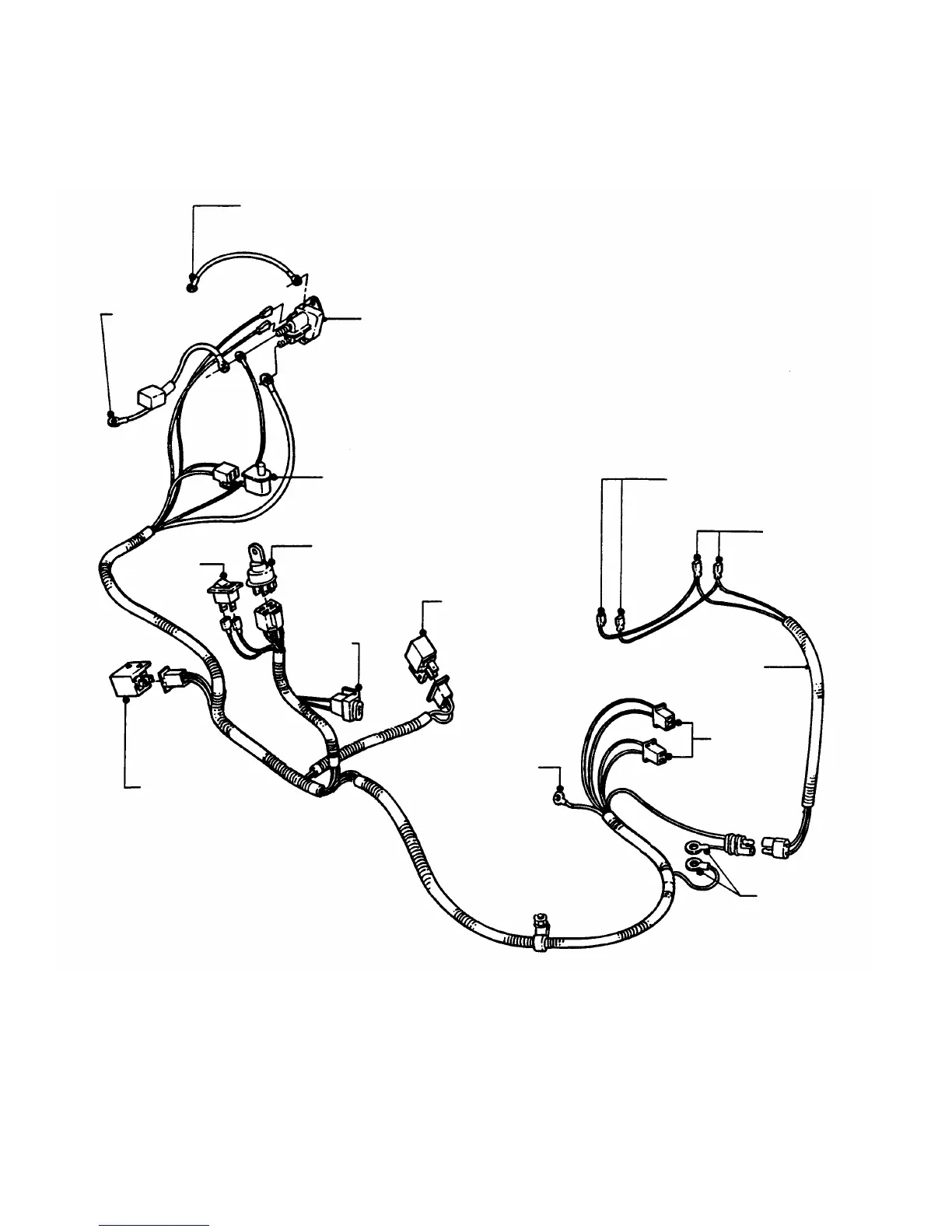

Figure 5.1 illustrates typical harness routing on all the Series D Lawn Tractors. Use this when locating various electrical
components.
FIGURE 5.1
TO BATTERY
NEGATIVE (-)
TERMINAL
TO BATTERY
POSITIVE (+)
TERMINAL
SOLENOID
(UNDER SEAT)
SEAT SWITCH
IGNITION SWITCH
HEADLIGHT
SWITCH
20 AMP
FUSE
PARK
BRAKE
SWITCH
TO R.H.
HEADLIGHT
TO L.H.
HEADLIGHT
HEADLIGHT
HARNESS
TO STARTER
BLADE
ENGAGEMENT
LEVER SWITCH
TO
ENGINE
HARNESS
GROUND TO
ENGINE
