Snapper LT145H33FBV, LT145H38FBV

33
SECTION 5 - ELECTRICAL SYSTEM
SCHEMATICS

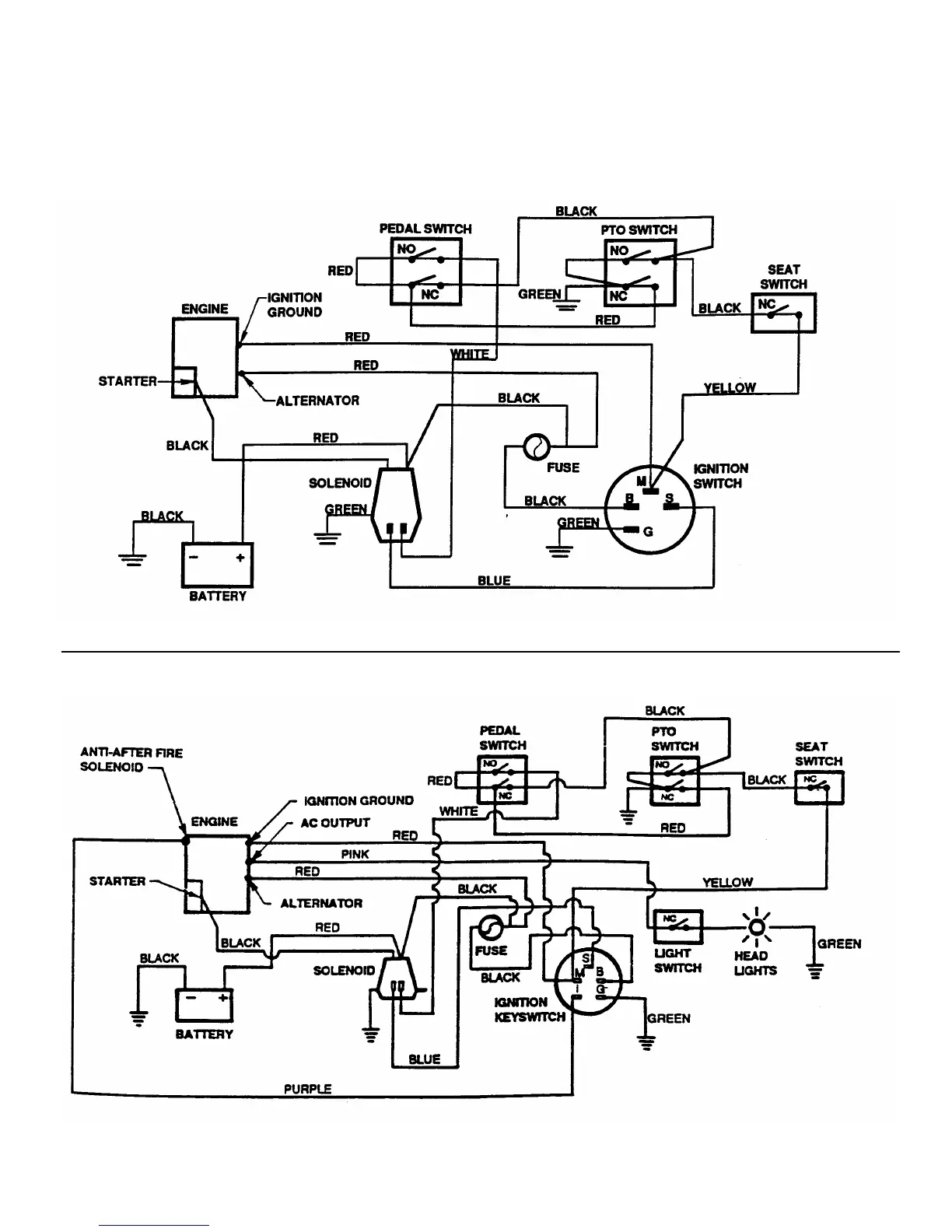

The schematics below, Figure 5.2 & Figure 5.3 represent models with and without headlights.
BRIGGS & STRATTON WITHOUT LIGHTS
FIGURE 5.2
BRIGGS & STRATTON WITH LIGHTS
FIGURE 5.3
