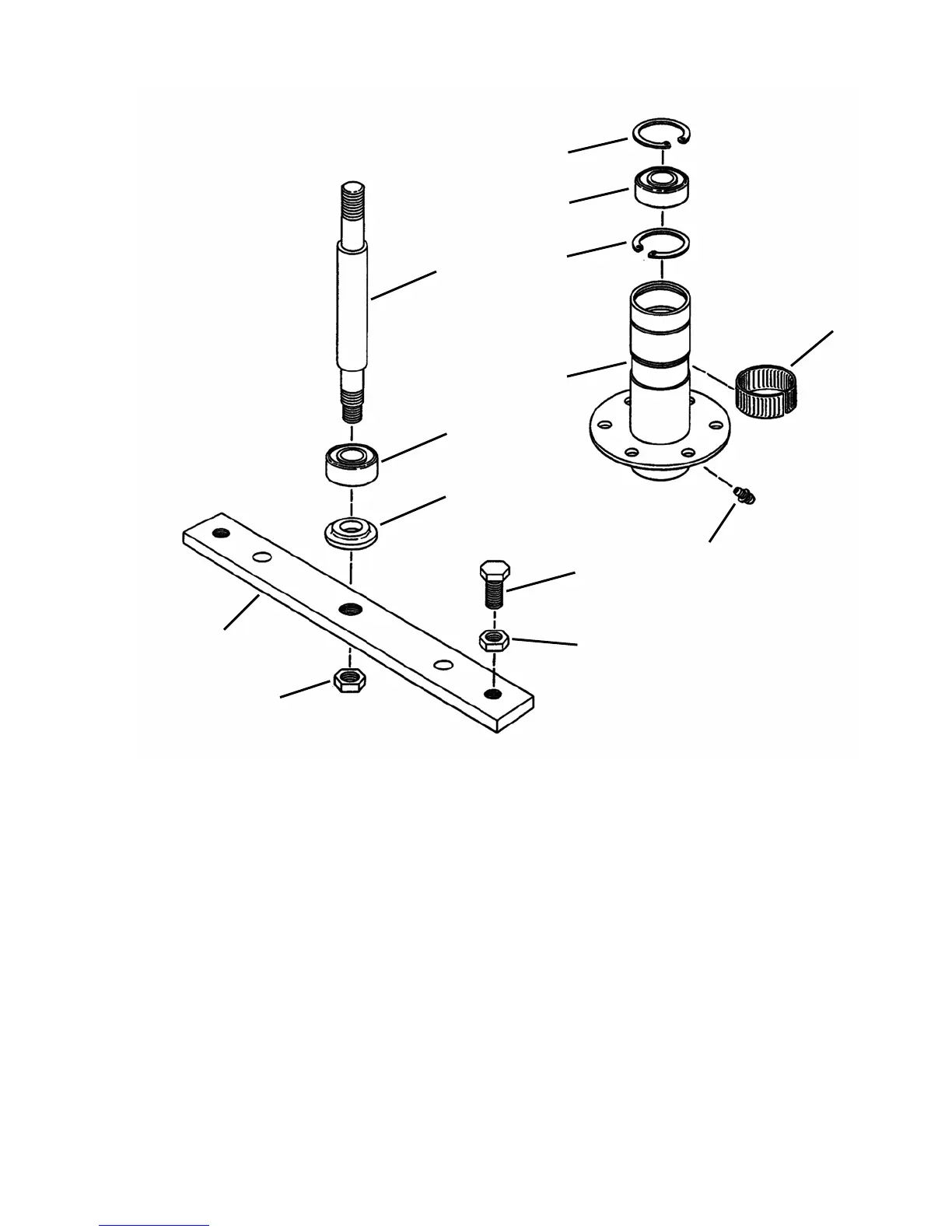

SPINDLE - 33” CUTTING DECK
ITEM PART NO. DESCRIPTION
1 5-2917 ASSEMBLY, Spindle Housing, 33” Cutting Deck
(Includes Items 2 thru 11)
2 1-2491 RING, Retaining (2)
3 1-3313 BEARING, Spindle (2)
4 5-2294 HOUSING, Spindle (Includes item 5)
5 1-0817 FITTING, Lube
6 9-0491 SCREW, 1/2-20 x 1-1/4” Hex Head Cap, Grade 5 (2)
7 9-1939 NUT, 1/2-20 Hex Jam (2)
8 9-0356 NUT, 5/8-18 Hex Center Lock Jam
9 3-7751 HOLDER, Blade
10 1-4407 WASHER, Spindle
11 2-4687 SPINDLE (7.54” overall length)
12 1-2670 RING, Tolerance
MANUAL No. 06448
