Snapper LT145H33GBV Parts Manual

27

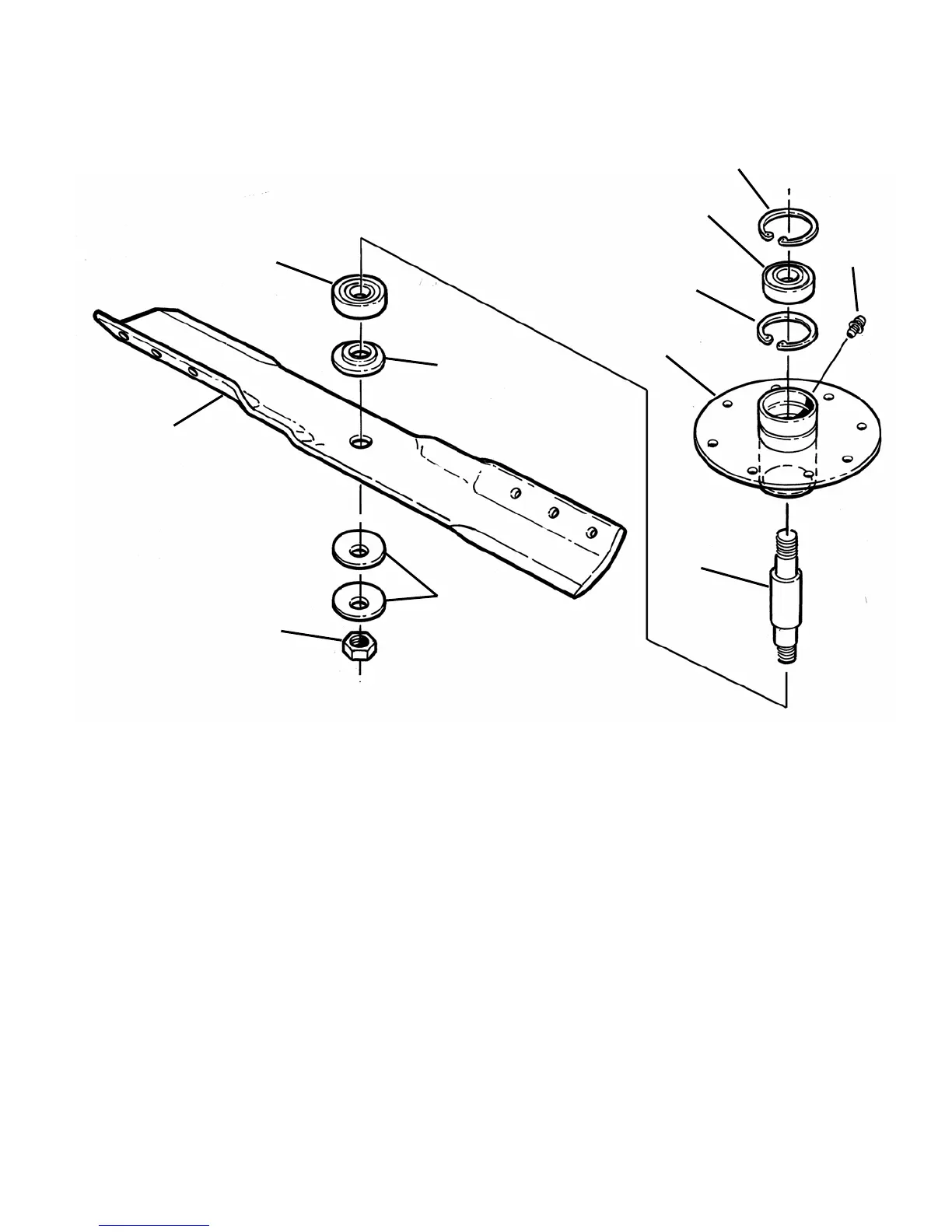

SPINDLE - 38” CUTTING DECK
ITEM PART NO. DESCRIPTION
-- 5-8357 ASSEMBLY, Spindle Housing, 38” Cutting Deck
(Includes items 2 thru 9)
1 1-0817 FITTING, Lube
2 1-2491 RING, Retaining (2)
3 1-3313 BEARING, Spindle (2)
4 5-8356 HOUSING, Spindle
5 7-2537 SHAFT, Spindle (7.181” overall length)
6 7-2109 WASHER, Spindle
7 2-4467 WASHER, Belleville, 19/32” I.D. x 1-3/4” O.D. (2)
8 9-1633 NUT, 9/16-18 Hex Jam
9 4-2998 BLADE, 19”
MANUAL No. 06448
2
9
8
4
3
5
1
2
3
7
6
