Snapper LT145H33GBV Parts Manual

34

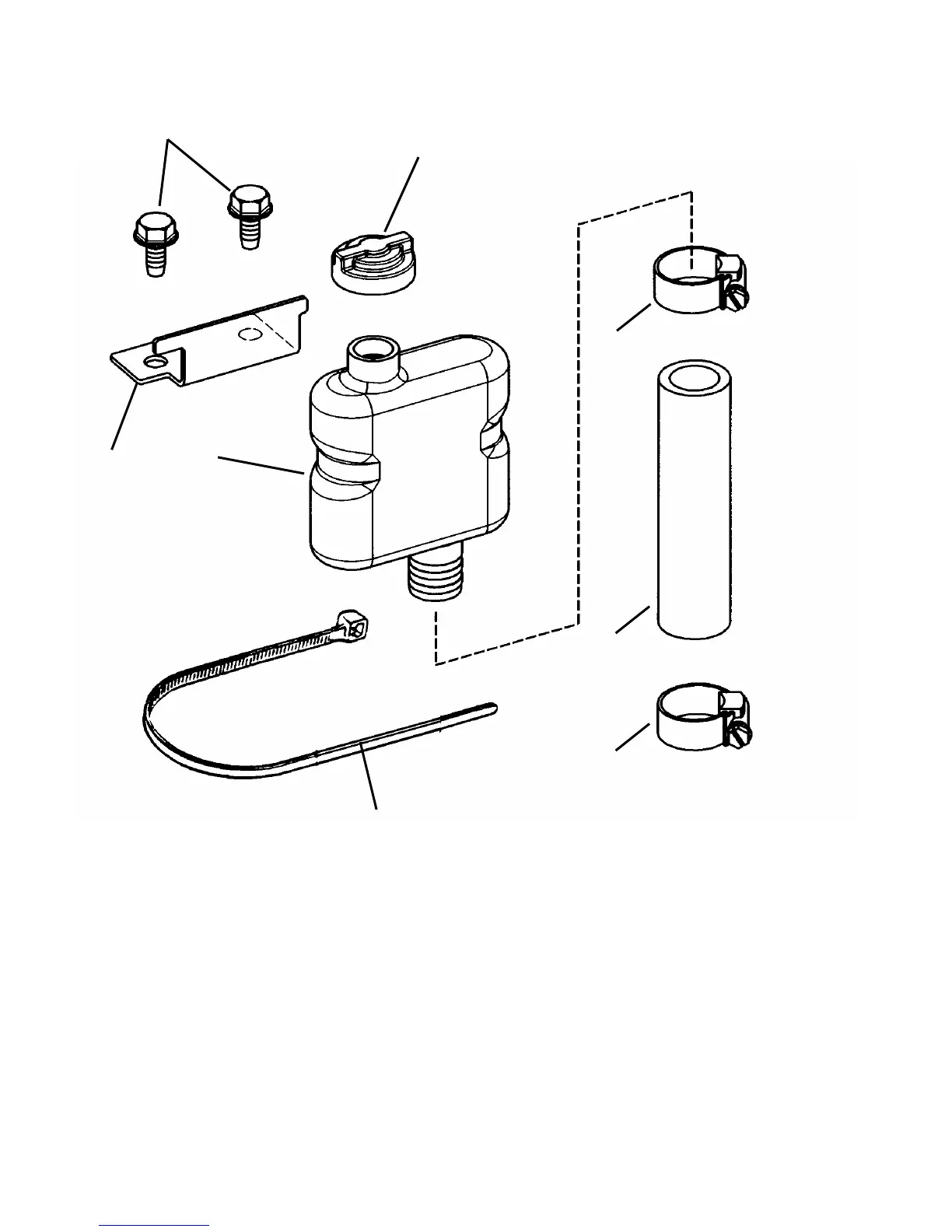

HYDRO RESERVOIR ASSEMBLY
ITEM PART NO. DESCRIPTION
1 7-2739 BRACKET, Reservoir Mounting
2 7-2736 RESERVOIR, Expansion
3 1-6130 CLAMP, 13/16” (2)
4 7-2901 HOSE, Hydraulic 4-1/2” Long
5 9-1431 VALVE, Vent
6 9-0858 BOLT, 5/16-18 x 1/2” Hex Washer Self-Tap (2)
7 7-2914 CABLE TIE, 9”
MANUAL No. 06448
4
3
7
2
1
5
6
3
