SECTION 5- ELECTRICAL SYSTEM
Harness Routing

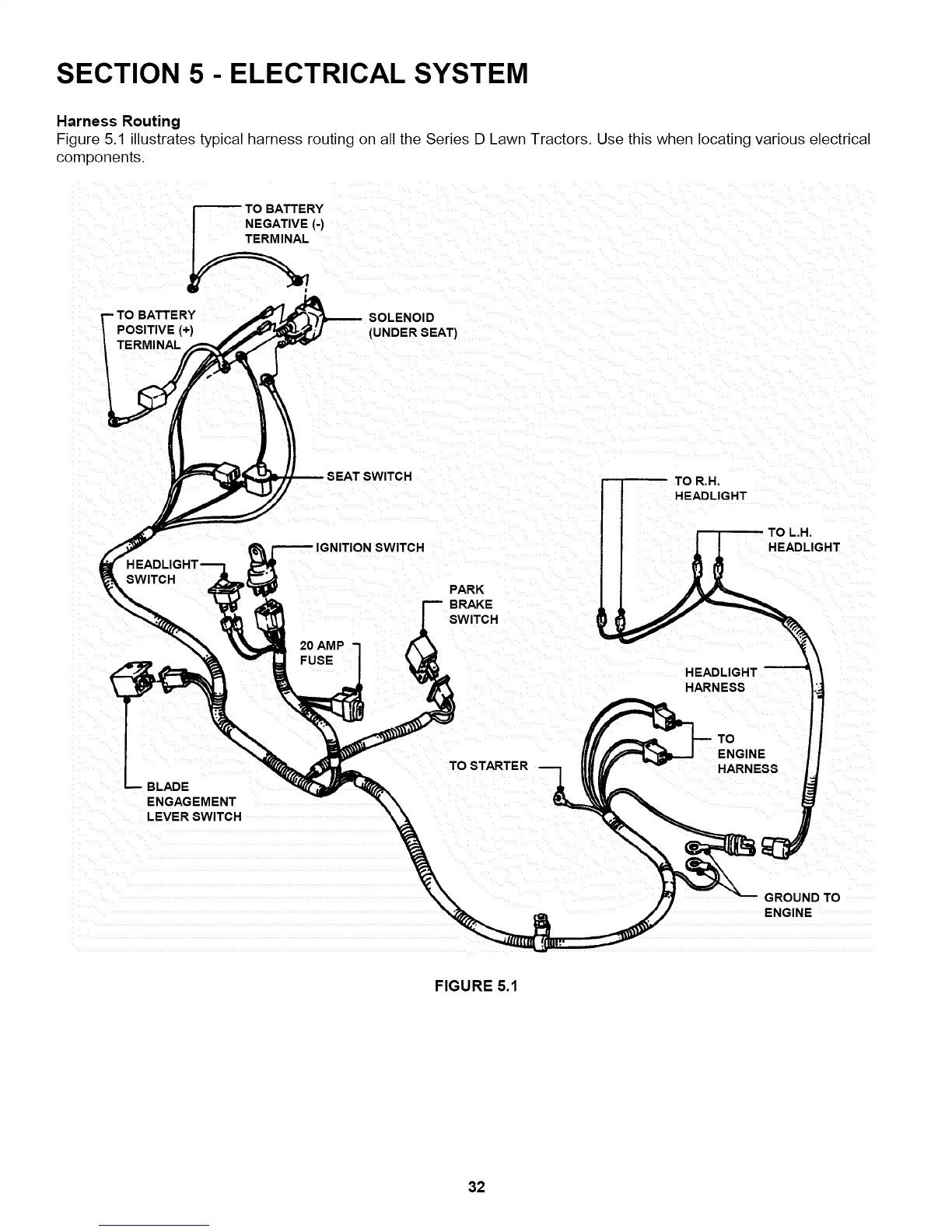

Figure 5.1 illustrates typical harness routing on all the Series D Lawn Tractors. Use this when locating various electrical
components.
'--'- TO BATTERY
NEGATIVE (-)
'-TO BATTERY SOLENOIDPOSITIVE (+) (UNDER SEAT)
i TERMINI_-
HEADLIGHT
SWITCH
BLADE
ENGAGEMENT
LEVER SWITCH
20 AMP
FUSE
SWITCH
PARK
BRAKE
SWITCH
TO STARTER
L,H,
HEADLIGHT
HARNESS "-
TO
GROUND TO
ENGINE
FIGURE 5.1
