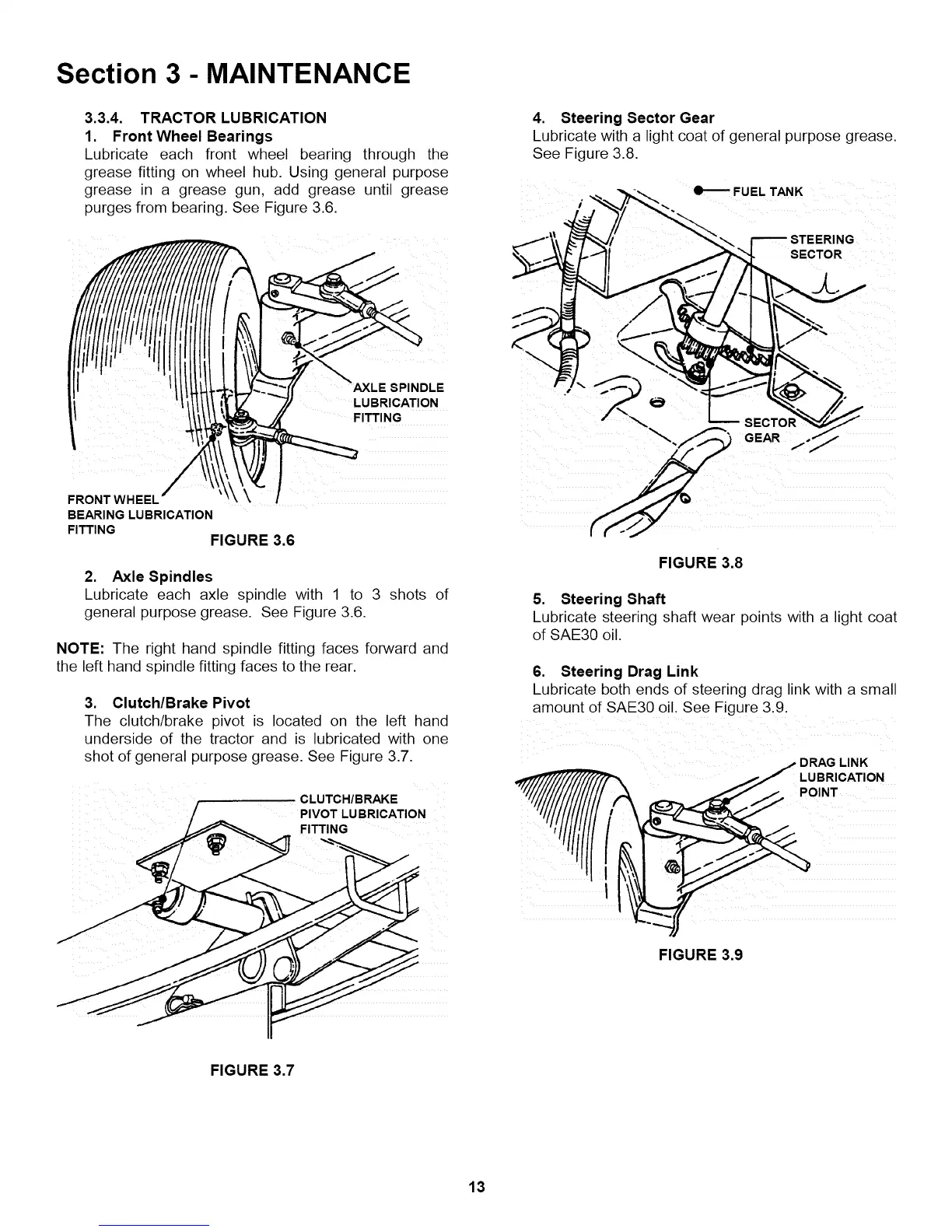

Section 3 - MAINTENANCE
3.3.4. TRACTOR LUBRICATION
1. Front Wheel Bearings
Lubricate each front wheel bearing through the
grease fitting on wheel hub. Using general purpose
grease in a grease gun, add grease until grease
purges from bearing. See Figure 3.6.
SPINDLE
LUBRICATION
FITTING
FRONT WHEEL
BEARING LUBRICATION
FITTING
FIGURE 3.6
2. Axle Spindles
Lubricate each axle spindle with 1 to 3 shots of
general purpose grease. See Figure 3.6.
NOTE: The right hand spindle fitting faces forward and
the left hand spindle fitting faces to the rear.
3. Clutch/Brake Pivot
The clutch/brake pivot is located on the left hand
underside of the tractor and is lubricated with one
shot of general purpose grease. See Figure 3.7.
. CLUTCH/BRAKE
// PIVOT LUBRICATION
FITTING
FIGURE 3.7
4. Steering Sector Gear
Lubricate with a light coat of general purpose grease.
See Figure 3.8.
FUEL TANK
SECTOR
SECTOR
GEAR
f
FIGURE 3.8
5. Steering Shaft
Lubricate steering shaft wear points with a light coat
of SAE30 oil.
6. Steering Drag Link
Lubricate both ends of steering drag link with a small
amount of SAE30 oil. See Figure 3.9.
LUBRICATION
POINT
FIGURE 3.9
13
