Section 4 - ADJUSTMENT & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance or
service with the engine or blade running. STOP blade.
STOP engine. Set brake. Remove key. Remove spark
plug wire from spark plug and secure wire away from
spark plug. Engine and components can be extremely
hot. Avoid burns by allowing engine and components
sufficient time to cool. Wear heavy leather gloves
when handling or working around cutting blades.
Blades are extremely sharp and can cause severe
injury.

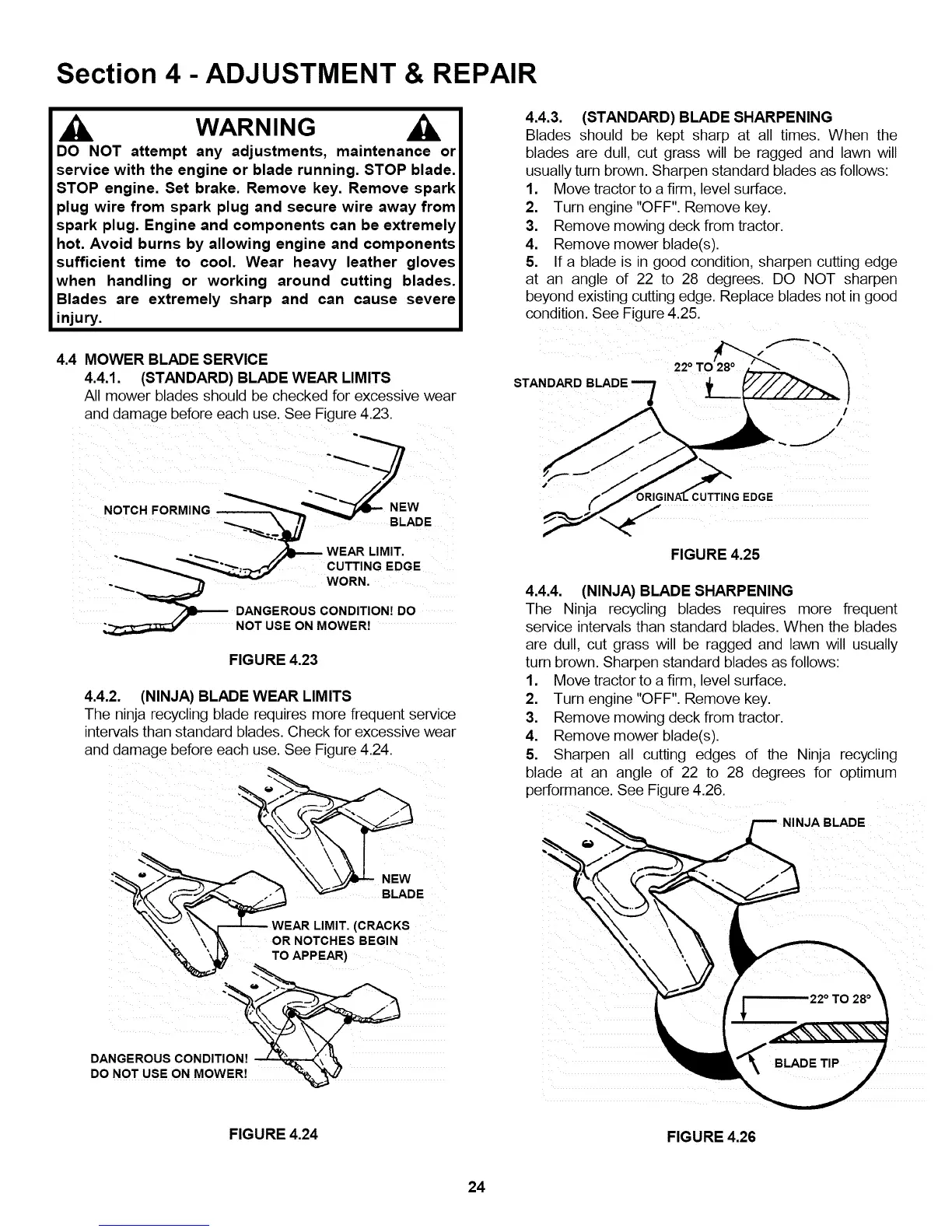

4.4 MOWER BLADE SERVICE
4.4.1. (STANDARD) BLADE WEAR LIMITS
All mower blades should be checked for excessive wear
and damage before each use. See Figure 4.23.
NOTCH FORMING "_ W
__/_ BLADE
. -'_/_"_1_ WEAR LIMIT,
___ CUTTING EDGE
.__ WORN,
DANGEROUS CONDITION! DO
NOT USE ON MOWER!
FIGURE 4.23
4.4.2. (NINJA) BLADE WEAR LIMITS
The ninja recycling blade requires more frequent service
intervals than standard blades. Check for excessive wear
and damage before each use. See Figure 4.24.
_t--L- NEW
BLADE
LIMIT. (CRACKS
OR NOTCHES BEGIN
TO APPEAR)
DANGEROUS CONDITION!
DO NOT USE ON MOWER!
4.4.3. (STANDARD) BLADE SHARPENING
Blades should be kept sharp at all times. When the
blades are dull, cut grass will be ragged and lawn will
usually turn brown. Sharpen standard blades as follows:
1. Move tractor to a firm, level surface.
2. Turn engine "OFF". Remove key.
3. Remove mowing deck from tractor.
4. Remove mower blade(s).
5. If a blade is in good condition, sharpen cutting edge
at an angle of 22 to 28 degrees. DO NOT sharpen
beyond existing cutting edge. Replace blades not in good
condition. See Figure 4.25.
STANDARD BLADE
_ CUTTING EDGE
FIGURE 4.25
4.4.4. (NINJA) BLADE SHARPENING
The Ninja recycling blades requires more frequent
service intervals than standard blades. When the blades
are dull, cut grass will be ragged and lawn will usually
turn brown. Sharpen standard blades as follows:
1. Move tractor to a firm, level surface.
2. Turn engine "OFF". Remove key.
3. Remove mowing deck from tractor.
4. Remove mower blade(s).
5. Sharpen all cutting edges of the Ninja recycling
blade at an angle of 22 to 28 degrees for optimum
performance. See Figure 4.26.
BLADE TIP
FIGURE 4.24
FIGURE 4.26
24
