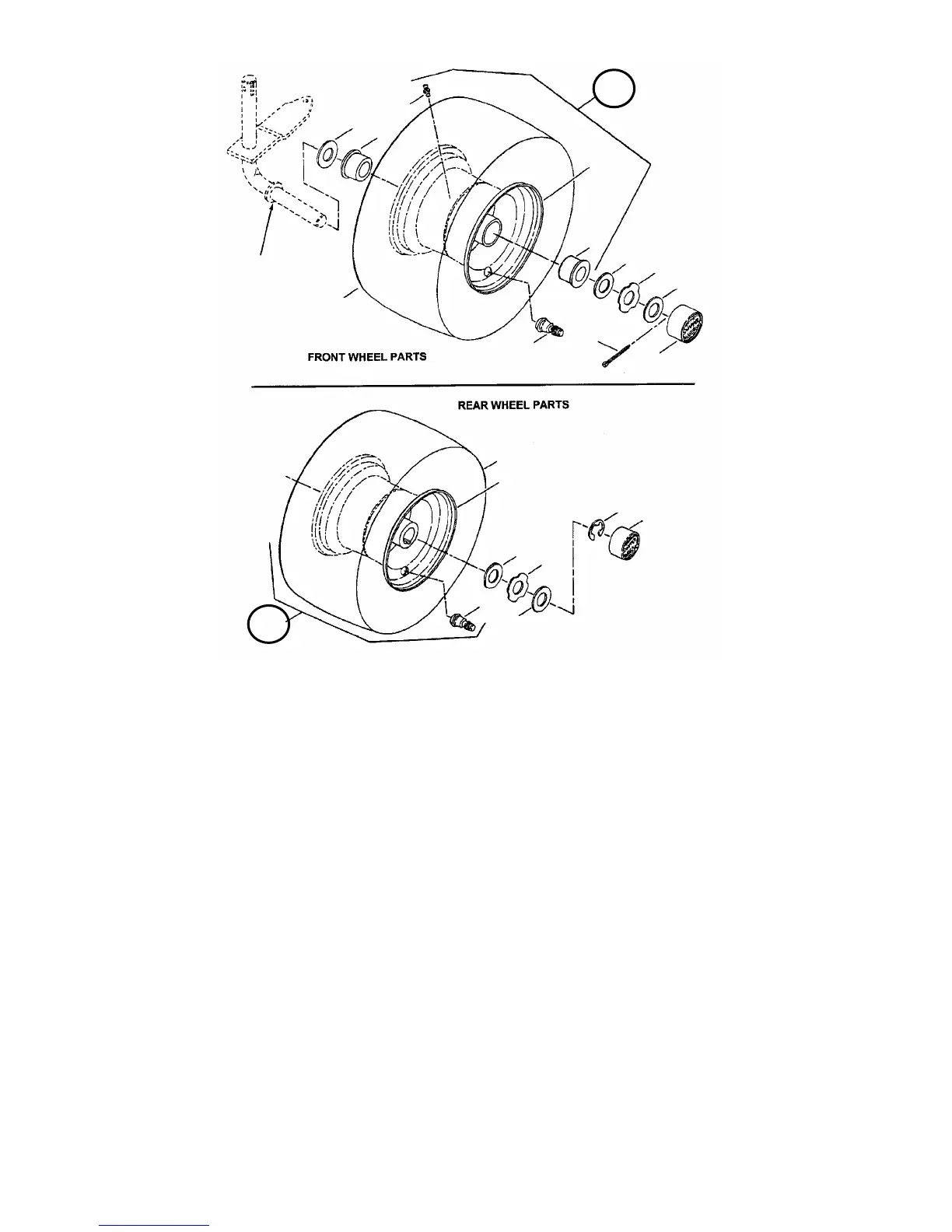

WHEELS, FRONT & REAR
ITEM PART NO. DESCRIPTION
1 5-8515 ASSEMBLY, Front Tire & Rim (Includes items 2, 3, 4, 5 & 6)
(Models: LT145H33GBV & ELT145H33GBV)
-- 5-8517 ASSEMBLY, Front Tire & Rim (Includes items 2A, 3, 4, 5 & 6)
(Model: LT145H38GBV & LT150H38GBV)
2 7-2702 TIRE, 13 x 5.00
2A 7-2704 TIRE, 15 x 6.00
3 2-2772 RIM, 6.00 x 3.50
4 1-4483 BEARING, Wheel (4)
5 1-2234 VALVE, Air (Snap-in) (4)
6 1-3876 FITTING, Lube (2)
7 3-4453 WASHER, Flat, 5/32 x 25/32” I.D. x 1-1/2” O.D. (2)
8 2-9618 WASHER, Hub-Cap Retaining (4)
9 2-9617 WASHER, Flat, 1/16 x 49/64 I.D. x 1-5/16” O.D.(8)
10 1-1022 HUB-CAP (4)
11 9-1516 COTTER-PIN, 5/32 x 1” (2)
12 2-9738 RING, External Retaining, 3/4” (2)
13 5-8518 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)
14 2-4454 RIM, 8 x 7.00
15 7-2705 TIRE, 18 x 8.50-8
MANUAL No. 06448
1
11
10
9
8
7
6
5
4
3
2, 2A
4
9
10
8
9
9
5
Spindle Weldment
See Page 10
15
14
12
13
To Next Page
