20
Section 4 - ADJUSTMENT & REPAIR
4.2.5. MOWER DECK ADJUSTMENT (LEVELNESS)
SIDE-To-SIDE (48” Decks)
Before making deck leveling adjustments, check the
tire pressure. Check tires and add or release air as
needed to bring pressure to 12 PSI in front and 12
PSI in rear tires. If tires are properly inflated and
mowing is still uneven, adjust side-to-side deck
levelness as follows:
1. Place machine on a smooth level surface.
2. Rotate outside blades so tips are pointed to the
sides of deck. See Figure 4.6. Measure the
distance from blade tips to floor. If the
measurement is within 1/8” from side-to-side, the
deck levelness is satisfactory. If the difference
from side-to-side is greater than 1/8”, continue to
next step for adjustment.
3. Place a 2 x 4 piece of wood under the front
middle portion of deck. Place one 2 x 4 piece of
wood under the rear of deck on both sides behind
the two outside blades. See Figure 4.6.
4. Lower deck down to rest on the three 2 x 4
pieces of wood. Make sure there is no deck
tension on the lift rods supporting the deck.
5. Loosen the bolt and nut that secures the front lift
arm weldment to the front lift arm. See Figure 4.7.

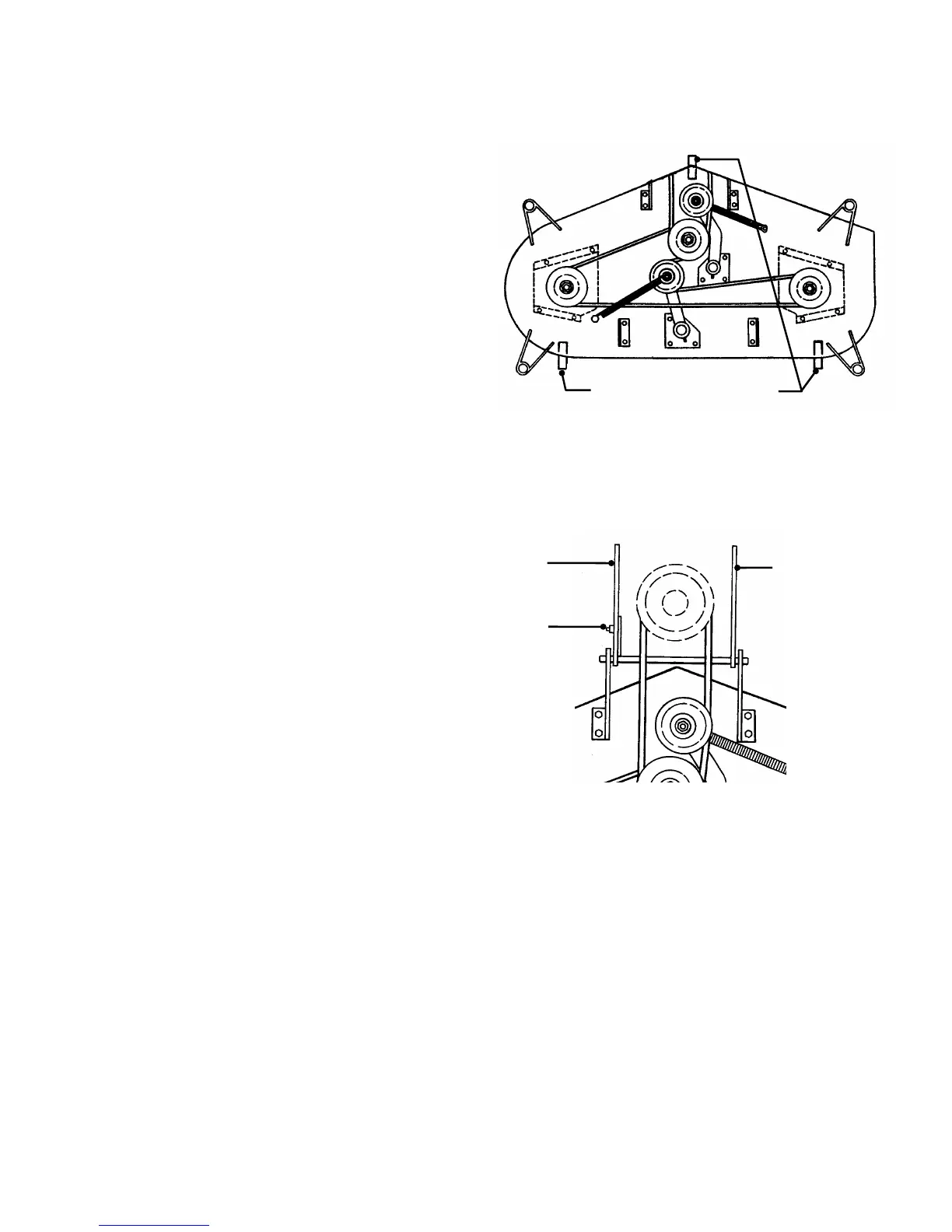

FIGURE 4.6
FIGURE 4.7
(Continued On Next Page)
PLACE THREE 2 X 4 UNDER
FRONT AND REAR OF DECK
TOP VIEW OF DECK
FRONT LIFT ARM
WELDMENT
LOOSEN
NUT
FRONT LIFT
ARM
TOP VIEW OF DECK
