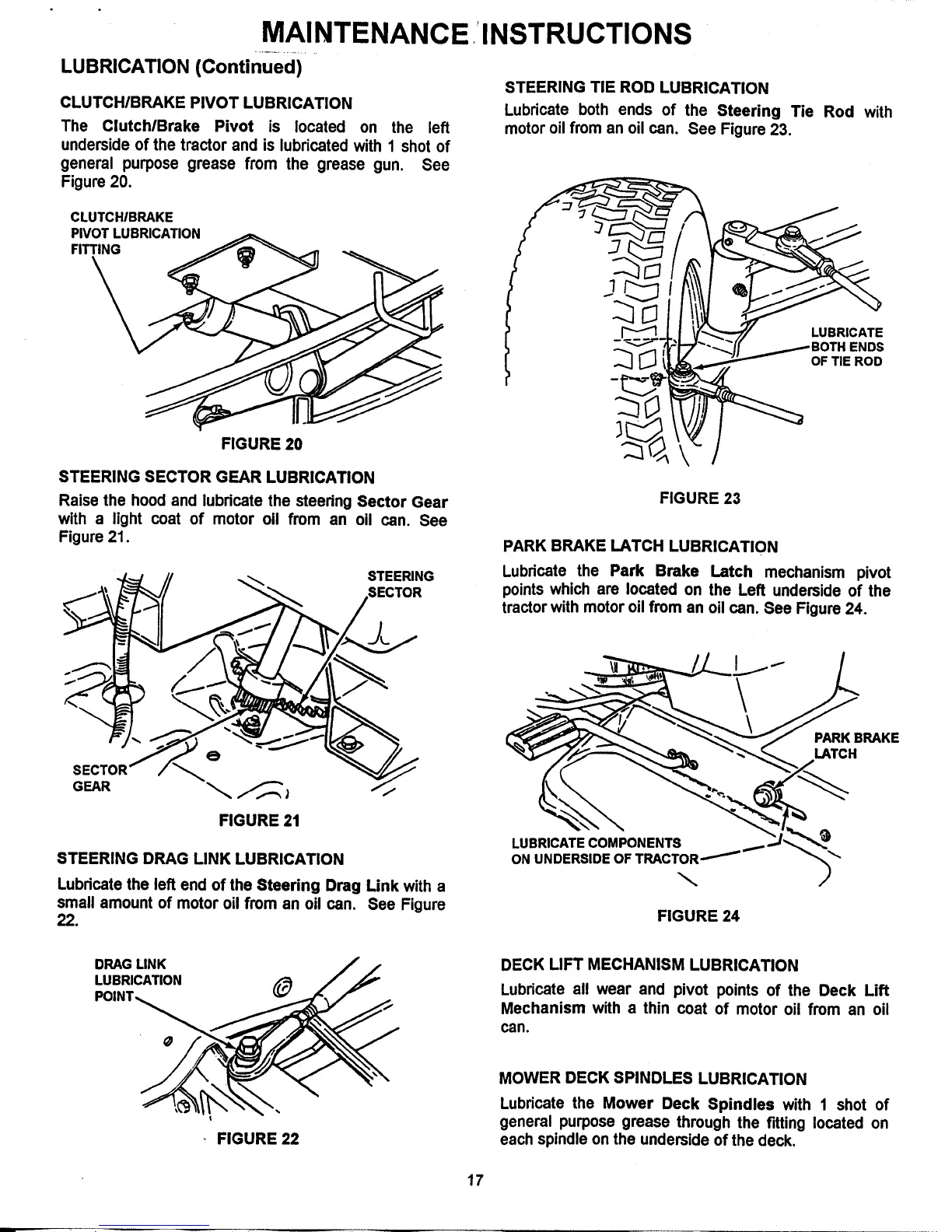

MAINTENANCE INSTRUCTIONS
LUBRICATION (Continued)
CLUTCHIBRAKE PIVOT LUBRICATION
The ClutchlBrake Pivot is located on the left
underside of the tractor and is lubricated with 1 shot of
general purpose grease from the grease gun. See
Figure 20.
CLUTCHIBRAKE
PIVOT LUBRICATION
FITTING
FIGURE 20
STEERING SECTOR GEAR LUBRICATION
Raise the hood and lubricate the steering Sector Gear
with a light coat of motor oil from an oil can. See
Figure 21.
STEERING
.SECTOR
STEERING TIE ROD LUBRICATION
Lubricate both ends of the Steering Tie Rod with
motor oil from an oil can. See Figure 23.
FIGURE 23
PARK BRAKE LATCH LUBRICATION
Lubricate the Park Brake Latch mechanism pivot
points which are located on the Left underside of the
tractor with motor oil from an oil can. See Figure 24.
PARK BRAKE
LATCH
FIGURE 21
STEERING DRAG LINK LUBRICATION
Lubricate the left end of the Steering Drag Link with a
small amount of motor oil from an oil can. See Figure
22.
LUBRICATE COMPONENTS
ON
FIGURE 24
DRAG LINK / /
LUBRICATION /_ / _"
FIGURE 22
DECK LIFT MECHANISM LUBRICATION
Lubricate all wear and pivot points of the Deck Lift
Mechanism with a thin coat of motor oil from an oil
can.
MOWER DECK SPINDLES LUBRICATION
Lubricate the Mower Deck Spindles with 1 shot of
general purpose grease through the fitting located on
each spindle on the underside of the deck.
17
