Snapper LT23460AWS - Page 31

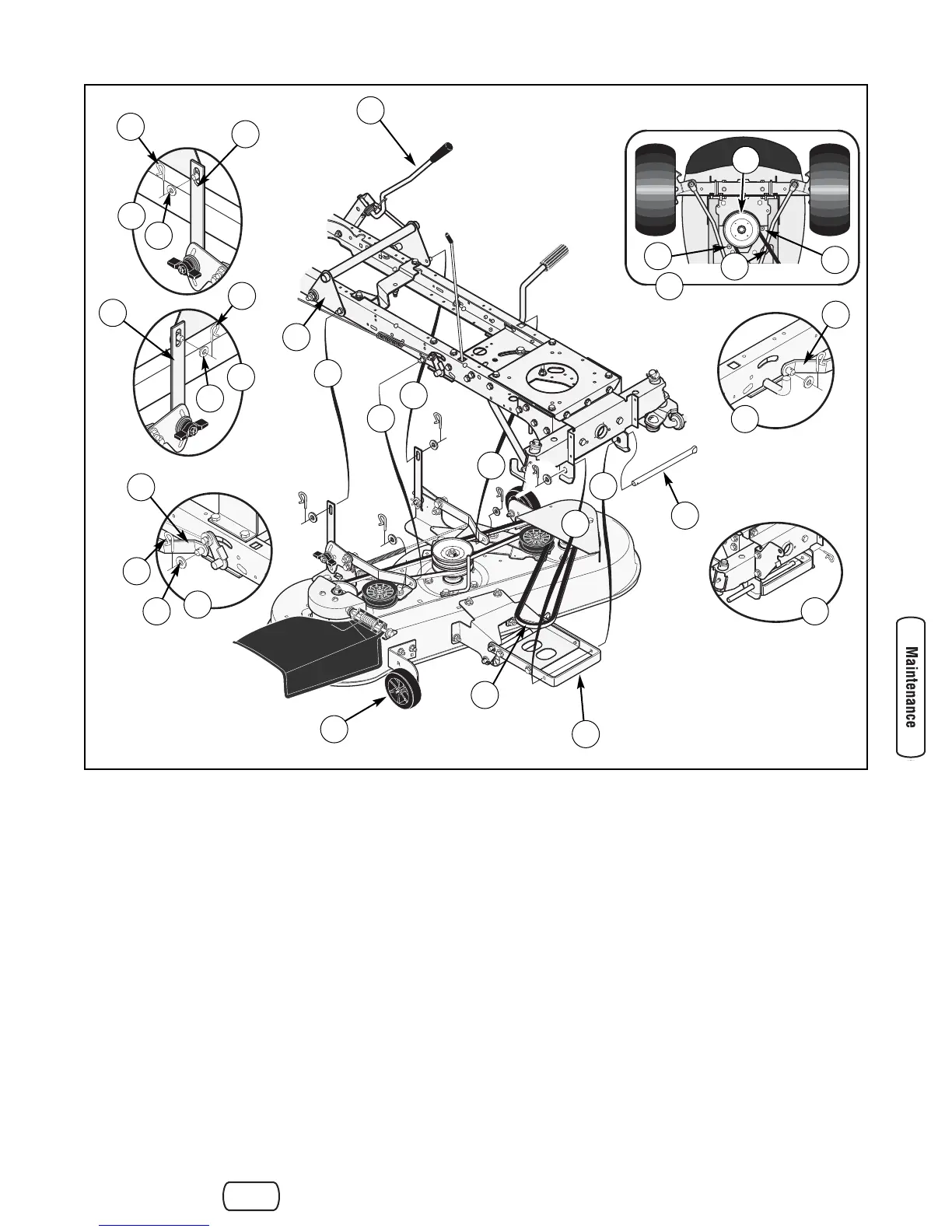

Figure 31: Mower deck assembly
A - View A
B - View B
C - View C
D - View D
E - View E
F - View F
G - Not Used
H - Suspension link
I - Adjuster arm
J - Deck lift lever
K - Lifter assembly
L - Gauge wheel
M - Not Used
N - Mower drive belt
O - Front hanger
P - Hanger rod
Q - Adjuster arm
R - Belt guide (Not on some models)
S - Mower driver belt
T - Belt guide (Not on some models)
U - Clutch pulley
