WARNING
DONOTattempt any maintenance,adjustments or service
with engine and blade running. STOPengine and blade.
Disconnectspark plug wire and secure away from spark
plug. Engineand components are HOT.Avoid serious
burns, allow sufficient time for all components to cool.

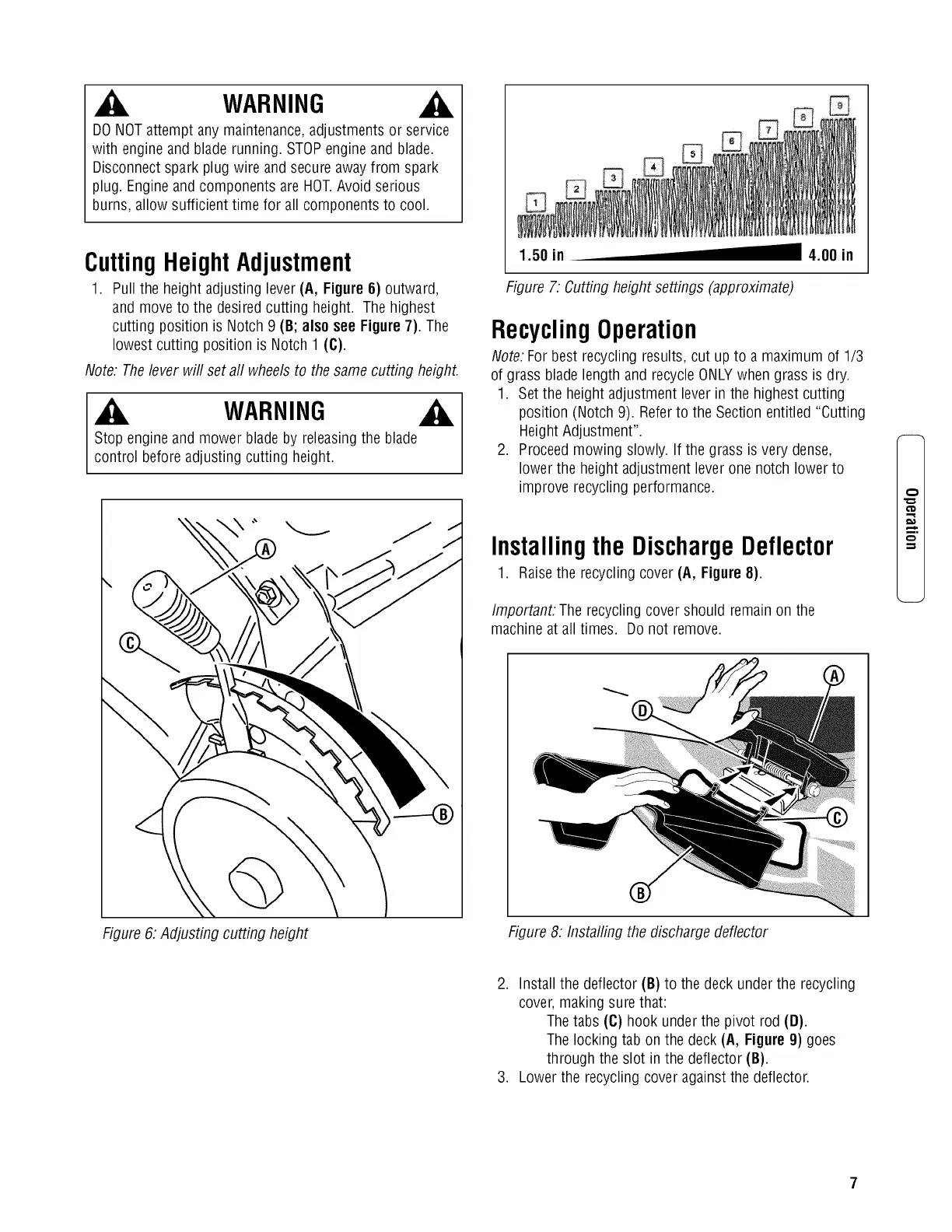

CuttingHeightAdjustment
1. Pull the height adjusting lever (A, Figure 6) outward,
and moveto the desired cutting height. The highest
cutting position is Notch 9 (B; also see Figure 7). The
lowest cutting position is Notch 1 (C).
Note: Thelever will set aft wheels to the same cutting height.
WARNING
Stop engineand mower blade by releasing the blade
control before adjusting cutting height.
1.50 in _ 4.00 in
Figure7. Cutting height settings (approximate)
RecyclingOperation
Note:For best recycling results, cut up to a maximum of 1/3
of grass blade length and recycleONLYwhen grass is dry.
1. Setthe height adjustment leverin the highest cutting
position (Notch 9). Referto the Section entitled "Cutting
HeightAdjustment".
2. Proceedmowing slowly. If the grass is very dense,
lower the height adjustment lever one notch lower to
improve recycling performance.
Installingthe DischargeDeflector
1. Raisethe recycling cover (A, Figure 8).
Important. The recyclingcover should remain on the
machine at all times. Donot remove.
m.
Figure6: Adjusting cutting height
Figure8: Installing the discharge deflector
2. Install the deflector (B) to the deck underthe recycling
cover,making sure that:
Thetabs (C) hook under the pivot rod (D).
Thelocking tab on the deck (A, Figure 9) goes
through the slot in the deflector (B).
3. Lower the recycling cover against the deflector.
