WARNING
DONOTattempt any maintenance,adjustments or service
with engine and blade running. STOPengine and blade.
Disconnectspark plug wire and secure away from spark
plug. Engineand components are HOT.Avoid serious
burns, allow sufficient time for all components to cool.

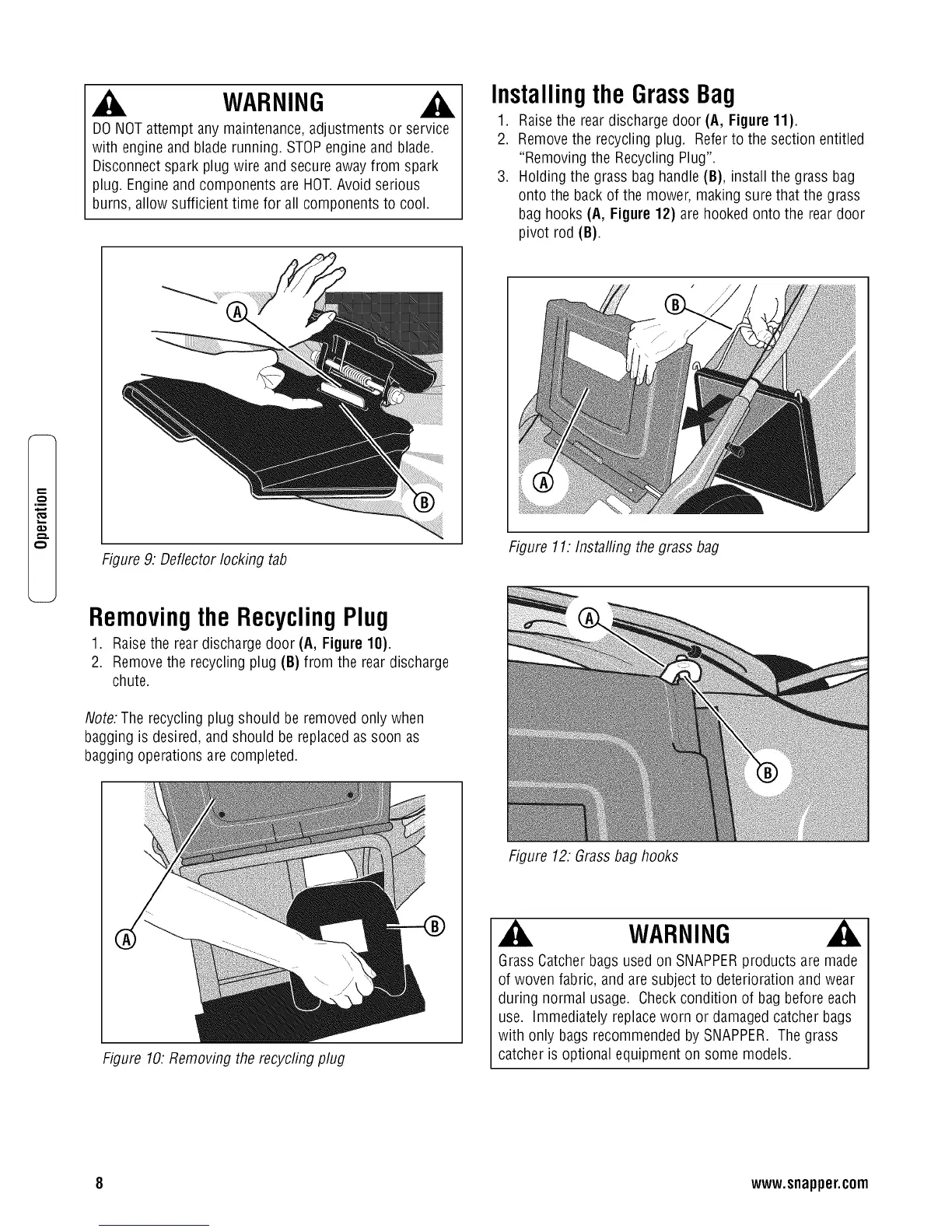

Installingthe GrassBag
1. Raisethe rear discharge door (A, Figure 11).
2. Removethe recycling plug. Referto the section entitled
"Removing the Recycling Plug".
3. Holding the grass bag handle (B), install the grass bag
onto the back of the mower, making sure that the grass
bag hooks (A, Figure 12) are hooked onto the rear door
pivot rod (B).
,w
Figure9: Deflector locking tab
Figure 11. Installing thegrass bag
RemovingtheRecyclingPlug
1. Raisethe rear discharge door (A, Figure 10).
2. Remove the recycling plug (B) from the rear discharge
chute.
Note.The recycling plug should be removed only when
bagging is desired, and should be replaced as soon as
bagging operations are completed.
Figure 10.Removing the recycling plug
Figure 12. Grassbag hooks
WARNING
Grass Catcherbags used on SNAPPERproducts are made
of woven fabric, and are subject to deterioration and wear
during normal usage. Checkcondition of bag before each
use. Immediately replace worn or damagedcatcherbags
with only bags recommendedby SNAPPER.The grass
catcher is optional equipment on some models.
8 www.snapper.com
