17
SPARK PLUGS
Replace spark plugs at the beginning of each mowing
season or after every 100 hours of operation, whichever
occurs fi rst. Spark plug type and gap setting are shown
in “PROD UCT SPECIFICATIONS” section of this manual.
CLEAN AIR SCREEN
The air screen is over the air intake blower located on top
of engine. The air screen must be kept free of dirt and
chaff to prevent engine dam age from overheating. Clean
with a wire brush or compressed air to re move dirt and
stubborn dried gum fi bers.
CLAMP
FUEL FILTER
CLAMP
Fig. 20
MAINTENANCE
MUFFLER
Inspect and replace corroded muffl er and spark arrester (if
equipped) as it could create a fi re hazard and/or damage.
IN-LINE FUEL FILTER (See Fig. 20)
The fuel fi lter should be replaced once each season. If fuel
fi lter becomes clogged, ob struct ing fuel fl ow to car bu re tor,
re place ment is re quired.
• With engine cool, remove fi lter and plug fuel line sec tions.
• Place new fuel fi lter in position in fuel line with arrow
pointing towards carburetor.
• Be sure there are no fuel line leaks and clamps are
properly positioned.
• Immediately wipe up any spilled gasoline.
Fig. 21
• Keep fi nished surfaces and wheels free of all gasoline,
oil, etc.
• Protect painted surfaces with automotive type wax.
Except for the washout port (if equipped), we do not
recommend using a garden hose or pressure washer to
clean the outside of your tractor unless the engine and
transmission are covered to keep water out. Water in
engine or transmission will shorten the useful life of your
tractor. Use compressed air or a leaf blower to remove
grass, leaves and trash from outside tractor and mower.
CLEANING
• Clean engine, battery, seat, fi nish, etc. of all foreign
matter.
• Clean debris from steering plate. Debris can restrict
clutch/brake pedal shaft movement, causing belt slip
and loss of drive. (See Fig. 21)
CAUTION: Avoid all pinch points and
movable parts.
CLUTCH/BRAKE PEDAL
STEERING
PLATE
STEERING SYSTEM, DASH, FENDER AND MOWER NOT SHOWN
CLEAN
TOP SIDE

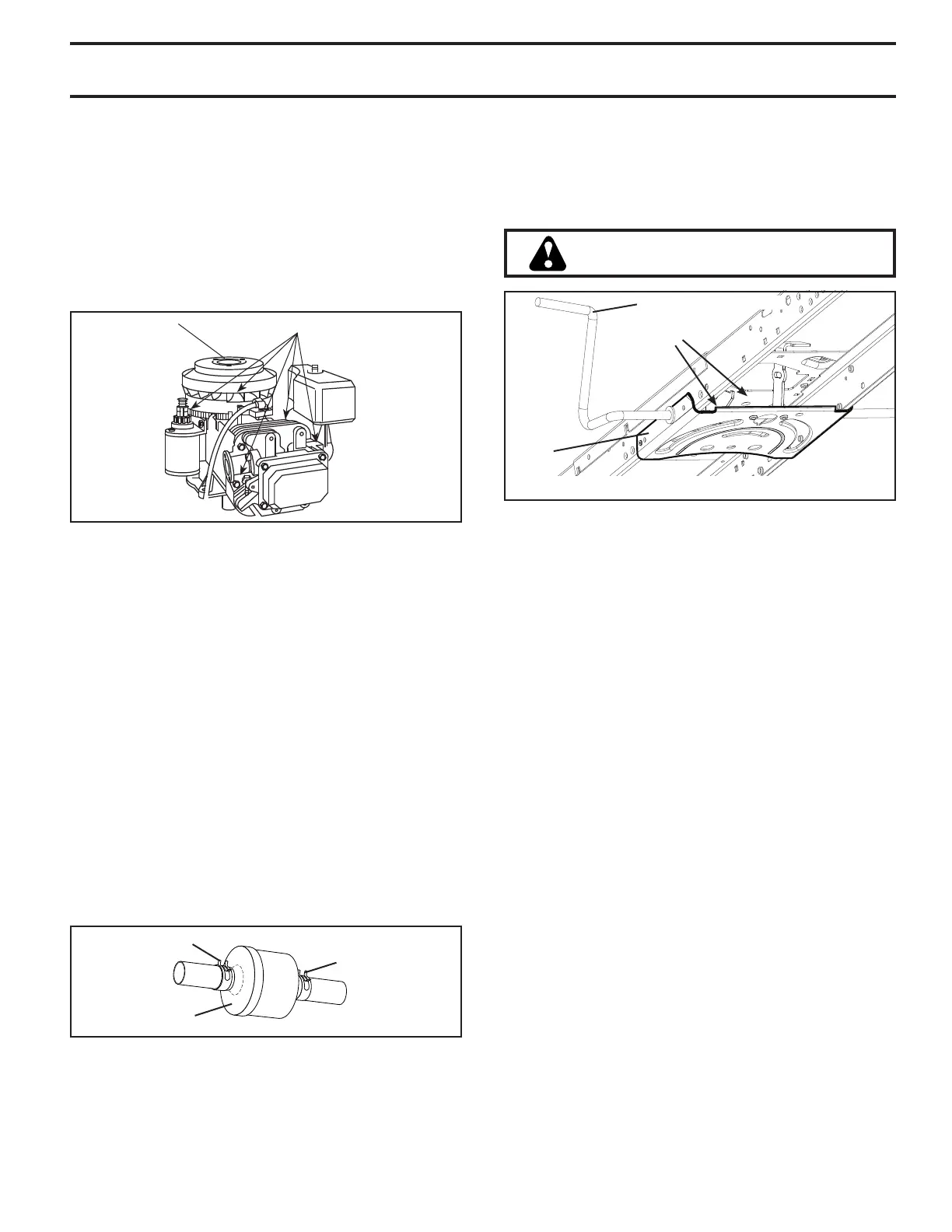

ENGINE COOLING SYSTEM (See Fig. 19)
Debris may clog the engine's air cooling system. Remove
blower housing and clean the area shown to prevent over-
heating and engine damage.
CLEAN OUT CHAFF AND DEBRIS
02744
AIR SCREEN
Fig. 19
