ASSEMBLY
Fig. 4
(3)
(1)
(2)
(5)
(4)

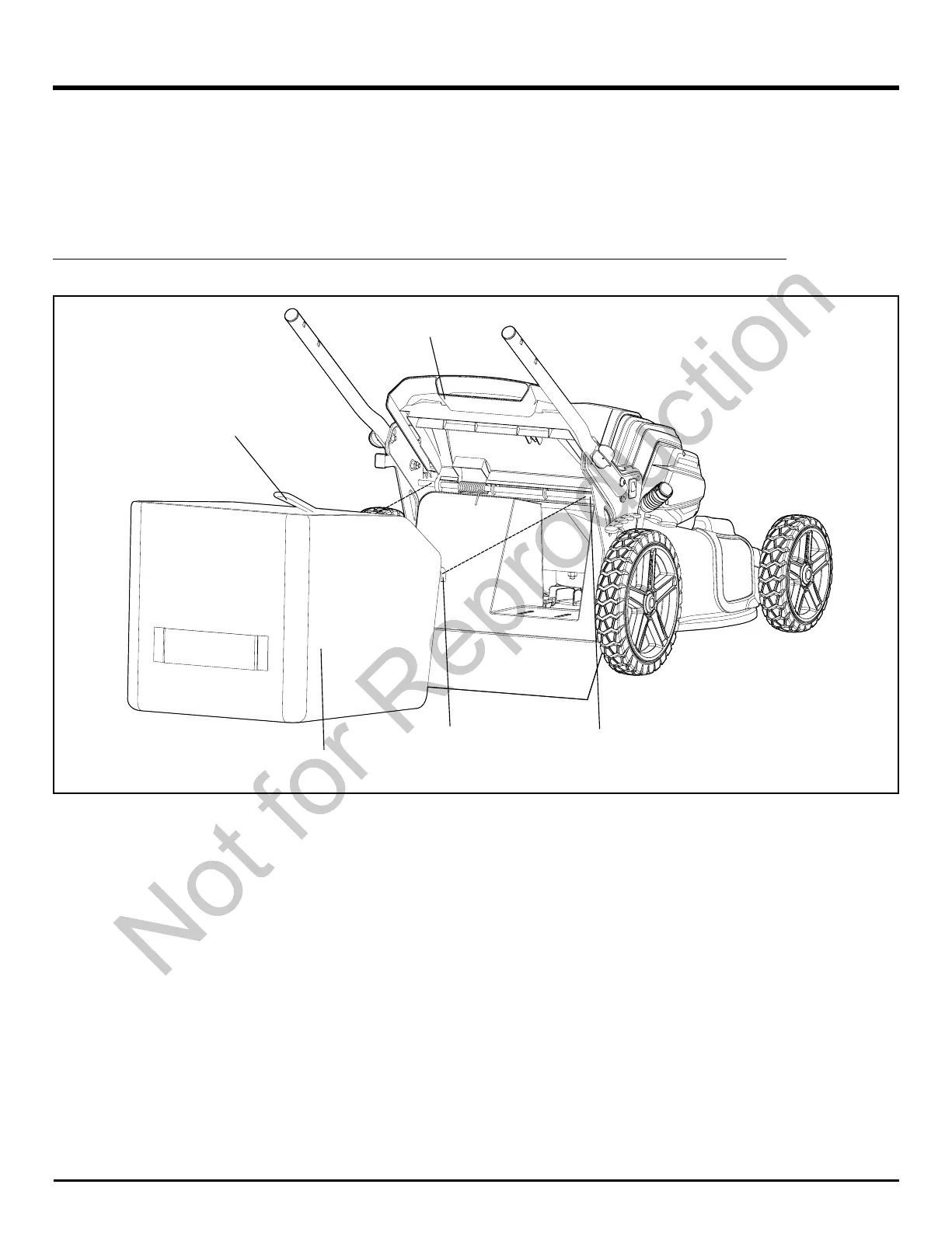

INSTALLING THE GRASS CATCHER BAG (See Figure 4)
• Lift the rear cover (1).
• Lift the grass catcher by its handle (2) and place under the rear cover so that the hooks (3) on the grass catcher (4) are
seated on the door rod (5).
• Release the rear cover. When installed correctly, the hooks on the grass catcher will extend through the openings on the
rear cover.
NOTE: When using the grass catcher, do not install either the side discharge deector or the mulching plug.
