V: 10/13/2024 - 1 ©2024 Snom Technology GmbH 7/22
Short User Manual

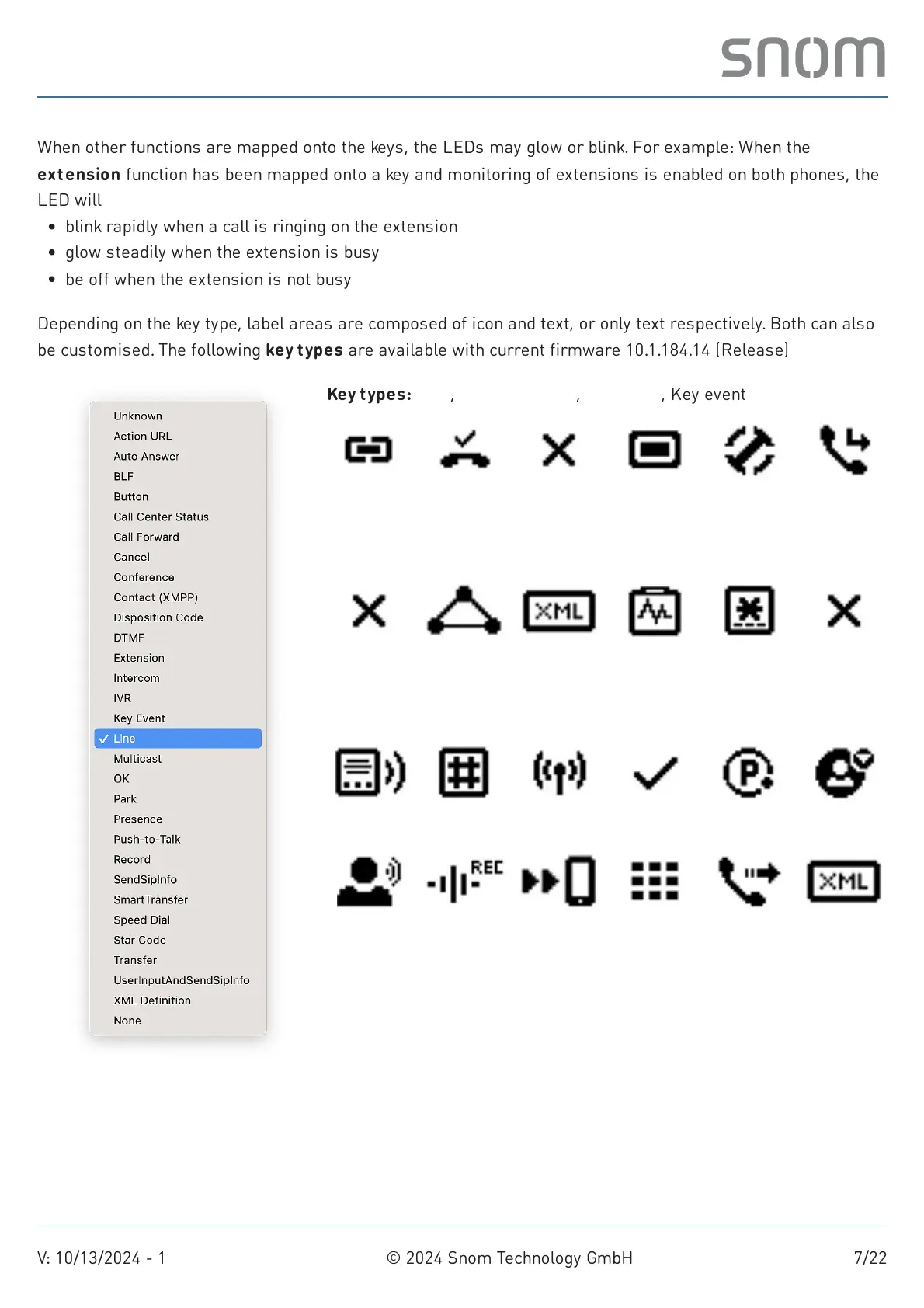

When other functions are mapped onto the keys, the LEDs may glow or blink. For example: When the
extension function has been mapped onto a key and monitoring of extensions is enabled on both phones, the
LED will
Depending on the key type, label areas are composed of icon and text, or only text respectively. Both can also
be customised. The following key types are available with current firmware 10.1.184.14 (Release)
Key types: Line, Send SIP INFO, Star Code, Key event
Action
URL
Auto
Answer
Busy
Lamp
Field
PBX
Button
Call Center
Status
Call
Forward
Cancel Conference
Contact
Presence
(XMPP)
Disposition
Code
DTMF Extension
Intercom IVR Multicast OK Park Presence
Push-to-
Talk
Record SmartTransferSpeed Dial Transfer
XML
Definition
blink rapidly when a call is ringing on the extension
glow steadily when the extension is busy
be off when the extension is not busy
