123
Model: Snorkel SR5719
Part Number: 159-0001-000
Snorkel International, LLC
2009 Roseport Road
Elwood, KS 66024

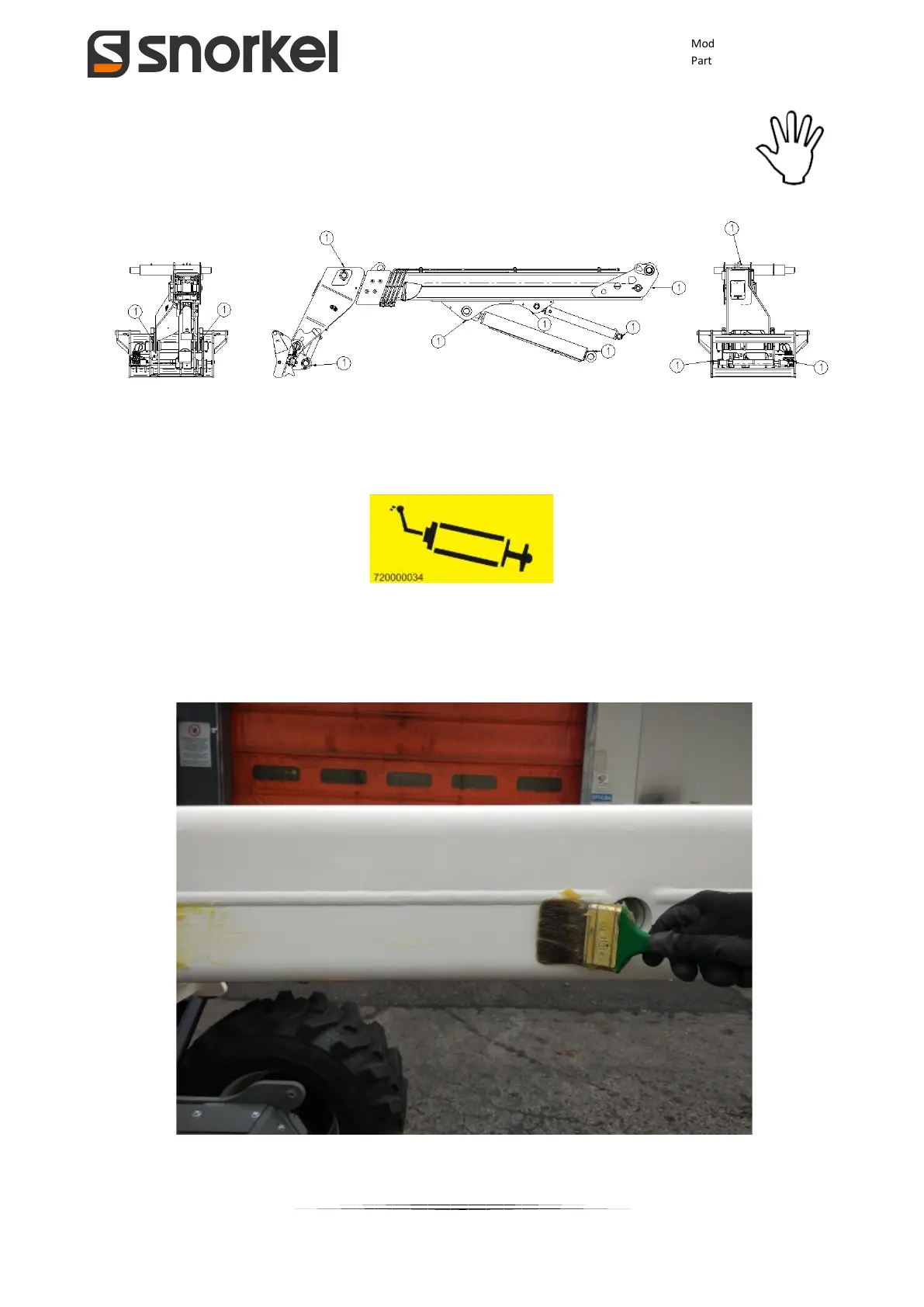

5.22 GREASING – LUBRICATION
BOOM MODEL SR5719
Points 1 indicated in the image indicate the greasers to lubricate the areas subject to friction. The different
greasers are indicated by specific stickers.
Lubricate the extended sections with the boom lowered completely and after having extended it
completely; apply lubricant on the sides of the extended sections using a brush.
