Snorkel TM12 Series User Manual

Chapter 9 – Operation
TM12 – 8210027 31
Note
Holding the steer switch down too long may result in
a sharp turn. This is especially true when driving and
steering at the same time. It may be easier to turn the
wheels in small increments using a series of quick taps
on the steer switch.
2. Set the steer wheels straight ahead after completing
a turn. The steering wheels are not self-centering.
Platform
Use care when entering and exiting the platform to avoid
slipping and/or falling. Securely close the safety chain
when the platform is occupied.
Raising and Lowering
The raise speed is proportional to the joystick position.
The farther the joystick is moved, the faster the platform
raises. There is only one lowering speed.
1. Press the platform select button (refer to Figure 9.2).
2. Squeeze and hold the interlock switch against the
joystick.
• To raise the platform, slowly pull the joystick back
until the desired speed is reached.
• To lower the platform, push the joystick forward.
Brakes
Each rear wheel is equipped with a mechanical spring-
applied, hydraulically released parking brake. When
the drive control is in neutral, a spring-activated brake
actuator presses the park brake shoe (refer to Figure 9.3)
against the wheel to prevent movement.

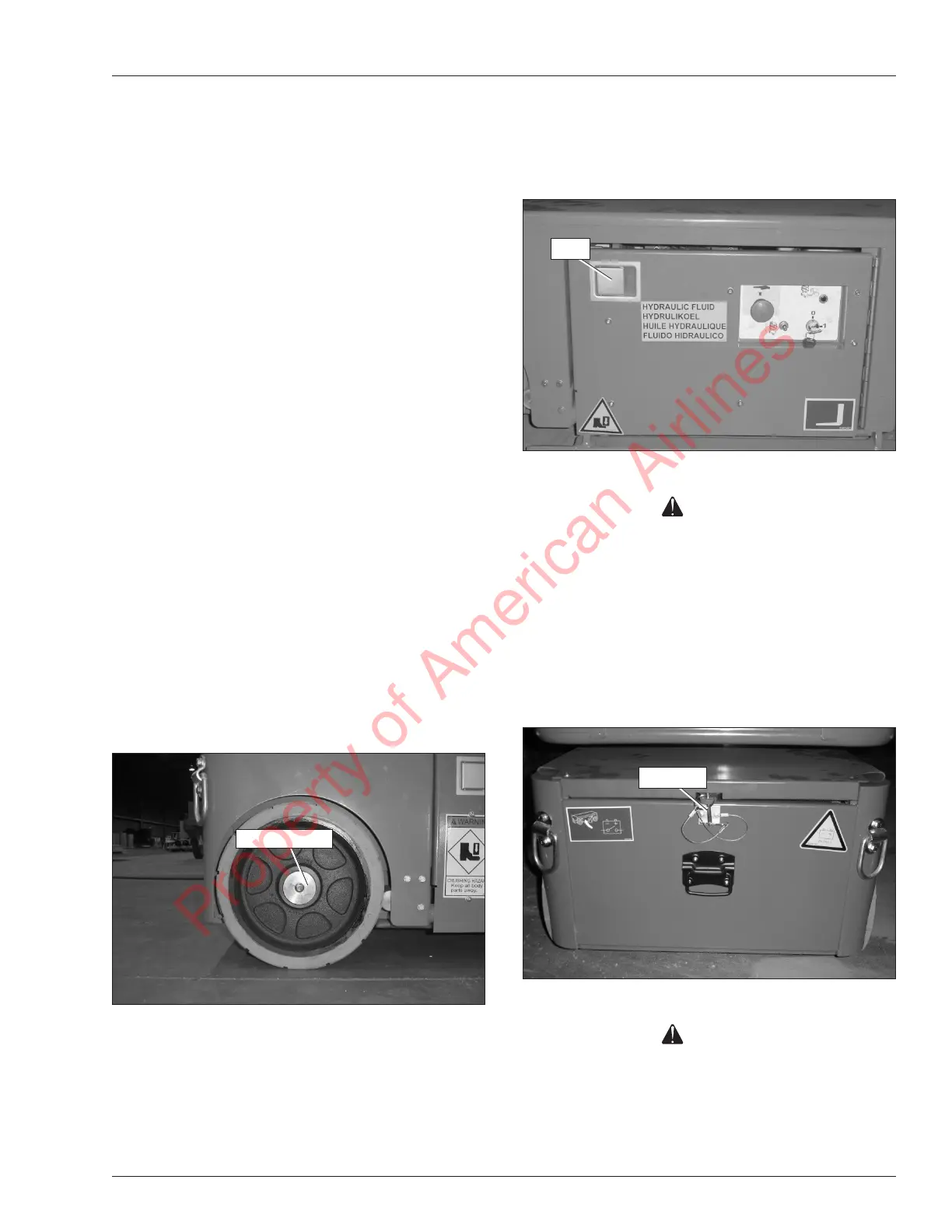

Figure 9.3 – Rear of Chassis
This system operates automatically to stop and hold
the aerial platform when the drive control is released or
power is interrupted.
Swing-Out/Slide-Out Trays
The lower controls and hydraulic components are en-
closed in a swing-out tray (refer to Figure 9.4) on the right
side of the chassis.
Figure 9.4 – Swing-Out Tray
Danger
The aerial platform can tip over if it becomes unstable.
Death or serious injury can result from a tip-over ac-
cident. Do not open the trays when the platform is
raised more than eight feet.
To open the swing-out tray, pull the latch outward and
swing the tray open.
The batteries and battery disconnect connector are en-
closed in a slide-out tray (refer to Figure 9.5) at the rear
of the chassis.
Figure 9.5 – Slide-Out Tray
Danger
The aerial platform can tip over if it becomes unstable.
Death or serious injury can result from a tip-over ac-
cident. Do not open the trays when the platform is
raised more than eight feet.
To open a tray, remove the latch pin and carefully slide
the tray outward.
Parking Brake
Latch
Latch Pin
